Metric Handles & Ferrules
Pull, Offset Pull, Slanted Pull, Folding, Bar, Fixed, Panel & Rack,
Standard Pull, Internal Thread, External Thread, Free Fall, All Position,
Two Position, Three Position, 90 Degree, 180 Degree, Handle Ferrules.
Part Numbers: (MA1002 thru MX1288)  (MED101 thru MEF160)  (M10-101 thru M14-127)






       Build Your Part #
       Material & Shape
       Plating & Finishes Select From These Metric Dimensions

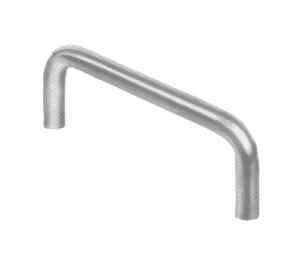

       Applicable Tolerance Pull Handle, Round, Internal Thread (MA- Series)
       Thread Depths

Select Size



Part Numbers


       All Technical Data 3mm & 3.2mm Diameter   MA1002- MA1478
       Worksheet Helper 4mm Diameter MA1481- MA1717
       Conversion Chart 5mm Diameter MA1721-MA2338
       Standard Handles 6mm & 6.3mm Diameter    MA2341- MA3778
  8mm Diameter    MA3781- MA5628


Metric Handles

9.5mm Diameter    MA5631-MA6188
10mm & 13mm Diameter    MA6191-MA7528

Pull Handle, Round, External Thread, With Shoulder (MB- Series)


5mm Diameter   MB1011- MB1487
6mm Diameter MB1482- MB1977
8mm Diameter MB2001- MB2677





Pull Handle, Round, External Thread, No Shoulder (MC- Series)


  5mm Diameter   MC1011- MC1277
  6mm Diameter MC1281- MC1607
  8mm Diameter MC1611- MC1957






Pull Handle, Oval, Internal Thread (MD- Series)


  7mm x 11mm Oval   MD1012- MD1988
  7mm x 16mm Oval MD1992- MD3858
  9mm x 16mm Oval MD3862- MD5468





Pull Handle, Rectangular, Internal Thread (ME- Series)


  5mm x 13mm Rectangular   ME1012- ME1548
  7mm x 13mm Rectangular ME1602- ME2148
  8mm x 13mm Rectangular ME2202- ME3098
  7mm x 16mm Rectangular ME3102- ME5438
  7mm x 25mm Rectangular ME5442- ME6478



Pull Handle, Half Round, Internal Thread (MF- Series)


  8mm x 16mm Half Round   MF1012- MF1728







Offset Pull Handle, Round, Internal Thread (MG- Series)


  5mm Diameter   MG1012- MG1248
  6mm Diameter MG1252- MG1608
  8mm Diameter MG1612- MG2748
  10mm Diameter MG2752- MG3488




Slanted Pull Handle, Oval, Slanted, Internal Thread (MH- Series)


  11mm x 7mm Oval   MH1012- MH1888
  16mm x 7mm Oval MH1892- MH2968
  16mm x 9mm Oval MH2972- MH3848





Slanted Pull Handle, Round, Internal Thread (MJ- Series)


  8mm Diameter   MJ1012- MJ1638
  10mm Diameter MJ1642- MJ2238






Folding Handle, Round, 90° Free Fall, External Thread (MK- Series)


  6mm Diameter   MK1012- MK1188
  8mm Diameter MK1192- MK1368
  10mm Diameter MK1372- MK1548





Folding Handle, Round, 180° All Position, External Thread (ML- Series)


  6mm Diameter   ML1012- ML1188
  8mm Diameter ML1192- ML1368
  10mm Diameter ML1372- ML1548





Folding Handle, Round, 90° Two Position, External Thread (MM- Series)


  8mm Diameter   MM1012- MM1168
  10mm Diameter MM1172- MM1808






Folding Handle, Round, 180° Three Position, External Thread (MN- Series )




6mm Diameter

   MN1012- MN1148
  8mm Diameter MN1152- MN1288
  10mm Diameter MN1292- MN1428





Folding Handle, Round, 90° Free Fall, External Thread (MO- Series)


  8mm Diameter   MO1012- MO1288
  10mm Diameter MO1292- MO1568

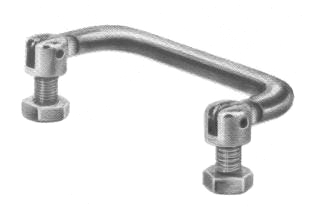

Folding Handle, Round, 180° Free Fall, External Thread (MP- Series)


  8mm Diameter   MP1012- MP1268
  10mm Diameter MP1272- MP1548






Folding Handle, Oval, 90° Two Position, External Thread (MR- Series)


  11mm x 7mm Oval   MR1012- MR1648
  12.5mm x 6.3mm Oval MR1652- MR2288
  16mm x 7mm Oval MR2292- MR2888
  16mm x 9mm Oval MR2892- MR3528

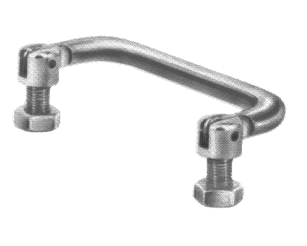

Folding Handle, Oval, 180° Three Position, External Thread (MS- Series)


  11mm x 7mm Oval   MS1012- MS1648
  12.5mm x 6.3mm Oval MS1652- MS2288
  16mm x 7mm Oval MS2292- MS3918
  16mm x 9mm Oval MS3922- MS4558

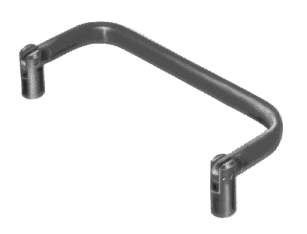

Folding Handle, Oval, 180° All Position, Internal Thread (MT- Series)


  11mm x 7mm Oval   MT1012- MT1428
  12.5mm x 6.3mm Oval MT1432- MT1938
  16mm x 7mm Oval MT1942- MT2358
  16mm x 9mm Oval MT2362- MT2778




Folding Handle, Rectangular, 180° All Position, External Thread (MV- Series)


  13mm x 5mm Rectangular   MV1012- MV2555





  Folding Handle, Rectangular, 180° All Position, Internal Thread (MW- Series)
  13mm x 5mm Rectangular   MW1012- MW1968

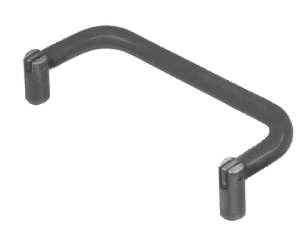

Folding Handle, Round, 90° Free Fall, Internal Thread (MX- Series)


  8mm Diameter   MX1012- MX1148
  10mm Diameter MX1152- MX1288






  Extruded Handle, Bar Handle, Black Anodized Aluminum Insert
2 Legs (MED- Series)


  8mm x 13mm Aluminum Insert   MED101- MED210







Extruded Handle, Bar Handle, Black Anodized Aluminum Insert
3 Legs (MET- Series)


  8mm x 13mm Aluminum Insert MET101- MET200







Extruded Handle, Bar Handle, Black Anodized Aluminum Insert
4 Legs (MEF- Series)


  8mm x 13mm Aluminum Insert MEF101- MEF160







Decorative Handle Ferrules


  M10-101 thru M14-127








  DIAMETER:  For Round: 3mm through 13mm / For Oval: 7mm x 11mm through 16mm x 9mm / For Rectangular: 5mm x 13mm through 7mm x 25mm / For Aluminum Extruded: 8mm x 13mm
SHAPE:  Round, Oval, Rectangular, Half-Round
STYLE:   Available in 24 different styles.  Internal Thread, External Thread, Offset, Slanted, Extruded, Extrusion, Bar, Instrumentation, Fixed, Folding (90° & 180°) Free Fall / Two and Three Positions / All position
MATERIAL:  Brass, Aluminum, Stainless Steel, and Carbon Steel upon request
OVERALL HEIGHT:  Wide variety of heights in 13mm up to 102mm
CENTER TO CENTER:  Wide variety of lengths in 19mm up to 305mm
DECORATIVE FERRULE:  Threaded and Unthreaded
FERRULE DIAMETER:  6mm through 19mm
FINISH:  Available in 28 finishes - See Chart
Handles without Plating also available
THREAD:  M2.5 through M10 /  Internal Thread- Class 6H / External Thread- Class 6G /  Thread Locking Products available
TOLERANCE:  See handles chart:  All Technical Data
Diameter: Standard commercial bar stock tolerances
HANDLES:  Unicorp Handles Line: Pull, Offset Pull, Pulls, Slanted Pull, Folding, Fixed, Panel & Rack, Standard Pulls, Offset Pulls, Slanted Pulls, Ferrules, Internal Thread, External Thread, Free Fall, All Position, Two Position, Three Position, 90 Degree, 180 Degree
HANDLE STYLES:  Handles available in round handles, oval handles, rectangular handles, half round handles, extruded handles, bar handles, fixed handles, folding handles in 24 styles, internal threaded handles, external threaded handles, offset handles, slanted handles, 90 degree handles, 180 degree handles, free fall handles, two position handles, three position handles, all position handles, handle ferrules, ferrules, instrumentation handles in 28 finishes - brass handles, aluminum handles, stainless steel handles, carbon steel handles.
HANDLE SIZES:  Round Handles: 1/8" thru ½", 3mm thru 13mm
Oval Handles: 9/32" x 7/16" thru 5/8" x 3/8", 7mm x 11mm thru 16mm x 9mm
Rectangular Handles: 3/16" x 1/2" thru 1/4" x ½", 5mm x 13mm thru 7mm x 25mm
Aluminum Extruded Bar Handles: 5/16" x ½", 8mm x 13mm- Heights: 1/2" thru 4", 13mm up to 102mm
Center to Center Handles: 3/4" thru 12", 19mm thru 305mm, ferrules available



  MODIFIED PARTS- ENGINEERING ASSISTANCE:
             We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department.  Contact Us
