Metric Folding Handle 8mm - Round - 180° Free Fall - External Thread (MP - Series) (Shipped with Nuts and Washers)  Back To Handles Page *External Thread has a 45 ° Angle on External Thread. Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
8mm Round 39mm Overall Height M8 x 1 Threads |
8mm Round 39mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MP1012 | MP1015 | MP1018 | 76 | MP1072 | MP1075 | MP1078 |
| 89 | MP1022 | MP1025 | MP1028 | 89 | MP1082 | MP1085 | MP1088 |
| 102 | MP1032 | MP1035 | MP1038 | 102 | MP1092 | MP1095 | MP1098 |
| 114 | MP1042 | MP1045 | MP1048 | 114 | MP1102 | MP1105 | MP1108 |
| 127 | MP1052 | MP1055 | MP1058 | 127 | MP1112 | MP1115 | MP1118 |
| 152 | MP1062 | MP1065 | MP1068 | 152 | MP1122 | MP1125 | MP1128 |
|
8mm Round 47mm Overall Height M8 x 1 Threads |
8mm Round 47mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MP1132 | MP1135 | MP1138 | 76 | MP1202 | MP1205 | MP1208 |
| 89 | MP1142 | MP1145 | MP1148 | 89 | MP1212 | MP1215 | MP1218 |
| 102 | MP1152 | MP1155 | MP1158 | 102 | MP1222 | MP1225 | MP1228 |
| 108 | MP1162 | MP1165 | MP1168 | 108 | MP1232 | MP1235 | MP1238 |
| 114 | MP1172 | MP1175 | MP1178 | 114 | MP1242 | MP1245 | MP1248 |
| 127 | MP1182 | MP1185 | MP1188 | 127 | MP1252 | MP1255 | MP1258 |
| 152 | MP1192 | MP1195 | MP1198 | 152 | MP1262 | MP1265 | MP1268 |

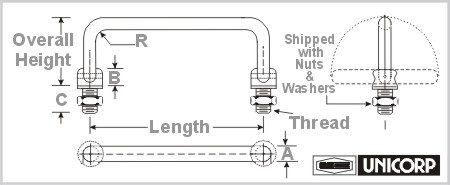

| Material Diameter | A | B | C | R | |||
|
8 10 |
13 16 |
11 13 |
10 10 |
8 10 |
|||
 |
 |
||||||
|
