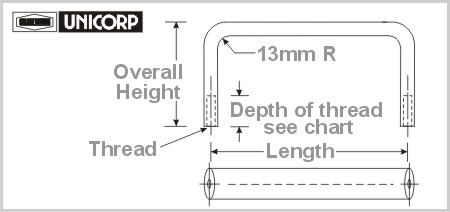

Metric Pull Handle 9mm x 16mm - Oval - Internal Thread (MD - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
9mm x 16mm Oval 33mm Overall Height M4 x 0.7 Threads |
9mm x 16mm Oval 33mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 63 | MD3862 | MD3865 | MD3868 | 63 | MD3972 | MD3975 | MD3978 |
| 76 | MD3872 | MD3875 | MD3878 | 76 | MD3982 | MD3985 | MD3988 |
| 102 | MD3882 | MD3885 | MD3888 | 102 | MD3992 | MD3995 | MD3998 |
| 108 | MD3892 | MD3895 | MD3898 | 108 | MD4002 | MD4005 | MD4008 |
| 114 | MD3902 | MD3905 | MD3908 | 114 | MD4012 | MD4015 | MD4018 |
| 116 | MD3912 | MD3915 | MD3918 | 116 | MD4022 | MD4025 | MD4028 |
| 127 | MD3922 | MD3925 | MD3928 | 127 | MD4032 | MD4035 | MD4038 |
| 152 | MD3932 | MD3935 | MD3938 | 152 | MD4042 | MD4045 | MD4048 |
| 178 | MD3942 | MD3945 | MD3948 | 178 | MD4052 | MD4055 | MD4058 |
| 203 | MD3952 | MD3955 | MD3958 | 203 | MD4062 | MD4065 | MD4068 |
| 229 | MD3962 | MD3965 | MD3968 | 229 | MD4072 | MD4075 | MD4078 |
|
9mm x 16mm Oval 38mm Overall Height M4 x 0.7 Threads |
9mm x 16mm Oval 38mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 63 | MD4082 | MD4085 | MD4088 | 63 | MD4192 | MD4195 | MD4198 |
| 76 | MD4092 | MD4095 | MD4098 | 76 | MD4202 | MD4205 | MD4208 |
| 102 | MD4102 | MD4205 | MD4208 | 102 | MD4212 | MD4215 | MD4218 |
| 108 | MD4112 | MD4115 | MD4118 | 108 | MD4222 | MD4225 | MD4228 |
| 114 | MD4122 | MD4125 | MD4128 | 114 | MD4232 | MD4235 | MD4238 |
| 116 | MD4132 | MD4135 | MD4138 | 116 | MD4242 | MD4245 | MD4248 |
| 127 | MD4142 | MD4145 | MD4148 | 127 | MD4252 | MD4255 | MD4258 |
| 152 | MD4152 | MD4155 | MD4158 | 152 | MD4262 | MD4265 | MD4268 |
| 178 | MD4162 | MD4165 | MD4168 | 178 | MD4272 | MD4275 | MD4278 |
| 203 | MD4172 | MD4175 | MD4178 | 203 | MD4282 | MD4285 | MD4288 |
| 229 | MD4182 | MD4185 | MD4188 | 229 | MD4292 | MD4295 | MD4298 |
|
9mm x 16mm Oval 44mm Overall Height M4 x 0.7 Threads |
9mm x 16mm Oval 44mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MD4302 | MD4305 | MD4308 | 76 | MD4442 | MD4445 | MD4448 |
| 102 | MD4312 | MD4315 | MD4318 | 102 | MD4452 | MD4455 | MD4458 |
| 108 | MD4322 | MD4325 | MD4328 | 108 | MD4462 | MD4465 | MD4468 |
| 114 | MD4332 | MD4335 | MD4338 | 114 | MD4472 | MD4475 | MD4478 |
| 116 | MD4342 | MD4345 | MD4348 | 116 | MD4482 | MD4485 | MD4488 |
| 127 | MD4352 | MD4355 | MD4358 | 127 | MD4492 | MD4495 | MD4498 |
| 140 | MD4362 | MD4365 | MD4368 | 140 | MD4502 | MD4505 | MD4508 |
| 152 | MD4372 | MD4375 | MD4378 | 152 | MD4512 | MD4515 | MD4518 |
| 163 | MD4382 | MD4385 | MD4388 | 163 | MD4522 | MD4525 | MD4528 |
| 178 | MD4392 | MD4395 | MD4398 | 178 | MD4532 | MD4535 | MD4538 |
| 203 | MD4402 | MD4405 | MD4408 | 203 | MD4542 | MD4545 | MD4548 |
| 229 | MD4412 | MD4415 | MD4418 | 229 | MD4552 | MD4555 | MD4558 |
| 254 | MD4422 | MD4425 | MD4428 | 254 | MD4562 | MD4565 | MD4568 |
| 305 | MD4432 | MD4435 | MD4438 | 305 | MD4572 | MD4575 | MD4578 |
|
9mm x 16mm Oval 51mm Overall Height M4 x 0.7 Threads |
9mm x 16mm Oval 51mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MD4582 | MD4585 | MD4588 | 102 | MD4682 | MD4685 | MD4688 |
| 114 | MD4592 | MD4595 | MD4598 | 114 | MD4692 | MD4695 | MD4698 |
| 116 | MD4602 | MD4605 | MD4608 | 116 | MD4702 | MD4705 | MD4708 |
| 127 | MD4612 | MD4615 | MD4618 | 127 | MD4712 | MD4715 | MD4718 |
| 152 | MD4622 | MD4625 | MD4628 | 152 | MD4722 | MD4725 | MD4728 |
| 178 | MD4632 | MD4635 | MD4638 | 178 | MD4732 | MD4735 | MD4738 |
| 203 | MD4642 | MD4645 | MD4648 | 203 | MD4742 | MD4745 | MD4748 |
| 229 | MD4652 | MD4655 | MD4658 | 229 | MD4752 | MD4755 | MD4758 |
| 254 | MD4662 | MD4665 | MD4668 | 254 | MD4762 | MD4765 | MD4768 |
| 305 | MD4672 | MD4675 | MD4678 | 305 | MD4772 | MD4775 | MD4778 |
|
9mm x 16mm Oval 54mm Overall Height M4 x 0.7 Threads |
9mm x 16mm Oval 54mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 63 | MD4782 | MD4785 | MD4788 | 63 | MD4932 | MD4935 | MD4938 |
| 76 | MD4792 | MD4795 | MD4798 | 76 | MD4942 | MD4945 | MD4948 |
| 102 | MD4802 | MD4805 | MD4808 | 102 | MD4952 | MD4955 | MD4958 |
| 114 | MD4812 | MD4815 | MD4818 | 114 | MD4962 | MD4965 | MD4968 |
| 127 | MD4822 | MD4825 | MD4828 | 127 | MD4972 | MD4975 | MD4978 |
| 140 | MD4832 | MD4835 | MD4838 | 140 | MD4982 | MD4985 | MD4988 |
| 152 | MD4842 | MD4845 | MD4848 | 152 | MD4992 | MD4995 | MD4998 |
| 165 | MD4852 | MD4855 | MD4858 | 165 | MD5002 | MD5005 | MD5008 |
| 178 | MD4862 | MD4865 | MD4868 | 178 | MD5012 | MD5015 | MD5018 |
| 190 | MD4872 | MD4875 | MD4878 | 190 | MD5022 | MD5025 | MD5028 |
| 203 | MD4882 | MD4885 | MD4888 | 203 | MD5032 | MD5035 | MD5038 |
| 216 | MD4892 | MD4895 | MD4898 | 216 | MD5042 | MD5045 | MD5048 |
| 229 | MD4902 | MD4905 | MD4908 | 229 | MD5052 | MD5055 | MD5058 |
| 241 | MD4912 | MD4915 | MD4918 | 241 | MD5062 | MD5065 | MD5068 |
| 254 | MD4922 | MD4925 | MD4928 | 254 | MD5072 | MD5075 | MD5078 |
|
9mm x 16mm Oval 63mm Overall Height M4 x 0.7 Threads |
9mm x 16mm Oval 63mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MD5082 | MD5085 | MD5088 | 102 | MD5182 | MD5185 | MD5188 |
| 114 | MD5092 | MD5095 | MD5098 | 114 | MD5183 | MD5186 | MD5189 |
| 116 | MD5102 | MD5105 | MD5108 | 116 | MD5192 | MD5195 | MD5198 |
| 127 | MD5112 | MD5115 | MD5118 | 127 | MD5202 | MD5205 | MD5208 |
| 152 | MD5122 | MD5125 | MD5128 | 152 | MD5212 | MD5215 | MD5218 |
| 178 | MD5132 | MD5135 | MD5138 | 178 | MD5222 | MD5225 | MD5228 |
| 203 | MD5142 | MD5145 | MD5148 | 203 | MD5232 | MD5235 | MD5238 |
| 229 | MD5152 | MD5155 | MD5158 | 229 | MD5242 | MD5245 | MD5248 |
| 254 | MD5162 | MD5165 | MD5168 | 254 | MD5252 | MD5255 | MD5258 |
| 305 | MD5172 | MD5175 | MD5178 | 305 | MD5262 | MD5265 | MD5268 |
|
9mm x 16mm Oval 76mm Overall Height M4 x 0.7 Threads |
9mm x 16mm Oval 76mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MD5272 | MD5275 | MD5278 | 102 | MD5372 | MD5375 | MD5378 |
| 114 | MD5282 | MD5285 | MD5288 | 114 | MD5382 | MD5385 | MD5388 |
| 116 | MD5292 | MD5295 | MD5298 | 116 | MD5392 | MD5395 | MD5398 |
| 127 | MD5302 | MD5305 | MD5308 | 127 | MD5402 | MD5405 | MD5408 |
| 152 | MD5312 | MD5315 | MD5318 | 152 | MD5412 | MD5415 | MD5418 |
| 178 | MD5322 | MD5325 | MD5328 | 178 | MD5422 | MD5425 | MD5428 |
| 203 | MD5332 | MD5335 | MD5338 | 203 | MD5432 | MD5435 | MD5438 |
| 229 | MD5342 | MD5345 | MD5348 | 229 | MD5442 | MD5445 | MD5448 |
| 254 | MD5352 | MD5355 | MD5358 | 254 | MD5452 | MD5455 | MD5458 |
| 305 | MD5362 | MD5365 | MD5368 | 305 | MD5462 | MD5465 | MD5468 |
 |
 |
||||||
|
