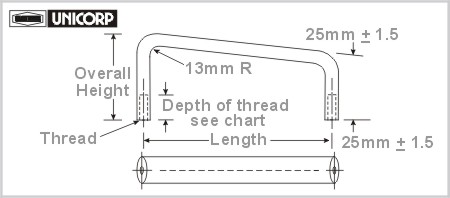

Metric Slanted Pull Handle 16mm x 9mm - Oval - Internal Thread (MH - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
16mm x 9mm Oval 38mm Overall Height M4 x 0.7 Threads |
16mm x 9mm Oval 38mmOverall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MH2972 | MH2975 | MH2978 | 76 | MH3082 | MH3085 | MH3088 |
| 89 | MH2982 | MH2985 | MH2988 | 89 | MH3092 | MH3095 | MH3098 |
| 102 | MH2992 | MH2995 | MH2998 | 102 | MH3102 | MH3105 | MH3108 |
| 114 | MH3002 | MH3005 | MH3008 | 114 | MH3112 | MH3115 | MH3118 |
| 127 | MH3012 | MH3015 | MH3018 | 127 | MH3122 | MH3125 | MH3128 |
| 152 | MH3022 | MH3025 | MH3028 | 152 | MH3132 | MH3135 | MH3138 |
| 165 | MH3032 | MH3035 | MH3038 | 165 | MH3142 | MH3145 | MH3148 |
| 178 | MH3042 | MH3045 | MH3048 | 178 | MH3152 | MH3155 | MH3158 |
| 203 | MH3052 | MH3055 | MH3058 | 203 | MH3162 | MH3165 | MH3168 |
| 229 | MH3062 | MH3065 | MH3068 | 229 | MH3172 | MH3175 | MH3178 |
| 254 | MH3072 | MH3075 | MH3078 | 254 | MH3182 | MH3185 | MH3188 |
|
16mm x 9mm Oval 41mm Overall Height M4 x 0.7 Threads |
16mm x 9mm Oval 41mmOverall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MH3192 | MH3195 | MH3198 | 76 | MH3302 | MH3305 | MH3308 |
| 89 | MH3202 | MH3205 | MH3208 | 89 | MH3312 | MH3315 | MH3318 |
| 102 | MH3212 | MH3215 | MH3218 | 102 | MH3322 | MH3325 | MH3328 |
| 114 | MH3222 | MH3225 | MH3228 | 114 | MH3332 | MH3335 | MH3338 |
| 127 | MH3232 | MH3235 | MH3238 | 127 | MH3342 | MH3345 | MH3348 |
| 152 | MH3242 | MH3245 | MH3248 | 152 | MH3352 | MH3355 | MH3358 |
| 165 | MH3252 | MH3255 | MH3258 | 165 | MH3362 | MH3365 | MH3368 |
| 178 | MH3262 | MH3265 | MH3268 | 178 | MH3372 | MH3375 | MH3378 |
| 203 | MH3272 | MH3275 | MH3278 | 203 | MH3382 | MH3385 | MH3388 |
| 229 | MH3282 | MH3285 | MH3288 | 229 | MH3392 | MH3395 | MH3398 |
| 254 | MH3292 | MH3295 | MH3298 | 254 | MH3402 | MH3405 | MH3408 |
|
16mm x 9mm Oval 44mm Overall Height M4 x 0.7 Threads |
16mm x 9mm Oval 44mmOverall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MH3412 | MH3415 | MH3418 | 76 | MH3522 | MH3525 | MH3528 |
| 89 | MH3422 | MH3425 | MH3428 | 89 | MH3532 | MH3535 | MH3538 |
| 102 | MH3432 | MH3435 | MH3438 | 102 | MH3542 | MH3445 | MH3448 |
| 114 | MH3442 | MH3445 | MH3448 | 114 | MH3552 | MH3555 | MH3558 |
| 127 | MH3452 | MH3455 | MH3458 | 127 | MH3562 | MH3565 | MH3568 |
| 152 | MH3462 | MH3465 | MH3468 | 152 | MH3572 | MH3575 | MH3578 |
| 165 | MH3472 | MH3475 | MH3478 | 165 | MH3582 | MH3585 | MH3588 |
| 178 | MH3482 | MH3485 | MH3488 | 178 | MH3592 | MH3595 | MH3598 |
| 203 | MH3492 | MH3495 | MH3498 | 203 | MH3602 | MH3605 | MH3608 |
| 229 | MH3502 | MH3505 | MH3508 | 229 | MH3612 | MH3615 | MH3618 |
| 254 | MH3512 | MH3515 | MH3518 | 254 | MH3622 | MH3625 | MH3628 |
|
16mm x 9mm Oval 51mm Overall Height M4 x 0.7 Threads |
16mm x 9mm Oval 51mmOverall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MH3632 | MH3635 | MH3638 | 76 | MH3742 | MH3745 | MH3748 |
| 89 | MH3642 | MH3645 | MH3648 | 89 | MH3752 | MH3755 | MH3758 |
| 102 | MH3652 | MH3655 | MH3658 | 102 | MH3762 | MH3765 | MH3768 |
| 114 | MH3662 | MH3665 | MH3668 | 114 | MH3772 | MH3775 | MH3778 |
| 127 | MH3672 | MH3675 | MH3678 | 127 | MH3782 | MH3785 | MH3788 |
| 152 | MH3682 | MH3685 | MH3688 | 152 | MH3792 | MH3795 | MH3798 |
| 165 | MH3692 | MH3695 | MH3698 | 165 | MH3802 | MH3805 | MH3808 |
| 178 | MH3702 | MH3705 | MH3708 | 178 | MH3812 | MH3815 | MH3818 |
| 203 | MH3712 | MH3715 | MH3718 | 203 | MH3822 | MH3825 | MH3828 |
| 229 | MH3722 | MH3725 | MH3728 | 229 | MH3832 | MH3835 | MH3838 |
| 254 | MH3732 | MH3735 | MH3738 | 254 | MH3842 | MH3845 | MH3848 |
 |
 |
||||||
|
