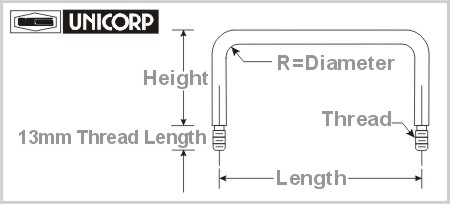

Metric Pull Handle 8mm - Round - External Thread with Shoulder (MB - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
8mm Round 46mm Overall Height M5 x 0.8 Threads |
8mm Round 46mm Overall Height M6 x 1 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MB2001 | MB2004 | MB2007 | 51 | MB2111 | MB2114 | MB2117 |
| 76 | MB2011 | MB2014 | MB2017 | 76 | MB2121 | MB2124 | MB2127 |
| 102 | MB2021 | MB2024 | MB2027 | 102 | MB2131 | MB2134 | MB2137 |
| 108 | MB2031 | MB2034 | MB2037 | 108 | MB2141 | MB2144 | MB2147 |
| 114 | MB2041 | MB2044 | MB2047 | 114 | MB2151 | MB2154 | MB2157 |
| 121 | MB2051 | MB2054 | MB2057 | 121 | MB2161 | MB2164 | MB2167 |
| 127 | MB2061 | MB2064 | MB2067 | 127 | MB2171 | MB2174 | MB2177 |
| 152 | MB2071 | MB2074 | MB2077 | 152 | MB2181 | MB2184 | MB2187 |
| 178 | MB2081 | MB2084 | MB2087 | 178 | MB2191 | MB2194 | MB2197 |
| 203 | MB2091 | MB2094 | MB2097 | 203 | MB2201 | MB2204 | MB2207 |
| 229 | MB2101 | MB2104 | MB2107 | 229 | MB2211 | MB2214 | MB2217 |
|
8mm Round 51mm Overall Height M5 x 0.8 Threads |
8mm Round 51mm Overall Height M6 x 1 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MB2221 | MB2224 | MB2227 | 51 | MB2341 | MB2344 | MB2347 |
| 76 | MB2231 | MB2234 | MB2237 | 76 | MB2351 | MB2354 | MB2357 |
| 102 | MB2241 | MB2244 | MB2247 | 102 | MB2361 | MB2364 | MB2367 |
| 108 | MB2251 | MB2254 | MB2257 | 108 | MB2371 | MB2374 | MB2377 |
| 114 | MB2261 | MB2264 | MB2267 | 114 | MB2381 | MB2384 | MB2387 |
| 121 | MB2271 | MB2274 | MB2277 | 121 | MB2391 | MB2394 | MB2397 |
| 127 | MB2281 | MB2284 | MB2287 | 127 | MB2401 | MB2404 | MB2407 |
| 140 | MB2291 | MB2294 | MB2297 | 152 | MB2411 | MB2414 | MB2417 |
| 152 | MB2301 | MB2304 | MB2307 | 178 | MB2421 | MB2424 | MB2427 |
| 178 | MB2311 | MB2314 | MB2317 | 203 | MB2431 | MB2434 | MB2437 |
| 203 | MB2321 | MB2324 | MB2327 | 229 | MB2441 | MB2444 | MB2447 |
| 229 | MB2331 | MB2334 | MB2337 | ||||
|
8mm Round 57mm Overall Height M5 x 0.8 Threads |
8mm Round 57mm Overall Height M6 x 1 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MB2461 | MB2464 | MB2467 | 51 | MB2571 | MB2574 | MB2577 |
| 76 | MB2471 | MB2474 | MB2477 | 76 | MB2581 | MB2584 | MB2587 |
| 102 | MB2481 | MB2484 | MB2487 | 102 | MB2591 | MB2594 | MB2597 |
| 108 | MB2491 | MB2494 | MB2497 | 108 | MB2601 | MB2604 | MB2607 |
| 114 | MB2501 | MB2504 | MB2507 | 114 | MB2611 | MB2614 | MB2617 |
| 121 | MB2511 | MB2514 | MB2517 | 121 | MB2621 | MB2624 | MB2627 |
| 127 | MB2521 | MB2524 | MB2527 | 127 | MB2631 | MB2634 | MB2637 |
| 152 | MB2531 | MB2534 | MB2537 | 152 | MB2641 | MB2644 | MB2647 |
| 178 | MB2541 | MB2544 | MB2547 | 178 | MB2651 | MB2654 | MB2657 |
| 203 | MB2551 | MB2554 | MB2557 | 203 | MB2661 | MB2664 | MB2667 |
| 229 | MB2561 | MB2564 | MB2567 | 229 | MB2671 | MB2674 | MB2677 |
 |
 |
||||||
|
