Metric Folding Handle 16mm x 9mm - Oval - 90° Two Position - External Thread (MR - Series) (Shipped with Nuts and Washers)  Back To Handles Page *External Thread has a 45 ° Angle on External Thread. Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
16mm x 9mm Oval 43mm Overall Height M8 x 1 Threads |
16mm x 9mm Oval 43mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MR2892 | MR2895 | MR2898 | 76 | MR2972 | MR2975 | MR2978 |
| 102 | MR2902 | MR2905 | MR2908 | 102 | MR2982 | MR2985 | MR2988 |
| 108 | MR2912 | MR2915 | MR2918 | 108 | MR2992 | MR2995 | MR2998 |
| 114 | MR2922 | MR2925 | MR2928 | 114 | MR3002 | MR3005 | MR3008 |
| 127 | MR2932 | MR2935 | MR2938 | 127 | MR3012 | MR3015 | MR3018 |
| 152 | MR2942 | MR2945 | MR2948 | 152 | MR3022 | MR3025 | MR3028 |
| 178 | MR2952 | MR2955 | MR2958 | 178 | MR3032 | MR3035 | MR3038 |
| 203 | MR2962 | MR2965 | MR2968 | 203 | MR3042 | MR3045 | MR3048 |
|
16mm x 9mm Oval 45mm Overall Height M8 x 1 Threads |
16mm x 9mm Oval 45mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MR3052 | MR3055 | MR3058 | 76 | MR3132 | MR3135 | MR3138 |
| 102 | MR3062 | MR3065 | MR3068 | 102 | MR3142 | MR3145 | MR3148 |
| 108 | MR3072 | MR3075 | MR3078 | 108 | MR3152 | MR3155 | MR3158 |
| 114 | MR3082 | MR3085 | MR3088 | 114 | MR3162 | MR3165 | MR3168 |
| 127 | MR3092 | MR3095 | MR3098 | 127 | MR3172 | MR3175 | MR3178 |
| 152 | MR3102 | MR3105 | MR3108 | 152 | MR3182 | MR3185 | MR3188 |
| 178 | MR3112 | MR3115 | MR3118 | 178 | MR3192 | MR3195 | MR3198 |
| 203 | MR3122 | MR3125 | MR3128 | 203 | MR3202 | MR3205 | MR3208 |
|
16mm x 9mm Oval 47mm Overall Height M8 x 1 Threads |
16mm x 9mm Oval 47mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MR3212 | MR3215 | MR3218 | 76 | MR3292 | MR3295 | MR3298 |
| 102 | MR3222 | MR3225 | MR3228 | 102 | MR3302 | MR3305 | MR3308 |
| 108 | MR3232 | MR3235 | MR3238 | 108 | MR3312 | MR3315 | MR3318 |
| 114 | MR3242 | MR3245 | MR3248 | 114 | MR3322 | MR3325 | MR3328 |
| 127 | MR3252 | MR3255 | MR3258 | 127 | MR3332 | MR3335 | MR3338 |
| 152 | MR3262 | MR3265 | MR3268 | 152 | MR3342 | MR3345 | MR3348 |
| 178 | MR3272 | MR3275 | MR3278 | 178 | MR3352 | MR3355 | MR3358 |
| 203 | MR3282 | MR3285 | MR3288 | 203 | MR3362 | MR3365 | MR3368 |
|
16mm x 9mm Oval 54mm Overall Height M8 x 1 Threads |
16mm x 9mm Oval 54mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MR3372 | MR3375 | MR3378 | 76 | MR3452 | MR3455 | MR3458 |
| 102 | MR3382 | MR3385 | MR3388 | 102 | MR3462 | MR3465 | MR3468 |
| 108 | MR3392 | MR3395 | MR3398 | 108 | MR3472 | MR3475 | MR3478 |
| 114 | MR3402 | MR3405 | MR3408 | 114 | MR3482 | MR3485 | MR3488 |
| 127 | MR3412 | MR3415 | MR3418 | 127 | MR3492 | MR3495 | MR3498 |
| 152 | MR3422 | MR3425 | MR3428 | 152 | MR3502 | MR3505 | MR3508 |
| 178 | MR3432 | MR3435 | MR3438 | 178 | MR3512 | MR3515 | MR3518 |
| 203 | MR3442 | MR3445 | MR3448 | 203 | MR3522 | MR3525 | MR3528 |

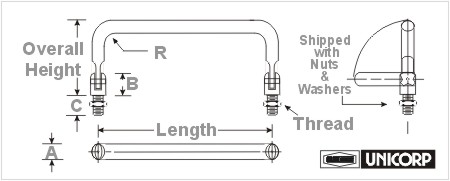

| Material Diameter | A | B | C | R | |||
|
11 x 7 12.5 x 6.3 16 x 7 16 x 9 |
11 13 16 16 |
14 16 19 19 |
16 16 16 16 |
13 13 13 13 |
|||
 |
 |
||||||
|
