Metric Folding Handle 10mm - Round - 90° Two Position - External Thread (MM - Series) (Shipped with Nuts and Washers)  Back To Handles Page *External Thread has a 45° Angle on External Thread. Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
10mm Round 41mm Overall Height M8 x 1 Threads |
10mm Round 41mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MM1172 | MM1175 | MM1178 | 102 | MM1252 | MM1255 | MM1258 |
| 108 | MM1182 | MM1185 | MM1188 | 108 | MM1262 | MM1265 | MM1268 |
| 114 | MM1192 | MM1195 | MM1198 | 114 | MM1272 | MM1275 | MM1278 |
| 127 | MM1202 | MM1205 | MM1208 | 127 | MM1282 | MM1285 | MM1288 |
| 152 | MM1212 | MM1215 | MM1218 | 152 | MM1292 | MM1295 | MM1298 |
| 178 | MM1222 | MM1225 | MM1228 | 178 | MM1302 | MM1305 | MM1308 |
| 203 | MM1232 | MM1235 | MM1238 | 203 | MM1312 | MM1315 | MM1318 |
| 229 | MM1242 | MM1245 | MM1248 | 229 | MM1322 | MM1325 | MM1328 |
|
10mm Round 46mm Overall Height M8 x 1 Threads |
10mm Round 46mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MM1332 | MM1335 | MM1338 | 102 | MM1412 | MM1415 | MM1418 |
| 108 | MM1342 | MM1345 | MM1348 | 108 | MM1422 | MM1425 | MM1428 |
| 114 | MM1352 | MM1355 | MM1358 | 114 | MM1432 | MM1435 | MM1438 |
| 127 | MM1362 | MM1365 | MM1368 | 127 | MM1442 | MM1445 | MM1448 |
| 152 | MM1372 | MM1375 | MM1378 | 152 | MM1452 | MM1455 | MM1458 |
| 178 | MM1382 | MM1385 | MM1388 | 178 | MM1462 | MM1465 | MM1468 |
| 203 | MM1392 | MM1395 | MM1398 | 203 | MM1472 | MM1475 | MM1478 |
| 229 | MM1402 | MM1405 | MM1408 | 229 | MM1482 | MM1485 | MM1488 |
|
10mm Round 47mm Overall Height M8 x 1 Threads |
10mm Round 47mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MM1492 | MM1495 | MM1498 | 102 | MM1572 | MM1575 | MM1578 |
| 108 | MM1502 | MM1505 | MM1508 | 108 | MM1582 | MM1585 | MM1588 |
| 114 | MM1512 | MM1515 | MM1518 | 114 | MM1592 | MM1595 | MM1598 |
| 127 | MM1522 | MM1525 | MM1528 | 127 | MM1602 | MM1605 | MM1608 |
| 152 | MM1532 | MM1535 | MM1538 | 152 | MM1612 | MM1615 | MM1618 |
| 178 | MM1542 | MM1545 | MM1548 | 178 | MM1622 | MM1625 | MM1628 |
| 203 | MM1552 | MM1555 | MM1558 | 203 | MM1632 | MM1635 | MM1638 |
| 229 | MM1562 | MM1565 | MM1568 | 229 | MM1642 | MM1645 | MM1648 |
|
10mm Round 60mm Overall Height M8 x 1 Threads |
10mm Round 60mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MM1652 | MM1655 | MM1658 | 102 | MM1732 | MM1735 | MM1738 |
| 108 | MM1662 | MM1665 | MM1668 | 108 | MM1742 | MM1745 | MM1748 |
| 114 | MM1672 | MM1675 | MM1678 | 114 | MM1752 | MM1755 | MM1758 |
| 127 | MM1682 | MM1685 | MM1688 | 127 | MM1762 | MM1765 | MM1768 |
| 152 | MM1692 | MM1695 | MM1698 | 152 | MM1772 | MM1775 | MM1778 |
| 178 | MM1702 | MM1705 | MM1708 | 178 | MM1782 | MM1785 | MM1788 |
| 203 | MM1712 | MM1715 | MM1718 | 203 | MM1792 | MM1795 | MM1798 |
| 229 | MM1722 | MM1725 | MM1728 | 229 | MM1802 | MM1805 | MM1808 |

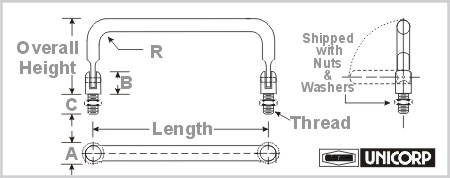

| Material Diameter | A | B | C | R | |||
|
8 10 |
13 16 |
10 13 |
16 16 |
8 10 |
|||
 |
 |
||||||
|
