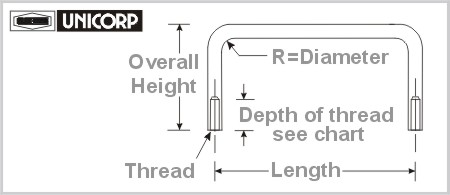

Metric Pull Handle 8mm - Round - Internal Thread (MA - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
8mm Round 25mm Overall Height M4 x 0.7 Threads |
8mm Round 25mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MA3781 | MA3784 | MA3787 | 51 | MA3841 | MA3844 | MA3847 |
| 63 | MA3782 | MA3785 | MA3788 | 63 | MA3842 | MA3845 | MA3848 |
| 76 | MA3791 | MA3794 | MA3797 | 76 | MA3851 | MA3854 | MA3857 |
| 89 | MA3792 | MA3795 | MA3798 | 89 | MA3852 | MA3855 | MA3858 |
| 102 | MA3802 | MA3805 | MA3808 | 102 | MA3861 | MA3864 | MA3867 |
| 108 | MA3811 | MA3814 | MA3817 | 108 | MA3862 | MA3865 | MA3868 |
| 114 | MA3821 | MA3824 | MA3827 | 114 | MA3871 | MA3874 | MA3877 |
| 121 | MA3822 | MA3825 | MA3828 | 121 | MA3872 | MA3875 | MA3878 |
| 127 | MA3831 | MA3834 | MA3837 | 127 | MA3881 | MA3884 | MA3887 |
| 152 | MA3832 | MA3835 | MA3838 | 152 | MA3882 | MA3885 | MA3888 |
|
8mm Round 29mm Overall Height M4 x 0.7 Threads |
8mm Round 29mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MA3891 | MA3894 | MA3897 | 51 | MA3932 | MA3935 | MA3938 |
| 76 | MA3892 | MA3895 | MA3898 | 76 | MA3941 | MA3944 | MA3947 |
| 102 | MA3902 | MA3905 | MA3908 | 102 | MA3942 | MA3945 | MA3948 |
| 108 | MA3911 | MA3914 | MA3917 | 108 | MA3951 | MA3954 | MA3957 |
| 116 | MA3921 | MA3924 | MA3927 | 116 | MA3952 | MA3955 | MA3958 |
| 121 | MA3922 | MA3925 | MA3928 | 121 | MA3961 | MA3964 | MA3967 |
| 127 | MA3931 | MA3934 | MA3937 | 127 | MA3962 | MA3965 | MA3968 |
|
8mm Round 32mm Overall Height M4 x 0.7 Threads |
8mm Round 32mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MA3971 | MA3974 | MA3977 | 51 | MA4011 | MA4014 | MA4017 |
| 63 | MA3972 | MA3975 | MA3978 | 63 | MA4021 | MA4024 | MA4027 |
| 76 | MA3981 | MA3984 | MA3987 | 76 | MA4022 | MA4025 | MA4028 |
| 89 | MA3982 | MA3985 | MA3988 | 89 | MA4031 | MA4034 | MA4037 |
| 102 | MA3991 | MA3994 | MA3997 | 102 | MA4032 | MA4035 | MA4038 |
| 116 | MA3992 | MA3995 | MA3998 | 116 | MA4041 | MA4044 | MA4047 |
| 127 | MA4002 | MA4005 | MA4008 | 127 | MA4042 | MA4045 | MA4048 |
|
8mm Round 33mm Overall Height M4 x 0.7 Threads |
8mm Round 33mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel | Length |
Brass Part # |
Aluminum Part # |
Stainless Steel |
| 51 | MA4051 | MA4054 | MA4057 | 51 | MA4092 | MA4095 | MA4098 |
| 57 | MA4052 | MA4055 | MA4058 | 57 | MA4102 | MA4105 | MA4108 |
| 63 | MA4061 | MA4064 | MA4067 | 63 | MA4111 | MA4115 | MA4118 |
| 70 | MA4062 | MA4065 | MA4068 | 70 | MA4121 | MA4124 | MA4127 |
| 71 | MA4071 | MA4074 | MA4077 | 71 | MA4122 | MA4125 | MA4128 |
| 76 | MA4072 | MA4075 | MA4078 | 76 | MA4131 | MA4134 | MA4137 |
| 89 | MA4081 | MA4084 | MA4087 | 89 | MA4132 | MA4135 | MA4138 |
| 102 | MA4082 | MA4085 | MA4088 | 102 | MA4141 | MA4144 | MA4147 |
| 108 | MA4091 | MA4094 | MA4097 | 108 | MA4142 | MA4145 | MA4148 |
|
8mm Round 35mm Overall Height M4 x 0.7 Threads |
8mm Round 35mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MA4151 | MA4154 | MA4157 | 51 | MA4202 | MA4204 | MA4207 |
| 57 | MA4152 | MA4155 | MA4158 | 57 | MA4211 | MA4214 | MA4217 |
| 63 | MA4161 | MA4164 | MA4167 | 63 | MA4221 | MA4224 | MA4227 |
| 70 | MA4162 | MA4165 | MA4168 | 70 | MA4222 | MA4225 | MA4228 |
| 76 | MA4171 | MA4174 | MA4177 | 76 | MA4231 | MA4234 | MA4237 |
| 89 | MA4172 | MA4175 | MA4178 | 89 | MA4232 | MA4235 | MA4238 |
| 102 | MA4181 | MA4184 | MA4187 | 102 | MA4241 | MA4244 | MA4247 |
| 108 | MA4182 | MA4185 | MA4188 | 108 | MA4242 | MA4245 | MA4248 |
| 114 | MA4191 | MA4194 | MA4197 | 114 | MA4251 | MA4254 | MA4257 |
| 127 | MA4192 | MA4195 | MA4198 | 127 | MA4252 | MA4255 | MA4258 |
|
8mm Round 38mm Overall Height M4 x 0.7 Threads |
8mm Round 38mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MA4261 | MA4264 | MA4267 | 51 | MA4442 | MA4445 | MA4448 |
| 54 | MA4262 | MA4265 | MA4268 | 54 | MA4451 | MA4454 | MA4457 |
| 57 | MA4271 | MA4274 | MA4277 | 57 | MA4452 | MA4455 | MA4458 |
| 60 | MA4272 | MA4275 | MA4278 | 60 | MA4461 | MA4464 | MA4467 |
| 63 | MA4281 | MA4284 | MA4287 | 63 | MA4462 | MA4465 | MA4468 |
| 70 | MA4282 | MA4285 | MA4288 | 70 | MA4471 | MA4474 | MA4477 |
| 76 | MA4291 | MA4294 | MA4297 | 76 | MA4472 | MA4475 | MA4478 |
| 79 | MA4292 | MA4295 | MA4298 | 79 | MA4481 | MA4484 | MA4487 |
| 83 | MA4302 | MA4305 | MA4308 | 83 | MA4482 | MA4485 | MA4488 |
| 89 | MA4311 | MA4314 | MA4317 | 89 | MA4491 | MA4494 | MA4497 |
| 102 | MA4321 | MA4324 | MA4327 | 102 | MA4492 | MA4495 | MA4498 |
| 108 | MA4322 | MA4325 | MA4328 | 108 | MA4502 | MA4505 | MA4508 |
| 114 | MA4331 | MA4334 | MA4337 | 114 | MA4511 | MA4514 | MA4517 |
| 116 | MA4332 | MA4335 | MA4338 | 116 | MA4521 | MA4524 | MA4527 |
| 118 | MA4341 | MA4344 | MA4347 | 118 | MA4522 | MA4525 | MA4528 |
| 127 | MA4342 | MA4345 | MA4348 | 127 | MA4531 | MA4534 | MA4537 |
| 133 | MA4351 | MA4354 | MA4357 | 133 | MA4532 | MA4535 | MA4538 |
| 140 | MA4352 | MA4355 | MA4358 | 140 | MA4541 | MA4544 | MA4547 |
| 146 | MA4361 | MA4364 | MA4367 | 146 | MA4542 | MA4545 | MA4548 |
| 152 | MA4362 | MA4365 | MA4368 | 152 | MA4551 | MA4554 | MA4557 |
| 159 | MA4371 | MA4374 | MA4377 | 159 | MA4552 | MA4555 | MA4558 |
| 163 | MA4372 | MA4375 | MA4378 | 163 | MA4561 | MA4564 | MA4567 |
| 165 | MA4381 | MA4384 | MA4387 | 165 | MA4562 | MA4565 | MA4568 |
| 171 | MA4382 | MA4385 | MA4388 | 171 | MA4571 | MA4574 | MA4577 |
| 178 | MA4391 | MA4394 | MA4397 | 178 | MA4572 | MA4575 | MA4578 |
| 184 | MA4392 | MA4395 | MA4398 | 184 | MA4581 | MA4584 | MA4587 |
| 190 | MA4402 | MA4405 | MA4408 | 190 | MA4582 | MA4585 | MA4588 |
| 197 | MA4411 | MA4414 | MA4417 | 197 | MA4591 | MA4594 | MA4597 |
| 203 | MA4421 | MA4424 | MA4427 | 203 | MA4592 | MA4595 | MA4598 |
| 216 | MA4422 | MA4425 | MA4428 | 216 | MA4602 | MA4605 | MA4608 |
| 229 | MA4431 | MA4434 | MA4437 | 229 | MA4611 | MA4614 | MA4617 |
| 241 | MA4432 | MA4435 | MA4438 | 241 | MA4621 | MA4624 | MA4627 |
| 254 | MA4441 | MA4444 | MA4447 | 254 | MA4622 | MA4625 | MA4628 |
|
8mm Round 44mm Overall Height M4 x 0.7 Threads |
8mm Round 44mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MA4631 | MA4634 | MA4637 | 76 | MA4762 | MA4765 | MA4768 |
| 89 | MA4632 | MA4635 | MA4638 | 89 | MA4771 | MA4774 | MA4777 |
| 102 | MA4641 | MA4644 | MA4647 | 102 | MA4772 | MA4775 | MA4778 |
| 108 | MA4642 | MA4645 | MA4648 | 108 | MA4781 | MA4784 | MA4787 |
| 114 | MA4651 | MA4654 | MA4657 | 114 | MA4782 | MA4785 | MA4788 |
| 116 | MA4652 | MA4655 | MA4658 | 116 | MA4791 | MA4794 | MA4797 |
| 118 | MA4661 | MA4664 | MA4667 | 118 | MA4792 | MA4795 | MA4798 |
| 121 | MA4662 | MA4665 | MA4668 | 121 | MA4802 | MA4805 | MA4808 |
| 127 | MA4671 | MA4674 | MA4677 | 127 | MA4811 | MA4814 | MA4817 |
| 130 | MA4672 | MA4675 | MA4678 | 130 | MA4821 | MA4824 | MA4827 |
| 133 | MA4681 | MA4684 | MA4687 | 133 | MA4822 | MA4825 | MA4828 |
| 140 | MA4682 | MA4685 | MA4688 | 140 | MA4831 | MA4834 | MA4837 |
| 146 | MA4691 | MA4694 | MA4697 | 146 | MA4832 | MA4835 | MA4838 |
| 152 | MA4692 | MA4695 | MA4698 | 152 | MA4841 | MA4844 | MA4847 |
| 159 | MA4702 | MA4704 | MA4707 | 159 | MA4842 | MA4845 | MA4848 |
| 163 | MA4711 | MA4714 | MA4717 | 163 | MA4851 | MA4854 | MA4857 |
| 165 | MA4721 | MA4724 | MA4727 | 165 | MA4852 | MA4855 | MA4858 |
| 171 | MA4722 | MA4725 | MA4728 | 171 | MA4861 | MA4864 | MA4867 |
| 178 | MA4731 | MA4734 | MA4737 | 178 | MA4862 | MA4865 | MA4868 |
| 184 | MA4732 | MA4735 | MA4738 | 184 | MA4871 | MA4874 | MA4877 |
| 190 | MA4741 | MA4744 | MA4747 | 190 | MA4872 | MA4875 | MA4878 |
| 197 | MA4742 | MA4745 | MA4748 | 197 | MA4881 | MA4884 | MA4887 |
| 203 | MA4751 | MA4754 | MA4757 | 203 | MA4882 | MA4885 | MA4888 |
| 229 | MA4752 | MA4755 | MA4758 | 229 | MA4891 | MA4894 | MA4897 |
| 254 | MA4761 | MA4764 | MA4767 | 254 | MA4892 | MA4895 | MA4898 |
|
8mm Round 48mm Overall Height M4 x 0.7 Threads |
8mm Round 48mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MA4902 | MA4905 | MA4908 | 76 | MA4961 | MA4964 | MA4967 |
| 82 | MA4911 | MA4914 | MA4917 | 82 | MA4962 | MA4965 | MA4968 |
| 89 | MA4921 | MA4924 | MA4927 | 89 | MA4971 | MA4974 | MA4977 |
| 95 | MA4922 | MA4925 | MA4928 | 95 | MA4972 | MA4975 | MA4978 |
| 102 | MA4931 | MA4934 | MA4937 | 102 | MA4981 | MA4984 | MA4987 |
| 108 | MA4932 | MA4935 | MA4938 | 108 | MA4982 | MA4985 | MA4988 |
| 114 | MA4941 | MA4944 | MA4947 | 114 | MA4991 | MA4994 | MA4997 |
| 121 | MA4942 | MA4945 | MA4948 | 121 | MA4992 | MA4995 | MA4998 |
| 127 | MA4951 | MA4954 | MA4957 | 127 | MA5002 | MA5005 | MA5008 |
| 152 | MA4952 | MA4955 | MA4958 | 152 | MA5011 | MA5014 | MA5017 |
|
8mm Round 51mm Overall Height M4 x 0.7 Threads |
8mm Round 51mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MA5021 | MA5024 | MA5027 | 76 | MA5042 | MA5045 | MA5048 |
| 102 | MA5022 | MA5025 | MA5028 | 102 | MA5051 | MA5054 | MA5057 |
| 127 | MA5031 | MA5034 | MA5037 | 127 | MA5052 | MA5055 | MA5058 |
| 140 | MA5032 | MA5035 | MA5038 | 140 | MA5061 | MA5064 | MA5067 |
| 152 | MA5041 | MA5044 | MA5047 | 152 | MA5062 | MA5065 | MA5068 |
|
8mm Round 57mm Overall Height M4 x 0.7 Threads |
8mm Round 57mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel | Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MA5071 | MA5074 | MA5077 | 102 | MA5132 | MA5135 | MA5138 |
| 108 | MA5072 | MA5075 | MA5078 | 108 | MA5141 | MA5144 | MA5147 |
| 114 | MA5081 | MA5084 | MA5087 | 114 | MA5142 | MA5145 | MA5148 |
| 121 | MA5082 | MA5085 | MA5088 | 121 | MA5151 | MA5154 | MA5157 |
| 127 | MA5091 | MA5094 | MA5097 | 127 | MA5152 | MA5155 | MA5158 |
| 152 | MA5092 | MA5095 | MA5098 | 152 | MA5161 | MA5164 | MA5167 |
| 178 | MA5102 | MA5105 | MA5108 | 178 | MA5162 | MA5165 | MA5168 |
| 203 | MA5111 | MA5114 | MA5117 | 203 | MA5171 | MA5174 | MA5177 |
| 229 | MA5121 | MA5124 | MA5127 | 229 | MA5172 | MA5175 | MA5178 |
| 241 | MA5122 | MA5125 | MA5128 | 241 | MA5181 | MA5184 | MA5187 |
| 254 | MA5131 | MA5134 | MA5137 | 254 | MA5182 | MA5185 | MA5188 |
|
8mm Round 76mm Overall Height M4 x 0.7 Threads |
8mm Round 76mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MA5191 | MA5194 | MA5197 | 102 | MA5271 | MA5274 | MA5277 |
| 127 | MA5192 | MA5195 | MA5198 | 127 | MA5272 | MA5275 | MA5278 |
| 133 | MA5202 | MA5205 | MA5208 | 133 | MA5281 | MA5284 | MA5287 |
| 138 | MA5211 | MA5214 | MA5217 | 138 | MA5282 | MA5285 | MA5288 |
| 140 | MA5221 | MA5224 | MA5227 | 140 | MA5291 | MA5294 | MA5297 |
| 146 | MA5222 | MA5225 | MA5228 | 146 | MA5292 | MA5295 | MA5298 |
| 152 | MA5231 | MA5234 | MA5237 | 152 | MA5302 | MA5305 | MA5308 |
| 165 | MA5232 | MA5235 | MA5238 | 165 | MA5311 | MA5314 | MA5317 |
| 178 | MA5241 | MA5244 | MA5247 | 178 | MA5321 | MA5324 | MA5327 |
| 190 | MA5242 | MA5245 | MA5248 | 190 | MA5322 | MA5325 | MA5328 |
| 203 | MA5251 | MA5254 | MA5257 | 203 | MA5331 | MA5334 | MA5337 |
| 229 | MA5252 | MA5255 | MA5258 | 229 | MA5332 | MA5335 | MA5338 |
| 254 | MA5261 | MA5264 | MA5267 | 254 | MA5341 | MA5344 | MA5347 |
| 305 | MA5262 | MA5265 | MA5268 | 305 | MA5342 | MA5345 | MA5348 |
|
8mm Round 89mm Overall Height M4 x 0.7 Threads |
8mm Round 89mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MA5351 | MA5354 | MA5357 | 76 | MA5391 | MA5394 | MA5397 |
| 102 | MA5352 | MA5355 | MA5358 | 102 | MA5392 | MA5395 | MA5398 |
| 127 | MA5361 | MA5364 | MA5367 | 127 | MA5402 | MA5405 | MA5408 |
| 152 | MA5362 | MA5365 | MA5368 | 152 | MA5411 | MA5414 | MA5417 |
| 178 | MA5371 | MA5374 | MA5377 | 178 | MA5421 | MA5424 | MA5427 |
| 203 | MA5372 | MA5375 | MA5378 | 203 | MA5422 | MA5425 | MA5428 |
| 229 | MA5381 | MA5384 | MA5387 | 229 | MA5431 | MA5434 | MA5437 |
| 254 | MA5382 | MA5385 | MA5388 | 254 | MA5432 | MA5435 | MA5438 |
|
8mm Round 102mm Overall Height M4 x 0.7 Threads |
8mm Round 102mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MA5441 | MA5444 | MA5447 | 76 | MA5481 | MA5484 | MA5487 |
| 102 | MA5442 | MA5445 | MA5448 | 102 | MA5482 | MA5485 | MA5488 |
| 127 | MA5451 | MA5454 | MA5457 | 127 | MA5491 | MA5494 | MA5497 |
| 157 | MA5452 | MA5455 | MA5458 | 157 | MA5492 | MA5495 | MA5498 |
| 178 | MA5461 | MA5464 | MA5467 | 178 | MA5502 | MA5505 | MA5508 |
| 203 | MA5462 | MA5465 | MA5468 | 203 | MA5511 | MA5514 | MA5517 |
| 229 | MA5471 | MA5474 | MA5477 | 229 | MA5521 | MA5524 | MA5527 |
| 254 | MA5472 | MA5475 | MA5478 | 254 | MA5522 | MA5525 | MA5528 |
|
8mm Round 127mm Overall Height M4 x 0.7 Threads |
8mm Round 127mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 102 | MA5531 | MA5534 | MA5537 | 102 | MA5572 | MA5575 | MA5578 |
| 127 | MA5532 | MA5535 | MA5538 | 127 | MA5581 | MA5584 | MA5587 |
| 152 | MA5541 | MA5544 | MA5547 | 152 | MA5582 | MA5585 | MA5588 |
| 178 | MA5542 | MA5545 | MA5548 | 178 | MA5591 | MA5594 | MA5597 |
| 203 | MA5551 | MA5554 | MA5557 | 203 | MA5592 | MA5595 | MA5598 |
| 229 | MA5552 | MA5555 | MA5558 | 229 | MA5602 | MA5605 | MA5608 |
| 254 | MA5561 | MA5564 | MA5567 | 254 | MA5611 | MA5614 | MA5617 |
| 279 | MA5562 | MA5565 | MA5568 | 279 | MA5621 | MA5624 | MA5627 |
| 305 | MA5571 | MA5574 | MA5577 | 305 | MA5622 | MA5625 | MA5628 |
 |
 |
||||||
|
Phone: 973-674-1700 Toll Free: 1-800-526-1389 Fax: 973-674-3803 |
|||||||
|
UNICORP is a leader in manufacturing stock and custom electronic hardware, handles and precision fasteners used by leading companies in nearly every industry since 1971.  291 Cleveland St, Orange, New Jersey 07050 USA Mailing Address: P.O. Box 280, Orange, New Jersey 07051-0280 USA Feedback I Legal Notice I Copyright I Services I Jobs I Contact Us I Email Us I Privacy Statement Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
| |||||||
