Metric Folding Handle 12.5mm x 6.3mm - Oval - 180° All Position - Internal Thread (MT - Series)  Back To Handles Page *External Thread has a 45 ° Angle on External Thread. Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
12.5mm x 6.3mm Oval 51mm Overall Height M4 x 0.7 Threads |
12.5mm x 6.3mm Oval 51mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MT1432 | MT1435 | MT1438 | 51 | MT1502 | MT1505 | MT1508 |
| 76 | MT1442 | MT1445 | MT1448 | 76 | MT1512 | MT1515 | MT1518 |
| 104 | MT1452 | MT1455 | MT1458 | 104 | MT1522 | MT1525 | MT1528 |
| 127 | MT1462 | MT1465 | MT1468 | 127 | MT1532 | MT1535 | MT1538 |
| 152 | MT1472 | MT1475 | MT1478 | 152 | MT1542 | MT1545 | MT1548 |
| 178 | MT1482 | MT1485 | MT1488 | 178 | MT1552 | MT1555 | MT1558 |
|
12.5mm x 6.3mm Oval 63mm Overall Height M4 x 0.7 Threads |
12.5mm x 6.3mm Oval 63mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MT1572 | MT1575 | MT1578 | 51 | MT1732 | MT1735 | MT1738 |
| 76 | MT1582 | MT1585 | MT1588 | 76 | MT1742 | MT1745 | MT1748 |
| 104 | MT1592 | MT1595 | MT1598 | 104 | MT1752 | MT1755 | MT1758 |
| 127 | MT1602 | MT1605 | MT1608 | 127 | MT1762 | MT1765 | MT1768 |
| 152 | MT1702 | MT1705 | MT1708 | 152 | MT1772 | MT1775 | MT1778 |
| 178 | MT1712 | MT1715 | MT1718 | 178 | MT1782 | MT1785 | MT1788 |
| 203 | MT1722 | MT1725 | MT1728 | 203 | MT1792 | MT1795 | MT1798 |
|
12.5mm x 6.3mm Oval 76mm Overall Height M4 x 0.7 Threads |
12.5mm x 6.3mm Oval 76mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 51 | MT1802 | MT1805 | MT1808 | 51 | MT1872 | MT1875 | MT1878 |
| 76 | MT1812 | MT1815 | MT1818 | 76 | MT1882 | MT1885 | MT1888 |
| 104 | MT1822 | MT1825 | MT1828 | 104 | MT1892 | MT1895 | MT1898 |
| 127 | MT1832 | MT1835 | MT1838 | 127 | MT1902 | MT1905 | MT1908 |
| 152 | MT1842 | MT1845 | MT1848 | 152 | MT1912 | MT1915 | MT1918 |
| 178 | MT1852 | MT1855 | MT1858 | 178 | MT1922 | MT1925 | MT1928 |
| 203 | MT1862 | MT1865 | MT1868 | 203 | MT1932 | MT1935 | MT1938 |

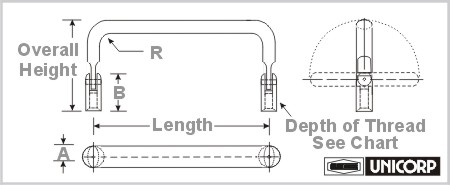

| Material Diameter | A | B | R | ||||
|
11 x 7 12.5 x 6.3 16 x 7 16 x 9 |
11 13 16 16 |
22 24 26 26 |
13 13 13 13 |
||||
 |
 |
||||||
|
