Metric Folding Handle 16mm x 9mm - Oval - 180° Three Position - External Thread (MS - Series) (Shipped with Nuts and Washers)  Back To Handles Page *External Thread has a 45 ° Angle on External Thread. Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
16mm x 9mm Oval 43mm Overall Height M8 x 1 Threads |
16mm x 9mm Oval 43mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MS3922 | MS3925 | MS3928 | 76 | MS4002 | MS4005 | MS4008 |
| 102 | MS3932 | MS3935 | MS3938 | 102 | MS4012 | MS4015 | MS4018 |
| 108 | MS3942 | MS3945 | MS3948 | 108 | MS4022 | MS4025 | MS4028 |
| 114 | MS3952 | MS3955 | MS3958 | 114 | MS4032 | MS4035 | MS4038 |
| 127 | MS3962 | MS3965 | MS3968 | 127 | MS4042 | MS4045 | MS4048 |
| 152 | MS3972 | MS3975 | MS3978 | 152 | MS4052 | MS4055 | MS4058 |
| 178 | MS3982 | MS3985 | MS3988 | 178 | MS4062 | MS4065 | MS4068 |
| 203 | MS3992 | MS3995 | MS3998 | 203 | MS4072 | MS4075 | MS4078 |
|
16mm x 9mm Oval 45mm Overall Height M8 x 1 Threads |
16mm x 9mm Oval 45mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MS4082 | MS4085 | MS4088 | 76 | MS4162 | MS4165 | MS4168 |
| 102 | MS4092 | MS4095 | MS4098 | 102 | MS4172 | MS4175 | MS4178 |
| 108 | MS4102 | MS4105 | MS4108 | 108 | MS4182 | MS4185 | MS4188 |
| 114 | MS4112 | MS4115 | MS4118 | 114 | MS4192 | MS4195 | MS4198 |
| 127 | MS4122 | MS4125 | MS4128 | 127 | MS4202 | MS4205 | MS4208 |
| 152 | MS4132 | MS4135 | MS4138 | 152 | MS4212 | MS4215 | MS4218 |
| 178 | MS4142 | MS4145 | MS4148 | 178 | MS4222 | MS4225 | MS4228 |
| 203 | MS4152 | MS4155 | MS4158 | 203 | MS4232 | MS4235 | MS4238 |
|
16mm x 9mm Oval 47mm Overall Height M8 x 1 Threads |
16mm x 9mm Oval 47mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MS4242 | MS4245 | MS4248 | 76 | MS4322 | MS4325 | MS4328 |
| 102 | MS4252 | MS4255 | MS4258 | 102 | MS4332 | MS4335 | MS4338 |
| 108 | MS4262 | MS4265 | MS4268 | 108 | MS4342 | MS4345 | MS4348 |
| 114 | MS4272 | MS4275 | MS4278 | 114 | MS4352 | MS4355 | MS4358 |
| 127 | MS4282 | MS4285 | MS4288 | 127 | MS4362 | MS4365 | MS4368 |
| 152 | MS4292 | MS4295 | MS4298 | 152 | MS4372 | MS4375 | MS4378 |
| 178 | MS4302 | MS4305 | MS4308 | 178 | MS4382 | MS4385 | MS4388 |
| 203 | MS4312 | MS4315 | MS4318 | 203 | MS4392 | MS4395 | MS4398 |
|
16mm x 9mm Oval 54mm Overall Height M8 x 1 Threads |
16mm x 9mm Oval 54mm Overall Height M10 x 1.5 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MS4402 | MS4405 | MS4408 | 76 | MS4482 | MS4485 | MS4488 |
| 102 | MS4412 | MS4415 | MS4418 | 102 | MS4492 | MS4495 | MS4498 |
| 108 | MS4422 | MS4425 | MS4428 | 108 | MS4502 | MS4505 | MS4508 |
| 114 | MS4432 | MS4435 | MS4438 | 114 | MS4512 | MS4515 | MS4518 |
| 127 | MS4442 | MS4445 | MS4448 | 127 | MS4522 | MS4525 | MS4528 |
| 152 | MS4452 | MS4455 | MS4458 | 152 | MS4532 | MS4535 | MS4538 |
| 178 | MS4462 | MS4465 | MS4468 | 178 | MS4542 | MS4545 | MS4548 |
| 203 | MS4472 | MS4475 | MS4478 | 203 | MS4552 | MS4555 | MS4558 |

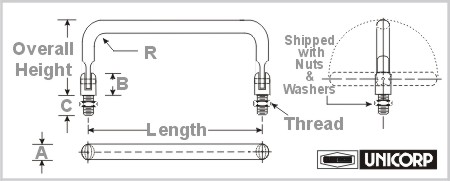

| Material Diameter | A | B | C | R | |||
|
11 x 7 12.5 x 6.3 16 x 7 16 x 9 |
11 13 16 16 |
14 16 19 19 |
16 16 16 16 |
13 13 13 13 |
|||
 |
 |
||||||
|
