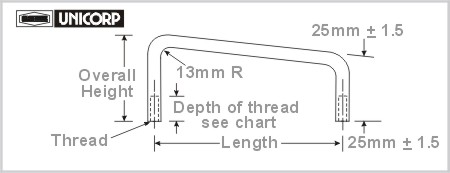

Metric Slanted Pull Handle 8mm - Round - Internal Thread (MJ - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
8mm Round 38mm Overall Height M4 x 0.7 Threads |
8mm Round 38mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MJ1012 | MJ1015 | MJ1018 | 76 | MJ1082 | MJ1085 | MJ1088 |
| 89 | MJ1022 | MJ1025 | MJ1028 | 89 | MJ1092 | MJ1095 | MJ1098 |
| 102 | MJ1032 | MJ1035 | MJ1038 | 102 | MJ1102 | MJ1105 | MJ1108 |
| 114 | MJ1042 | MJ1045 | MJ1048 | 114 | MJ1112 | MJ1115 | MJ1118 |
| 127 | MJ2242 | MJ2245 | MJ2248 | 127 | MJ1122 | MJ1125 | MJ1128 |
| 152 | MJ1052 | MJ1055 | MJ1058 | 152 | MJ1132 | MJ1135 | MJ1138 |
| 165 | MJ1062 | MJ1065 | MJ1068 | 165 | MJ1142 | MJ1145 | MJ1148 |
| 178 | MJ1072 | MJ1075 | MJ1078 | 178 | MJ1152 | MJ1155 | MJ1158 |
|
8mm Round 41mm Overall Height M4 x 0.7 Threads |
8mm Round 41mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MJ1162 | MJ1165 | MJ1168 | 76 | MJ1242 | MJ1245 | MJ1248 |
| 89 | MJ1172 | MJ1175 | MJ1178 | 89 | MJ1252 | MJ1255 | MJ1258 |
| 102 | MJ1182 | MJ1185 | MJ1188 | 102 | MJ1262 | MJ1265 | MJ1268 |
| 114 | MJ1192 | MJ1195 | MJ1198 | 114 | MJ1272 | MJ1275 | MJ1278 |
| 127 | MJ1202 | MJ1205 | MJ1208 | 127 | MJ1282 | MJ1285 | MJ1288 |
| 152 | MJ1212 | MJ1215 | MJ1218 | 152 | MJ1292 | MJ1295 | MJ1298 |
| 165 | MJ1222 | MJ1225 | MJ1228 | 165 | MJ1302 | MJ1305 | MJ1308 |
| 178 | MJ1232 | MJ1235 | MJ1238 | 178 | MJ1312 | MJ1315 | MJ1318 |
|
8mm Round 44mm Overall Height M4 x 0.7 Threads |
8mm Round 44mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MJ1322 | MJ1325 | MJ1328 | 76 | MJ1402 | MJ1405 | MJ1408 |
| 89 | MJ1332 | MJ1335 | MJ1338 | 89 | MJ1412 | MJ1415 | MJ1418 |
| 102 | MJ1342 | MJ1345 | MJ1348 | 102 | MJ1422 | MJ1425 | MJ1428 |
| 114 | MJ1352 | MJ1355 | MJ1358 | 114 | MJ1432 | MJ1435 | MJ1438 |
| 127 | MJ1362 | MJ1365 | MJ1368 | 127 | MJ1442 | MJ1445 | MJ1448 |
| 152 | MJ1372 | MJ1375 | MJ1378 | 152 | MJ1452 | MJ1455 | MJ1458 |
| 165 | MJ1382 | MJ1385 | MJ1388 | 165 | MJ1462 | MJ1465 | MJ1468 |
| 178 | MJ1392 | MJ1395 | MJ1398 | 178 | MJ1472 | MJ1475 | MJ1478 |
|
8mm Round 51mm Overall Height M4 x 0.7 Threads |
8mm Round 51mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MJ1482 | MJ1485 | MJ1488 | 76 | MJ1562 | MJ1565 | MJ1568 |
| 89 | MJ1492 | MJ1495 | MJ1498 | 89 | MJ1572 | MJ1575 | MJ1578 |
| 102 | MJ1502 | MJ1505 | MJ1508 | 102 | MJ1582 | MJ1585 | MJ1588 |
| 114 | MJ1512 | MJ1515 | MJ1518 | 114 | MJ1592 | MJ1595 | MJ1598 |
| 127 | MJ1522 | MJ1525 | MJ1528 | 127 | MJ1602 | MJ1605 | MJ1608 |
| 152 | MJ1532 | MJ1535 | MJ1538 | 152 | MJ1612 | MJ1615 | MJ1618 |
| 165 | MJ1542 | MJ1545 | MJ1548 | 165 | MJ1622 | MJ1625 | MJ1628 |
| 178 | MJ1552 | MJ1555 | MJ1558 | 178 | MJ1632 | MJ1635 | MJ1638 |
 |
 |
||||||
|
