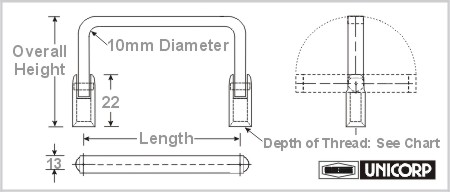

Metric Folding Handle 13mm x 5mm - Rectangular - 180° All Position - Internal Thread (MW - Series)  Back To Handles Page *External Thread has a 45 ° Angle on External Thread. Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
13mm x 5mm Rectangular 38mm Overall Height M4 x 0.7 Threads |
13mm x 5mm Rectangular 38mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MW1012 | MW1015 | MW1018 | 76 | MW1132 | MW1135 | MW1138 |
| 89 | MW1022 | MW1025 | MW1028 | 89 | MW1142 | MW1145 | MW1148 |
| 104 | MW1032 | MW1035 | MW1038 | 104 | MW1152 | MW1155 | MW1158 |
| 108 | MW1042 | MW1045 | MW1048 | 108 | MW1162 | MW1165 | MW1168 |
| 114 | MW1052 | MW1055 | MW1058 | 114 | MW1172 | MW1175 | MW1178 |
| 127 | MW1062 | MW1065 | MW1068 | 127 | MW1182 | MW1185 | MW1188 |
| 140 | MW1072 | MW1075 | MW1078 | 140 | MW1192 | MW1195 | MW1198 |
| 152 | MW1082 | MW1185 | MW1188 | 152 | MW1202 | MW1205 | MW1208 |
| 178 | MW1092 | MW1095 | MW1098 | 178 | MW1212 | MW1215 | MW1218 |
| 203 | MW1102 | MW1105 | MW1108 | 203 | MW1222 | MW1225 | MW1228 |
| 229 | MW1112 | MW1115 | MW1118 | 229 | MW1232 | MW1235 | MW1238 |
| 254 | MW1122 | MW1125 | MW1128 | 254 | MW1242 | MW1245 | MW1248 |
|
13mm x 5mm Rectangular 51mm Overall Height M4 x 0.7 Threads |
13mm x 5mm Rectangular 51mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MW1252 | MW1255 | MW1258 | 76 | MW1372 | MW1375 | MW1378 |
| 89 | MW1262 | MW1265 | MW1268 | 89 | MW1382 | MW1385 | MW1388 |
| 104 | MW1272 | MW1275 | MW1278 | 104 | MW1392 | MW1395 | MW1398 |
| 108 | MW1282 | MW1285 | MW1288 | 108 | MW1402 | MW1405 | MW1408 |
| 114 | MW1292 | MW1295 | MW1298 | 114 | MW1412 | MW1415 | MW1418 |
| 127 | MW1302 | MW1305 | MW1308 | 127 | MW1422 | MW1425 | MW1428 |
| 140 | MW1312 | MW1315 | MW1318 | 140 | MW1432 | MW1435 | MW1438 |
| 152 | MW1322 | MW1325 | MW1328 | 152 | MW1442 | MW1445 | MW1448 |
| 178 | MW1332 | MW1335 | MW1338 | 178 | MW1452 | MW1455 | MW1458 |
| 203 | MW1342 | MW1345 | MW1348 | 203 | MW1462 | MW1465 | MW1468 |
| 229 | MW1352 | MW1355 | MW1358 | 229 | MW1472 | MW1475 | MW1478 |
| 254 | MW1362 | MW1365 | MW1368 | 254 | MW1482 | MW1485 | MW1488 |
|
13mm x 5mm Rectangular 52mm Overall Height M4 x 0.7 Threads |
13mm x 5mm Rectangular 52mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MW1492 | MW1495 | MW1498 | 76 | MW1612 | MW1615 | MW1618 |
| 89 | MW1502 | MW1505 | MW1508 | 89 | MW1622 | MW1625 | MW1628 |
| 104 | MW1512 | MW1515 | MW1518 | 104 | MW1632 | MW1635 | MW1638 |
| 108 | MW1522 | MW1525 | MW1528 | 108 | MW1642 | MW1645 | MW1648 |
| 114 | MW1532 | MW1535 | MW1538 | 114 | MW1652 | MW1655 | MW1658 |
| 127 | MW1542 | MW1545 | MW1548 | 127 | MW1662 | MW1665 | MW1668 |
| 140 | MW1552 | MW1555 | MW1558 | 140 | MW1672 | MW1675 | MW1678 |
| 152 | MW1562 | MW1565 | MW1568 | 152 | MW1682 | MW1685 | MW1688 |
| 178 | MW1572 | MW1575 | MW1578 | 178 | MW1692 | MW1695 | MW1698 |
| 203 | MW1582 | MW1585 | MW1588 | 203 | MW1702 | MW1705 | MW1708 |
| 229 | MW1592 | MW1595 | MW1598 | 229 | MW1712 | MW1715 | MW1718 |
| 254 | MW1602 | MW1605 | MW1608 | 254 | MW1722 | MW1725 | MW1728 |
|
13mm x 5mm Rectangular 63mm Overall Height M4 x 0.7 Threads |
13mm x 5mm Rectangular 63mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MW1732 | MW1735 | MW1738 | 76 | MW1852 | MW1855 | MW1858 |
| 89 | MW1742 | MW1745 | MW1748 | 89 | MW1862 | MW1865 | MW1868 |
| 104 | MW1752 | MW1755 | MW1758 | 104 | MW1872 | MW1875 | MW1878 |
| 108 | MW1762 | MW1765 | MW1768 | 108 | MW1882 | MW1885 | MW1888 |
| 114 | MW1772 | MW1775 | MW1778 | 114 | MW1892 | MW1895 | MW1898 |
| 127 | MW1782 | MW1785 | MW1788 | 127 | MW1902 | MW1905 | MW1908 |
| 140 | MW1792 | MW1795 | MW1798 | 140 | MW1912 | MW1915 | MW1918 |
| 152 | MW1802 | MW1805 | MW1808 | 152 | MW1922 | MW1925 | MW1928 |
| 178 | MW1812 | MW1815 | MW1818 | 178 | MW1932 | MW1935 | MW1938 |
| 203 | MW1822 | MW1825 | MW1828 | 203 | MW1942 | MW1945 | MW1948 |
| 229 | MW1832 | MW1835 | MW1838 | 229 | MW1952 | MW1955 | MW1958 |
| 254 | MW1842 | MW1845 | MW1848 | 254 | MW1962 | MW1965 | MW1968 |
 |
 |
||||||
|
