Swage Standoffs
Swage Spacers & Swaging Tools
Part Numbers:  (SS100 thru SS628) Threaded
(SU101 thru SU481) Unthreaded
Punch: (UP1 thru UP5)   Anvil: (AN100 thru AN630)





       Build Your Part #
       Material & Shape
       Shank Length

Swage Standoffs (Threaded)


       Plating & Finishes
       Thread Depth

Select From These American Standard Dimensions (inches)


       All Technical Data
  Select Size Part Numbers

1/8" Swage-Threaded SS100-SS114
5/32" Swage-Threaded SS120-SS142
3/16" Swage-Threaded SS150-SS232
1/4" Swage-Threaded SS240-SS378
5/16" Swage-Threaded SS400-SS528
3/8" Swage-Threaded SS540-SS628


       Worksheet Helper
       Conversion Chart
       Metric Swage / Rivet




 Swage Standoffs
 Swage Spacers

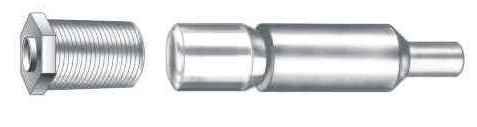

Punch & Anvil for Swage Standoffs


Part Numbers for Punch: UP1 thru UP5 / Anvil: AN100 thru AN630
Tooling: Punch & Anvil Part Numbers for Threaded






Punch & Anvil

Swage Spacers (Unthreaded - Clear Hole)



Select From These American Standard Dimensions (inches)


  Select Size Part Numbers

1/8"Swage-Unthreaded SU101-SU121
5/32"Swage-Unthreaded SU131-SU151
3/16"Swage-Unthreaded SU161-SU221
1/4"Swage-Unthreaded SU231-SU321
5/16"Swage-Unthreaded SU331-SU421
3/8"Swage-Unthreaded SU431-SU481









Punch & Anvil for Swage Spacers
Part Numbers for Punch: UP1 thru UP5 / Anvil: AN100 thru AN630
Tooling: Punch & Anvil Part Numbers for Unthreaded




  DIAMETER:  1/8" / 5/32" / 3/16" / 1/4" / 5/16" / 3/8"
SHAPE:  Round and Hex
MATERIAL:  Brass, Aluminum, Stainless Steel, Carbon Steel
BODY LENGTH:  Wide variety of lengths- 1/32" (.031) increments up to 1"
SHANK LENGTH:  Wide variety of lengths ranging from .062 through .295
FINISH:  Available in 28 finishes - See Chart
THREAD:  0-80 through 10-32 / Internal Thread- Class UNC 2B
INSIDE HOLE DIAMETER:  Ranging from .063 through .194 for screw sizes
0-80 through 10-32
TOLERANCE:  Body Length:  ± .005  / Shank Length:  ± .003 Inside Hole Diameter:  + .000 - .003
Diameter: Standard commercial bar stock tolerances

MODIFIED PARTS- ENGINEERING ASSISTANCE:
      We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department. Contact Us

      Swage Standoffs & Swage Spacers 1/8" thru 3/8", 3mm thru 10mm- Lengths: 1/32" thru 1", .5mm up to 51mm- Shank Lengths: .062 thru .295.
      Unicorp swages round- hex, 28 finishes, available in brass, aluminum, stainless steel, carbon steel.  An inexpensive method of spacing or mounting electronic circuit boards and electronic components.

      After installation they are permanently affixed to the board and further assembly becomes simplified.  Installation is accomplished by using any means of force.  Normal equipment, such as an arbor press, punch press, are most commonly used.  If swaging is planned, the hole must be countersunk.  For rivet type installation, an ordinary drilled or punched hole, of the correct diameter, is adequate.  Available in both threaded and unthreaded / clear hole types.
