1/4" Swage Spacers (Unthreaded / Clear Hole)
Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Hole Clearance
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages

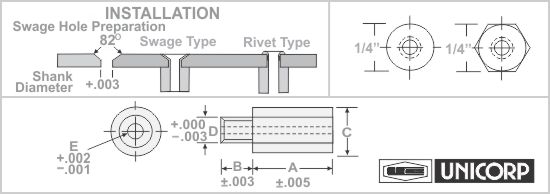

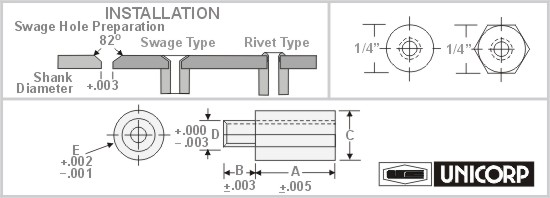

1/4" - Major Diameter x .138 Shank x .113 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU231 .125 * .250 .138 .113 SU242 .469 * .250 .138 .113
SU232 .156 * .250 .138 .113 SU243 .500 * .250 .138 .113
SU233 .187 * .250 .138 .113 SU244 .562 * .250 .138 .113
SU234 .218 * .250 .138 .113 SU245 .625 * .250 .138 .113
SU235 .250 * .250 .138 .113 SU246 .687 * .250 .138 .113
SU236 .281 * .250 .138 .113 SU247 .750 * .250 .138 .113
SU237 .312 * .250 .138 .113 SU248 .812 * .250 .138 .113
SU238 .343 * .250 .138 .113 SU249 .875 * .250 .138 .113
SU239 .375 * .250 .138 .113 SU250 .937 * .250 .138 .113
SU240 .406 * .250 .138 .113 SU251 1.000 * .250 .138 .113
SU241 .437 * .250 .138 .113
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
1/4"
Diameter		 UP4 AN220 AN520 .125" -.218"

  SU231 -SU234
UP4 AN230 AN530 .250" -.469"

  SU235 -SU242
UP4 AN240 AN540 .500" -.687"

  SU243 -SU246
UP4 AN250 AN550 .750" -  1"

  SU247 -SU251
1/4" - Major Diameter x .159 Shank x .129 Inside Diameter
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU261 .125 * .250 .159 .129 SU272 .469 * .250 .159 .129
SU262 .156 * .250 .159 .129 SU273 .500 * .250 .159 .129
SU263 .187 * .250 .159 .129 SU274 .562 * .250 .159 .129
SU264 .218 * .250 .159 .129 SU275 .625 * .250 .159 .129
SU265 .250 * .250 .159 .129 SU276 .687 * .250 .159 .129
SU266 .281 * .250 .159 .129 SU277 .750 * .250 .159 .129
SU267 .312 * .250 .159 .129 SU278 .812 * .250 .159 .129
SU268 .343 * .250 .159 .129 SU279 .875 * .250 .159 .129
SU269 .375 * .250 .159 .129 SU280 .937 * .250 .159 .129
SU270 .406 * .250 .159 .129 SU281 1.000 * .250 .159 .129
SU271 .437 * .250 .159 .129
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
1/4"
Diameter		 UP4 AN220 AN520 .125" -.218"

  SU261 -SU264
UP4 AN230 AN530 .250" -.469"

  SU265 -SU272
UP4 AN240 AN540 .500" -.687"

  SU273 -SU276
UP4 AN250 AN550 .750" -  1"

  SU277 -SU281
1/4" - Major Diameter x .187 Shank x .159 Inside Diameter
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU301 .125 * .250 .187 .159 SU312 .469 * .250 .187 .159
SU302 .156 * .250 .187 .159 SU313 .500 * .250 .187 .159
SU303 .187 * .250 .187 .159 SU314 .562 * .250 .187 .159
SU304 .218 * .250 .187 .159 SU315 .625 * .250 .187 .159
SU305 .250 * .250 .187 .159 SU316 .687 * .250 .187 .159
SU306 .281 * .250 .187 .159 SU317 .750 * .250 .187 .159
SU307 .312 * .250 .187 .159 SU318 .812 * .250 .187 .159
SU308 .343 * .250 .187 .159 SU319 .875 * .250 .187 .159
SU309 .375 * .250 .187 .159 SU320 .937 * .250 .187 .159
SU310 .406 * .250 .187 .159 SU321 1.000 * .250 .187 .159
SU311 .437 * .250 .187 .159
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
1/4"
Diameter		 UP4 AN220 AN520 .125" -.218"

  SU301 -SU304
UP4 AN230 AN530 .250" -.469"

  SU305 -SU312
UP4 AN240 AN540 .500" -.687"

  SU313 -SU316
UP4 AN250 AN550 .750" -  1"

  SU317 -SU321
