5/32" Swage Standoffs (Threaded)

Back To Swage Standoffs Page

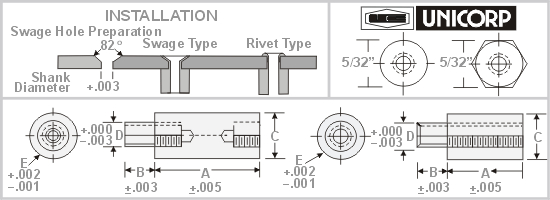

*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Depth of Thread
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages
5/32" - Major Diameter x .125 Shank x 2- 56 Thread
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS120 .062 * .156 .125 .098 2- 56 SS132 .437 * .156 .125 .098 2- 56
SS121 .093 * .156 .125 .098 2- 56 SS133 .469 * .156 .125 .098 2- 56
SS122 .125 * .156 .125 .098 2- 56 SS134 .500 * .156 .125 .098 2- 56
SS123 .156 * .156 .125 .098 2- 56 SS135 .562 * .156 .125 .098 2- 56
SS124 .187 * .156 .125 .098 2- 56 SS136 .625 * .156 .125 .098 2- 56
SS125 .218 * .156 .125 .098 2- 56 SS137 .687 * .156 .125 .098 2- 56
SS126 .250 * .156 .125 .098 2- 56 SS138 .750 * .156 .125 .098 2- 56
SS127 .281 * .156 .125 .098 2- 56 SS139 .812 * .156 .125 .098 2- 56
SS128 .312 * .156 .125 .098 2- 56 SS140 .875 * .156 .125 .098 2- 56
SS129 .343 * .156 .125 .098 2- 56 SS141 .937 * .156 .125 .098 2- 56
SS130 .375 * .156 .125 .098 2- 56 SS142 1.000 * .156 .125 .098 2- 56
SS131 .406 * .156 .125 .098 2- 56
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
5/32" Diameter UP2 AN140 AN440 .062" -.218" SS120 -SS125
UP2 AN150 AN450 .250" -.469" SS126 -SS133
UP2 AN160 AN460 .500" - .687" SS134 - SS137
UP2 AN170 AN470 .750" -1" SS138 -SS142
