5/16" Swage Spacers (Unthreaded / Clear Hole)
Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Hole Clearance
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages

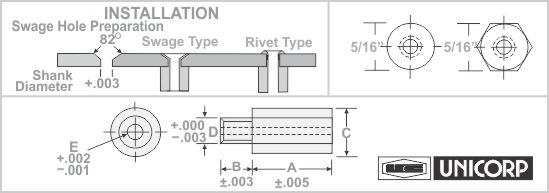

5/16" -  Major Diameter x .187 Shank x .150 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU331 .125 * .312 .187 .150 SU342 .469 * .312 .187 .150
SU332 .156 * .312 .187 .150 SU343 .500 * .312 .187 .150
SU333 .187 * .312 .187 .150 SU344 .562 * .312 .187 .150
SU334 .218 * .312 .187 .150 SU345 .625 * .312 .187 .150
SU335 .250 * .312 .187 .150 SU346 .687 * .312 .187 .150
SU336 .281 * .312 .187 .150 SU347 .750 * .312 .187 .150
SU337 .312 * .312 .187 .150 SU348 .812 * .312 .187 .150
SU338 .343 * .312 .187 .150 SU349 .875 * .312 .187 .150
SU339 .375 * .312 .187 .150 SU350 .937 * .312 .187 .150
SU340 .406 * .312 .187 .150 SU351 1.000 * .312 .187 .150
SU341 .437 * .312 .187 .150
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
5/16"
Diameter		 UP5 AN260 AN560 .125" - .218"

  SU331 - SU334
UP5 AN270 AN570 .250" - .469"

  SU335 - SU342
UP5 AN280 AN580 .500" - .687"

  SU343 - SU346
UP5 AN290 AN590 .750" -  1"

  SU347 - SU351

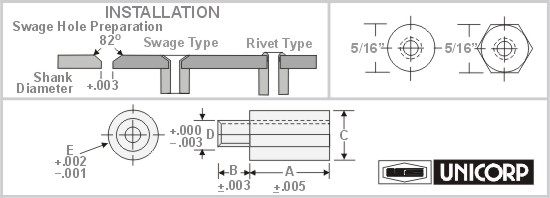

5/16" -  Major Diameter x .209 Shank x .171 Inside Diameter
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU361 .125 * .312 .209 .171 SU372 .469 * .312 .209 .171
SU362 .156 * .312 .209 .171 SU373 .500 * .312 .209 .171
SU363 .187 * .312 .209 .171 SU374 .562 * .312 .209 .171
SU364 .218 * .312 .209 .171 SU375 .625 * .312 .209 .171
SU365 .250 * .312 .209 .171 SU376 .687 * .312 .209 .171
SU366 .281 * .312 .209 .171 SU377 .750 * .312 .209 .171
SU367 .312 * .312 .209 .171 SU378 .812 * .312 .209 .171
SU368 .343 * .312 .209 .171 SU379 .875 * .312 .209 .171
SU369 .375 * .312 .209 .171 SU380 .937 * .312 .209 .171
SU370 .406 * .312 .209 .171 SU381 1.000 * .312 .209 .171
SU371 .437 * .312 .209 .171
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
5/16"
Diameter		 UP5 AN260 AN560 .125" - .218"

  SU361 - SU364
UP5 AN270 AN570 .250" - .469"

  SU365 - SU372
UP5 AN280 AN580 .500" - .687"

  SU373 - SU376
UP5 AN290 AN590 .750" - 1"

  SU377 - SU381
5/16" -  Major Diameter x .228 Shank x .194 Inside Diameter
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU401 .125 * .312 .228 .194 SU412 .469 * .312 .228 .194
SU402 .156 * .312 .228 .194 SU413 .500 * .312 .228 .194
SU403 .187 * .312 .228 .194 SU414 .562 * .312 .228 .194
SU404 .218 * .312 .228 .194 SU415 .625 * .312 .228 .194
SU405 .250 * .312 .228 .194 SU416 .687 * .312 .228 .194
SU406 .281 * .312 .228 .194 SU417 .750 * .312 .228 .194
SU407 .312 * .312 .228 .194 SU418 .812 * .312 .228 .194
SU408 .343 * .312 .228 .194 SU419 .875 * .312 .228 .194
SU409 .375 * .312 .228 .194 SU420 .937 * .312 .228 .194
SU410 .406 * .312 .228 .194 SU421 1.000 * .312 .228 .194
SU411 .437 * .312 .228 .194

Swage Tooling For:

 Punch Round Anvil Hex Anvil Length Unicorp
Part Number
5/16"
Diameter		 UP5 AN260 AN560 .125" - .218"

  SU401 - SU404
UP5 AN270 AN570 .250" - .469"

  SU405 - SU412
UP5 AN280 AN580 .500" - .687"

  SU413 - SU416

UP5 AN290 AN590 .750" -  1"

  SU417 - SU421
