3/8" Swage Standoffs (Threaded)

Back To Swage Standoffs Page

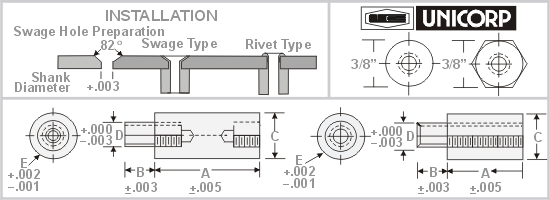

*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
   Shank Length		   Depth of Thread
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
   Conversion Chart
  Metric Swages
  American Standard Swages
3/8" - Major Diameter x .234 Shank  x  6- 32 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS540 .125 * .375 .234 .201 6- 32 SS555 .687 * .375 .234 .201 6- 32
SS541 .156 * .375 .234 .201 6- 32 SS556 .750 * .375 .234 .201 6- 32
SS542 .187 * .375 .234 .201 6- 32 SS557 .812 * .375 .234 .201 6- 32
SS543 .218 * .375 .234 .201 6- 32 SS558 .875 * .375 .234 .201 6- 32
SS544 .250 * .375 .234 .201 6- 32 SS559 .937 * .375 .234 .201 6- 32
SS545 .281 * .375 .234 .201 6- 32 SS560 1.000 * .375 .234 .201 6- 32
SS546 .312 * .375 .234 .201 6- 32 SS561 1.125 * .375 .234 .201 6- 32
SS547 .343 * .375 .234 .201 6- 32 SS562 1.250 * .375 .234 .201 6- 32
SS548 .375 * .375 .234 .201 6- 32 SS563 .375 * .375 .234 .201 6- 32
SS549 .406 * .375 .234 .201 6- 32 SS564 1.500 * .375 .234 .201 6- 32
SS550 .437 * .375 .234 .201 6- 32 SS565 1.625 * .375 .234 .201 6- 32
SS551 .469 * .375 .234 .201 6- 32 SS566 1.750 * .375 .234 .201 6- 32
SS552 .500 * .375 .234 .201 6- 32 SS567 1.875 * .375 .234 .201 6- 32
SS553 .562 * .375 .234 .201 6- 32 SS568 2.000 * .375 .234 .201 6- 32
SS554 .625 * .375 .234 .201 6- 32
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
3/8"
Diameter		 UP 5 AN300 AN600 .125" - .218"

SS540 - SS543
UP 5 AN310 AN610 .250" - .469"

SS544 - SS551
UP5 AN320 AN620 .500" - .687"

SS552 - SS555
UP5 AN330 AN630 .750" - 2"

SS556 - SS568
3/8" - Major Diameter x .234 Shank  x  8- 32 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS570 .125 * .375 .234 .201 8- 32 SS585 .687 * .375 .234 .201 8- 32
SS571 .156 * .375 .234 .201 8- 32 SS586 .750 * .375 .234 .201 8- 32
SS572 .187 * .375 .234 .201 8- 32 SS587 .812 * .375 .234 .201 8- 32
SS573 .218 * .375 .234 .201 8- 32 SS588 .875 * .375 .234 .201 8- 32
SS574 .250 * .375 .234 .201 8- 32 SS589 .937 * .375 .234 .201 8- 32
SS575 .281 * .375 .234 .201 8- 32 SS590 1.000 * .375 .234 .201 8- 32
SS576 .312 * .375 .234 .201 8- 32 SS591 1.125 * .375 .234 .201 8- 32
SS577 .343 * .375 .234 .201 8- 32 SS592 1.250 * .375 .234 .201 8- 32
SS578 .375 * .375 .234 .201 8- 32 SS593 1.375 * .375 .234 .201 8- 32
SS579 .406 * .375 .234 .201 8- 32 SS594 1.500 * .375 .234 .201 8- 32
SS580 .437 * .375 .234 .201 8- 32 SS595 1.625 * .375 .234 .201 8- 32
SS581 .469 * .375 .234 .201 8- 32 SS596 1.750 * .375 .234 .201 8- 32
SS582 .500 * .375 .234 .201 8- 32 SS597 1.875 * .375 .234 .201 8- 32
SS583 .562 * .375 .234 .201 8- 32 SS598 2.000 * .375 .234 .201 8- 32
SS584 .625 * .375 .234 .201 8- 32
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
3/8"
Diameter		 UP5 AN300 AN600 .125" - .218"

SS570 - SS573

UP5 AN310 AN610 .250" - .469"

SS574 - SS581

UP5 AN320 AN620 .500" - .687"

SS582 - SS585

UP5 AN330 AN630 .750" - 2"

SS586 - SS598
3/8" - Major Diameter x .234 Shank  x  10- 32 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS600 .125 * .375 .234 .201 10- 32 SS615 .687 * .375 .234 .201 10- 32
SS601 .156 * .375 .234 .201 10- 32 SS616 .750 * .375 .234 .201 10- 32
SS602 .187 * .375 .234 .201 10- 32 SS617 .812 * .375 .234 .201 10- 32
SS603 .218 * .375 .234 .201 10- 32 SS618 .875 * .375 .234 .201 10- 32
SS604 .250 * .375 .234 .201 10- 32 SS619 .937 * .375 .234 .201 10- 32
SS605 .281 * .375 .234 .201 10- 32 SS620 1.000 * .375 .234 .201 10- 32
SS606 .312 * .375 .234 .201 10- 32 SS621 1.125 * .375 .234 .201 10- 32
SS607 .343 * .375 .234 .201 10- 32 SS622 1.250 * .375 .234 .201 10- 32
SS608 .375 * .375 .234 .201 10- 32 SS623 1.375 * .375 .234 .201 10- 32
SS609 .406 * .375 .234 .201 10- 32 SS624 1.500 * .375 .234 .201 10- 32
SS610 .437 * .375 .234 .201 10- 32 SS625 1.625 * .375 .234 .201 10- 32
SS611 .469 * .375 .234 .201 10- 32 SS626 1.750 * .375 .234 .201 10- 32
SS612 .500 * .375 .234 .201 10- 32 SS627 1.875 * .375 .234 .201 10- 32
SS613 .562 * .375 .234 .201 10- 32 SS628 2.000 * .375 .234 .201 10- 32
SS614 .625 * .375 .234 .201 10- 32
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
3/8"
Diameter		 UP5 AN300 AN600 .125" - .218"

SS600 - SS603
UP5 AN310 AN610 .250" - .469"

SS604 - SS611
UP5 AN320 AN620 .500" - .687"

SS612 - SS615
UP5 AN330 AN630 .750" - 2"

SS616 - SS628
