1/8" Swage Spacers (Unthreaded / Clear Hole)

Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Hole Clearance
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages

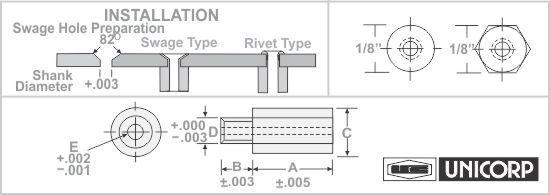

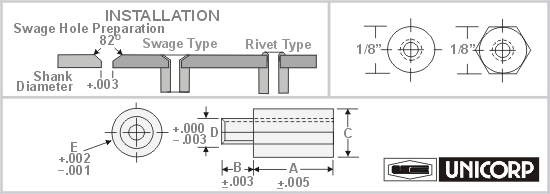

1/8" - Major Diameter x .090 Shank x .063 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU101 .125 * .125 .090 .063 SU112 .469 * .125 .090 .063
SU102 .156 * .125 .090 .063 SU113 .500 * .125 .090 .063
SU103 .187 * .125 .090 .063 SU114 .562 * .125 .090 .063
SU104 .218 * .125 .090 .063 SU115 .625 * .125 .090 .063
SU105 .250 * .125 .090 .063 SU116 .687 * .125 .090 .063
SU106 .281 * .125 .090 .063 SU117 .750 * .125 .090 .063
SU107 .312 * .125 .090 .063 SU118 .812 * .125 .090 .063
SU108 .343 * .125 .090 .063 SU119 .875 * .125 .090 .063
SU109 .375 * .125 .090 .063 SU120 .937 * .125 .090 .063
SU110 .406 * .125 .090 .063 SU121 1.000 * .125 .090 .063
SU111 .437 * .125 .090 .063
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length Unicorp
Part
Number
1/8"
Diameter		 UP1 AN100 AN400 .125" - .218"   SU101 - SU104
UP1 AN110 AN410 .250" - .469"   SU105 - SU112
UP1 AN120 AN420 .500" - .687"   SU113 - SU116
UP1 AN130 AN430 .750"  to  1"   SU117 - SU121
