Metric Swage Standoffs,
Swage Spacers & Swaging Tools
Part Numbers:  (MSS100 thru MSS1071) Threaded
(MSU100 thru MSU720) Unthreaded
Punch: (UP1 thru UP5)   Anvil: (AN640 thru AN1110)








      Build Your Part #
      Material & Shape

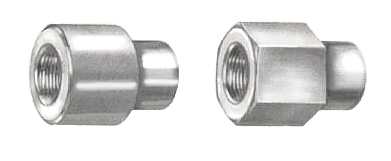

      Shank Length Metric Swage Standoffs (Threaded)
      Plating & Finishes
      Thread Depth Select From These Metric Dimensions
      Hole Clearance    Select Size   Part Numbers
      All Technical Data

  3mm Swage- Threaded   MSS100-MSS120
      Worksheet Helper   4mm Swage- Threaded   MSS125-MSS170
      Conversion Chart   4.5mm Swage- Threaded   MSS175-MSS270
      Standard Swage Rivet   5mm Swage- Threaded   MSS275-MSS370
   6mm Swage- Threaded   MSS375-MSS571
    8mm Swage- Threaded   MSS575-MSS771
     10mm Swage- Threaded   MSS775-MSS1071

Metric Swage Standoffs
Swage Spacers

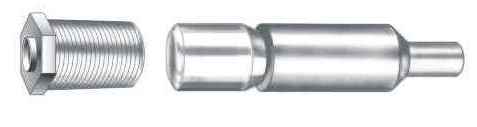

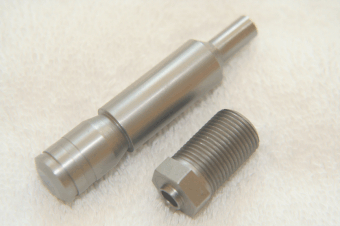

Punch & Anvil For Metric Swage Standoffs



Part Numbers for Punch: UP1 thru UP5 /  Anvil: AN640 thru AN1110



Tooling: Punch & Anvil Part Numbers for Threaded








Punch / Anvil

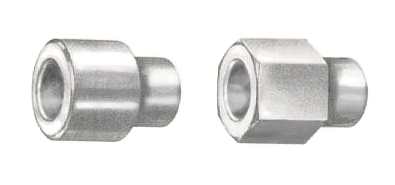

Metric Swage Spacers (Unthreaded / Clear Hole)
Select From These Metric Dimensions
   Select Size   Part Numbers

  3mm Swage- Unthreaded   MSU100-MSU120
  4mm Swage- Unthreaded   MSU125-MSU170
  4.5mm Swage- Unthreaded   MSU175-MSU270
  5mm Swage- Unthreaded   MSU275-MSU370



  6mm Swage- Unthreaded   MSU375-MSU470
   8mm Swage- Unthreaded   MSU475-MSU570
             10mm Swage- Unthreaded   MSU575-MSU720



Punch & Anvil For Metric Swage Spacers




Part Numbers for Punch: UP1 thru UP5  /  Anvil: AN640 thru AN1110




Tooling: Punch & Anvil Part Numbers for Unthreaded






  DIAMETER:  3mm / 4mm / 4.5mm / 5mm / 6mm / 8mm / 10mm
SHAPE:  Round and Hex
MATERIAL:  Brass, Aluminum, Stainless Steel, Carbon Steel
BODY LENGTH:  Wide variety of lengths in .5mm increments- up to 51mm.
SHANK LENGTH:  Wide variety of lengths ranging from 1.9 through 7.4
FINISH:  Available in 28 finishes - See Chart
THREAD:  M1.6 / M2.5 / M3 / M3.5 / M4 / M5 / Internal Thread- Class 6H
INSIDE HOLE DIAMETER:  Ranging from 1.8 through 5.3 for screw sizes M1.6 through M5
TOLERANCE:  Body Length:  ± .13 / Shank Length:   ± .08 / Inside Hole Diameter:  + .00 - .08
Diameter:  Standard commercial bar stock tolerances









  MODIFIED PARTS- ENGINEERING ASSISTANCE:
      We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department. Contact Us
      Swage Standoffs & Swage Spacers 3mm thru 10mm, 1/8" thru 3/8"- Lengths: .5mm up to 51mm, 1/32" thru 1"- Shank Lengths: .062 thru .295. Unicorp swages round- hex, 28 finishes, available in brass, aluminum, stainless steel, carbon steel.
      An inexpensive method of spacing or mounting electronic circuit boards and electronic components. After installation they are permanently affixed to the board and further assembly becomes simplified.
      Installation is accomplished by using any means of force. Normal equipment, such as an arbor press, punch press, are most commonly used. If swaging is planned, the hole must be countersunk. For rivet type installation, an ordinary drilled or punched hole, of the correct diameter, is adequate. Available in both threaded and unthreaded / clear hole types.
