3/16" Swage Standoffs (Threaded)

Back To Swage Standoffs Page

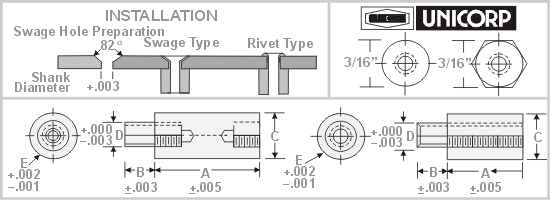

*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Depth of Thread
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages
3/16" - Major Diameter x .125 Shank x 2- 56 Thread
CHOOSE and write down your PART NUMBER
then Go to      Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS150 .062 * .187 .125 .098 2- 56 SS162 .437 * .187 .125 .098 2- 56
SS151 .093 * .187 .125 .098 2- 56 SS163 .469 * .187 .125 .098 2- 56
SS152 .125 * .187 .125 .098 2- 56 SS164 .500 * .187 .125 .098 2- 56
SS153 .156 * .187 .125 .098 2- 56 SS165 .562 * .187 .125 .098 2- 56
SS154 .187 * .187 .125 .098 2- 56 SS166 .625 * .187 .125 .098 2- 56
SS155 .218 * .187 .125 .098 2- 56 SS167 .687 * .187 .125 .098 2- 56
SS156 .250 * .187 .125 .098 2- 56 SS168 .750 * .187 .125 .098 2- 56
SS157 .281 * .187 .125 .098 2- 56 SS169 .812 * .187 .125 .098 2- 56
SS158 .312 * .187 .125 .098 2- 56 SS170 .875 * .187 .125 .098 2- 56
SS159 .343 * .187 .125 .098 2- 56 SS171 .937 * .187 .125 .098 2- 56
SS160 .375 * .187 .125 .098 2- 56 SS172 1.000 * .187 .125 .098 2- 56
SS161 .406 * .187 .125 .098 2- 56
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length Unicorp Part Number
3/16"
Diameter		 UP3 AN180 AN480 .062" - .218" SS150 - SS155
UP3 AN190 AN490 .250" - .469" SS156 - SS163
UP3 AN200 AN500 .500" - .687" SS164 - SS167
UP3 AN210 AN510 .750" - 1" SS168 - SS172
3/16" - Major Diameter x .139 Shank x 2- 56 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS180 .062 * .187 .139 .109 2- 56 SS192 .437 * .187 .139 .109 2- 56
SS181 .093 * .187 .139 .109 2- 56 SS193 .469 * .187 .139 .109 2- 56
SS182 .125 * .187 .139 .109 2- 56 SS194 .500 * .187 .139 .109 2- 56
SS183 .156 * .187 .139 .109 2- 56 SS195 .562 * .187 .139 .109 2- 56
SS184 .187 * .187 .139 .109 2- 56 SS196 .625 * .187 .139 .109 2- 56
SS185 .218 * .187 .139 .109 2- 56 SS197 .687 * .187 .139 .109 2- 56
SS186 .250 * .187 .139 .109 2- 56 SS198 .750 * .187 .139 .109 2- 56
SS187 .281 * .187 .139 .109 2- 56 SS199 .812 * .187 .139 .109 2- 56
SS188 .312 * .187 .139 .109 2- 56 SS200 .875 * .187 .139 .109 2- 56
SS189 .343 * .187 .139 .109 2- 56 SS201 .937 * .187 .139 .109 2- 56
SS190 .375 * .187 .139 .109 2- 56 SS202 1.000 * .187 .139 .109 2- 56
SS191 .406 * .187 .139 .109 2- 56
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length Unicorp Part Number
3/16"
Diameter		 UP3 AN180 AN480 .062" - .218" SS180 - SS185
UP3 AN190 AN490 .250" - .469" SS186 - SS193
UP3 AN200 AN500 .500" - .687" SS194 - SS197
UP3 AN210 AN510 .750" - 1" SS198 - SS202
3/16" - Major Diameter x .139 Shank x 3- 48 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS210 .062 * .187 .139 .116 3- 48 SS222 .437 * .187 .139 .109 3- 48
SS211 .093 * .187 .139 .116 3- 48 SS223 .469 * .187 .139 .109 3- 48
SS212 .125 * .187 .139 .116 3- 48 SS224 .500 * .187 .139 .109 3- 48
SS213 .156 * .187 .139 .116 3- 48 SS225 .562 * .187 .139 .109 3- 48
SS214 .187 * .187 .139 .116 3- 48 SS226 .625 * .187 .139 .109 3- 48
SS215 .218 * .187 .139 .116 3- 48 SS227 .687 * .187 .139 .109 3- 48
SS216 .250 * .187 .139 .116 3- 48 SS228 .750 * .187 .139 .109 3- 48
SS217 .281 * .187 .139 .116 3- 48 SS229 .812 * .187 .139 .109 3- 48
SS218 .312 * .187 .139 .116 3- 48 SS230 .875 * .187 .139 .109 3- 48
SS219 .343 * .187 .139 .116 3- 48 SS231 .937 * .187 .139 .109 3- 48
SS220 .375 * .187 .139 .116 3- 48 SS232 1.000 * .187 .139 .109 3- 48
SS221 .406 * .187 .139 .116 3- 48
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length Unicorp Part Number
3/16"
Diameter		 UP3 AN180 AN480 .062" - .218" SS210 - SS215
UP3 AN190 AN490 .250" - .469" SS216 - SS223
UP3 AN200 AN500 .500" - .687" SS224 - SS227
UP3 AN210 AN510 .750" - 1" SS228 - SS232
