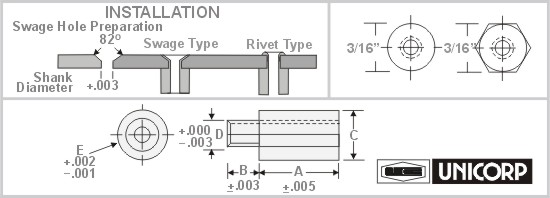

3/16" Swage Spacers (Unthreaded / Clear Hole)
Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Hole Clearance
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages
3/16" - Major Diameter x .138  Shank x .109 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU161 .125 * .187 .138 .109 SU172 .469 * .187 .138 .109
SU162 .156 * .187 .138 .109 SU173 .500 * .187 .138 .109
SU163 .187 * .187 .138 .109 SU174 .562 * .187 .138 .109
SU164 .218 * .187 .138 .109 SU175 .625 * .187 .138 .109
SU165 .250 * .187 .138 .109 SU176 .687 * .187 .138 .109
SU166 .281 * .187 .138 .109 SU177 .750 * .187 .138 .109
SU167 .312 * .187 .138 .109 SU178 .812 * .187 .138 .109
SU168 .343 * .187 .138 .109 SU179 .875 * .187 .138 .109
SU169 .375 * .187 .138 .109 SU180 .937 * .187 .138 .109
SU170 .406 * .187 .138 .109 SU181 1.000 * .187 .138 .109
SU171 .437 * .187 .138 .109
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
3/16"
Diameter		 UP3 AN180 AN480 .125" -.218"

  SU161 - SU164
UP3 AN190 AN490 .250" -.469"

  SU165 - SU172
UP3 AN200 AN500 .500" -.687"

  SU173 - SU176
UP3 AN210 AN510 .750" -  1"

  SU177 - SU181
3/16" - Major Diameter x .125 Shank x .104 Inside Diameter
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU182 .125 * .187 .125 .104 SU191a .469 * .187 .125 .104
SU183 .156 * .187 .125 .104 SU192 .500 * .187 .125 .104
SU184 .187 * .187 .125 .104 SU193 .562 * .187 .125 .104
SU185 .218 * .187 .125 .104 SU194 .625 * .187 .125 .104
SU186 .250 * .187 .125 .104 SU195 .687 * .187 .125 .104
SU187 .281 * .187 .125 .104 SU196 .750 * .187 .125 .104
SU188 .312 * .187 .125 .104 SU197 .812 * .187 .125 .104
SU189 .343 * .187 .125 .104 SU198 .875 * .187 .125 .104
SU189a .375 * .187 .125 .104 SU199 .937 * .187 .125 .104
SU190 .406 * .187 .125 .104 SU200 1.000 * .187 .125 .104
SU191 .437 * .187 .125 .104
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
3/16" Diameter UP3 AN180 AN480 .125" -.218"

  SU182 -SU185
UP3 AN190 AN490 .250" -.469"

  SU186 -SU191a
UP3 AN200 AN500 .500" - .687"

  SU192 -SU195
UP3 AN210 AN510 .750" -  1"

  SU196 - SU200
3/16" - Major Diameter x .125 Shank x .113 Inside Diameter
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU201 .125 * .187 .125 .113 SU212 .469 * .187 .125 .113
SU202 .156 * .187 .125 .113 SU213 .500 * .187 .125 .113
SU203 .187 * .187 .125 .113 SU214 .562 * .187 .125 .113
SU204 .218 * .187 .125 .113 SU215 .625 * .187 .125 .113
SU205 .250 * .187 .125 .113 SU216 .687 * .187 .125 .113
SU206 .281 * .187 .125 .113 SU217 .750 * .187 .125 .113
SU207 .312 * .187 .125 .113 SU218 .812 * .187 .125 .113
SU208 .343 * .187 .125 .113 SU219 .875 * .187 .125 .113
SU209 .375 * .187 .125 .113 SU220 .937 * .187 .125 .113
SU210 .406 * .187 .125 .113 SU221 1.000 * .187 .125 .113
SU211 .437 * .187 .125 .113
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
3/16" Diameter UP3 AN180 AN480 .125" - .218"

   SU201 - SU204
UP3 AN190 AN490 .250" - .469"

   SU205 - SU212
UP3 AN200 AN500 .500" - .687"

   SU213 - SU216
UP3 AN210 AN510 .750" -  1"

   SU217 - SU221
