5/32" Swage Spacers (Unthreaded / Clear Hole)
Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Hole Clearance
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages

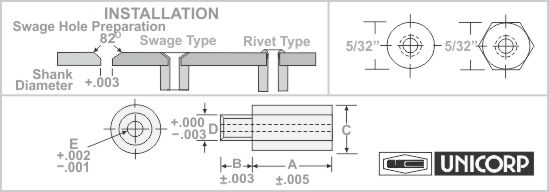

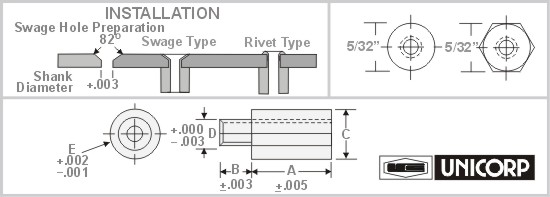

5/32" - Major Diameter x .125 Shank x .098 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
SU131 .125 * .156 .125 .098 SU142 .469 * .156 .125 .098
SU132 .156 * .156 .125 .098 SU143 .500 * .156 .125 .098
SU133 .187 * .156 .125 .098 SU144 .562 * .156 .125 .098
SU134 .218 * .156 .125 .098 SU145 .625 * .156 .125 .098
SU135 .250 * .156 .125 .098 SU146 .687 * .156 .125 .098
SU136 .281 * .156 .125 .098 SU147 .750 * .156 .125 .098
SU137 .312 * .156 .125 .098 SU148 .812 * .156 .125 .098
SU138 .343 * .156 .125 .098 SU149 .875 * .156 .125 .098
SU139 .375 * .156 .125 .098 SU150 .937 * .156 .125 .098
SU140 .406 * .156 .125 .098 SU151 1.000 * .156 .125 .098
SU141 .437 * .156 .125 .098 *

Swage
Tooling For:

 Punch Round Anvil Hex Anvil Length

Unicorp
Part Number

5/32"
Diameter

 UP2 AN140 AN440 .125" - .218"   SU131 -  SU134
UP2 AN150 AN450 .250" - .469"   SU135 -  SU142
UP2 AN160 AN460 .500" - .687"   SU143 -  SU146
UP2 AN170 AN470 .750"  to  1"   SU147 -  SU151
