1/8" Swage Standoffs (Threaded)

Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Depth of Thread
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages

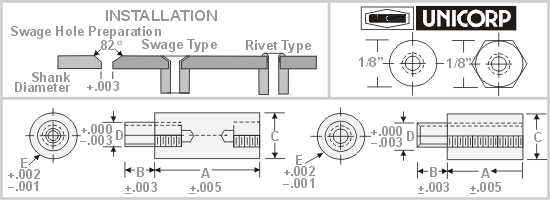

1/8" - Major Diameter x .090 Shank x 0- 80 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below  /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS100 .062 * .125 .090 .063 0- 80 SS108 .312 * .125 .090 .063 0- 80
SS101 .093 * .125 .090 .063 0- 80 SS109 .343 * .125 .090 .063 0- 80
SS102 .125 * .125 .090 .063 0- 80 SS110 .375 * .125 .090 .063 0- 80
SS103 .156 * .125 .090 .063 0- 80 SS111 .406 * .125 .090 .063 0- 80
SS104 .187 * .125 .090 .063 0- 80 SS112 .437 * .125 .090 .063 0- 80
SS105 .218 * .125 .090 .063 0- 80 SS113 .469 * .125 .090 .063 0- 80
SS106 .250 * .125 .090 .063 0- 80 SS114 .500 * .125 .090 .063 0- 80
SS107 .281 * .125 .090 .063 0- 80

Swage
Tooling For:

 Punch Round Anvil Hex Anvil Length Unicorp Part Number

1/8"
Diameter

 UP1 AN100 AN400 .062" -.218" SS100 -SS105
UP1 AN110 AN410 .250" -.469" SS106 -SS113
UP1 AN120 AN420 .500" SS114
