5/16" Swage Standoffs (Threaded)

Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Depth of Thread
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages

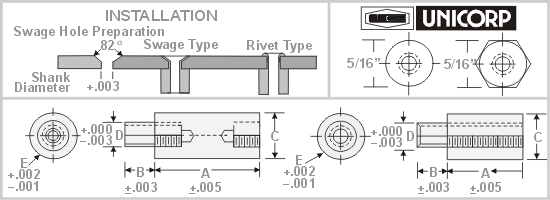

5/16" - Major Diameter x .187 Shank x 6- 32 Thread
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS400 .125 * .312 .187 .150 6- 32 SS415 .687 * .312 .187 .150 6- 32
SS401 .156 * .312 .187 .150 6- 32 SS416 .750 * .312 .187 .150 6- 32
SS402 .187 * .312 .187 .150 6- 32 SS417 .812 * .312 .187 .150 6- 32
SS403 .218 * .312 .187 .150 6- 32 SS418 .875 * .312 .187 .150 6- 32
SS404 .250 * .312 .187 .150 6- 32 SS419 .937 * .312 .187 .150 6- 32
SS405 .281 * .312 .187 .150 6- 32 SS420 1.000 * .312 .187 .150 6- 32
SS406 .312 * .312 .187 .150 6- 32 SS421 1.125 * .312 .187 .150 6- 32
SS407 .343 * .312 .187 .150 6- 32 SS422 1.250 * .312 .187 .150 6- 32
SS408 .375 * .312 .187 .150 6- 32 SS423 1.375 * .312 .187 .150 6- 32
SS409 .406 * .312 .187 .150 6- 32 SS424 1.500 * .312 .187 .150 6- 32
SS410 .437 * .312 .187 .150 6- 32 SS425 1.625 * .312 .187 .150 6- 32
SS411 .469 * .312 .187 .150 6- 32 SS426 1.750 * .312 .187 .150 6- 32
SS412 .500 * .312 .187 .150 6- 32 SS427 1.875 * .312 .187 .150 6- 32
SS413 .562 * .312 .187 .150 6- 32 SS428 2.000 * .312 .187 .150 6- 32
SS414 .625 * .312 .187 .150 6- 32
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
5/16"
Diameter		 UP5 AN260 AN560 .125" - .218"

SS400 -SS403
UP5 AN270 AN570 .250" - .469"

SS404 - SS411
UP5 AN280 AN580 .500" - .687"

SS412 - SS415
UP5 AN290 AN590 .750" - 2"

SS416 - SS428
5/16" -  Major Diameter x .234 Shank x 6- 32 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS430 .125 * .312 .234 .201 6- 32 SS445 .687 * .312 .234 .201 6- 32
SS431 .156 * .312 .234 .201 6- 32 SS446 .750 * .312 .234 .201 6- 32
SS432 .187 * .312 .234 .201 6- 32 SS447 .812 * .312 .234 .201 6- 32
SS433 .218 * .312 .234 .201 6- 32 SS448 .875 * .312 .234 .201 6- 32
SS434 .250 * .312 .234 .201 6- 32 SS449 .937 * .312 .234 .201 6- 32
SS435 .281 * .312 .234 .201 6- 32 SS450 1.000 * .312 .234 .201 6- 32
SS436 .312 * .312 .234 .201 6- 32 SS451 1.125 * .312 .234 .201 6- 32
SS437 .343 * .312 .234 .201 6- 32 SS452 1.250 * .312 .234 .201 6- 32
SS438 .375 * .312 .234 .201 6- 32 SS453 1.375 * .312 .234 .201 6- 32
SS439 .406 * .312 .234 .201 6- 32 SS454 1.500 * .312 .234 .201 6- 32
SS440 .437 * .312 .234 .201 6- 32 SS455 1.625 * .312 .234 .201 6- 32
SS441 .469 * .312 .234 .201 6- 32 SS456 1.750 * .312 .234 .201 6- 32
SS442 .500 * .312 .234 .201 6- 32 SS457 1.875 * .312 .234 .201 6- 32
SS443 .562 * .312 .234 .201 6- 32 SS458 2.000 * .312 .234 .201 6- 32
SS444 .625 * .312 .234 .201 6- 32
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
5/16"
Diameter		 UP5 AN260 AN560 .125" - .218"

SS430 - SS433
UP5 AN270 AN570 .250" - .469"

SS434 - SS441
UP5 AN280 AN580 .500" - .687"

SS442 - SS445
UP5 AN290 AN590 .750" - 2"

SS446 - SS458
5/16" -  Major Diameter x .234 Shank x 8- 32 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS470 .125 * .312 .234 .201 8- 32 SS485 .687 * .312 .234 .201 8- 32
SS471 .156 * .312 .234 .201 8- 32 SS486 .750 * .312 .234 .201 8- 32
SS472 .187 * .312 .234 .201 8- 32 SS487 .812 * .312 .234 .201 8- 32
SS473 .218 * .312 .234 .201 8- 32 SS488 .875 * .312 .234 .201 8- 32
SS474 .250 * .312 .234 .201 8- 32 SS489 .937 * .312 .234 .201 8- 32
SS475 .281 * .312 .234 .201 8- 32 SS490 1.000 * .312 .234 .201 8- 32
SS476 .312 * .312 .234 .201 8- 32 SS491 1.125 * .312 .234 .201 8- 32
SS477 .343 * .312 .234 .201 8- 32 SS492 1.250 * .312 .234 .201 8- 32
SS478 .375 * .312 .234 .201 8- 32 SS493 1.375 * .312 .234 .201 8- 32
SS479 .406 * .312 .234 .201 8- 32 SS494 1.500 * .312 .234 .201 8- 32
SS480 .437 * .312 .234 .201 8- 32 SS495 1.625 * .312 .234 .201 8- 32
SS481 .469 * .312 .234 .201 8- 32 SS496 1.750 * .312 .234 .201 8- 32
SS482 .500 * .312 .234 .201 8- 32 SS497 1.875 * .312 .234 .201 8- 32
SS483 .562 * .312 .234 .201 8- 32 SS498 2.000 * .312 .234 .201 8- 32
SS484 .625 * .312 .234 .201 8- 32
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
5/16"
Diameter		 UP5 AN260 AN 560 .125" - .218"

SS470 - SS473
UP5 AN270 AN570 .250" - .469"

SS474 - SS481
UP5 AN280 AN580 .500" - .687"

SS482 - SS485
UP5 AN290 AN590 .750" - 2"

SS486 - SS498
5/16" - Major Diameter x .234 Shank x 10- 32 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS500 .125 * .312 .234 .201 10- 32 SS515 .687 * .312 .234 .201 10- 32
SS501 .156 * .312 .234 .201 10- 32 SS516 .750 * .312 .234 .201 10- 32
SS502 .187 * .312 .234 .201 10- 32 SS517 .812 * .312 .234 .201 10- 32
SS503 .218 * .312 .234 .201 10- 32 SS518 .875 * .312 .234 .201 10- 32
SS504 .250 * .312 .234 .201 10- 32 SS519 .937 * .312 .234 .201 10- 32
SS505 .281 * .312 .234 .201 10- 32 SS520 1.000 * .312 .234 .201 10- 32
SS506 .312 * .312 .234 .201 10- 32 SS521 1.125 * .312 .234 .201 10- 32
SS507 .343 * .312 .234 .201 10- 32 SS522 1.250 * .312 .234 .201 10- 32
SS508 .375 * .312 .234 .201 10- 32 SS523 1.375 * .312 .234 .201 10- 32
SS509 .406 * .312 .234 .201 10- 32 SS524 1.500 * .312 .234 .201 10- 32
SS510 .437 * .312 .234 .201 10- 32 SS525 1.625 * .312 .234 .201 10- 32
SS511 .469 * .312 .234 .201 10- 32 SS526 1.750 * .312 .234 .201 10- 32
SS512 .500 * .312 .234 .201 10- 32 SS527 1.875 * .312 .234 .201 10- 32
SS513 .562 * .312 .234 .201 10- 32 SS528 2.000 * .312 .234 .201 10- 32
SS514 .625 * .312 .234 .201 10- 32
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
5/16"
Diameter		 UP5 AN260 AN560 .125" - .218"

SS500 - SS503
UP5 AN270 AN570 .250" - .469"

SS504 - SS511
UP5 AN280 AN580 .500" - .687"

SS512 - SS515
UP5 AN290 AN590 .750" - 2"

SS516 - SS528
