Metric 4.5mm Swage Spacers
(Unthreaded / Clear Hole)
Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		 Hole Clearance
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
America Standard Swages
Metric Swages

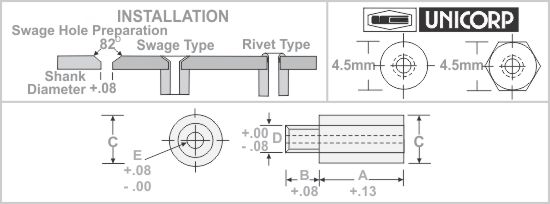

4.5mm -  Major Diameter  x  3.53 Shank  x  2.7 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
MSU175 3 * 4.5 3.53 2.7 MSU198 14.5 * 4.5 3.53 2.7
MSU176 3.5 * 4.5 3.53 2.7 MSU199 15 * 4.5 3.53 2.7
MSU177 4 * 4.5 3.53 2.7 MSU200 15.5 * 4.5 3.53 2.7
MSU178 4.5 * 4.5 3.53 2.7 MSU201 16 * 4.5 3.53 2.7
MSU179 5 * 4.5 3.53 2.7 MSU202 16.5 * 4.5 3.53 2.7
MSU180 5.5 * 4.5 3.53 2.7 MSU203 17 * 4.5 3.53 2.7
MSU181 6 * 4.5 3.53 2.7 MSU204 17.5 * 4.5 3.53 2.7
MSU182 6.5 * 4.5 3.53 2.7 MSU205 18 * 4.5 3.53 2.7
MSU183 7 * 4.5 3.53 2.7 MSU206 18.5 * 4.5 3.53 2.7
MSU184 7.5 * 4.5 3.53 2.7 MSU207 19 * 4.5 3.53 2.7
MSU185 8 * 4.5 3.53 2.7 MSU208 19.5 * 4.5 3.53 2.7
MSU186 8.5 * 4.5 3.53 2.7 MSU209 20 * 4.5 3.53 2.7
MSU187 9 * 4.5 3.53 2.7 MSU210 20.5 * 4.5 3.53 2.7
MSU188 9.5 * 4.5 3.53 2.7 MSU211 21 * 4.5 3.53 2.7
MSU189 10 * 4.5 3.53 2.7 MSU212 21.5 * 4.5 3.53 2.7
MSU190 10.5 * 4.5 3.53 2.7 MSU213 22 * 4.5 3.53 2.7
MSU191 11 * 4.5 3.53 2.7 MSU214 22.5 * 4.5 3.53 2.7
MSU192 11.5 * 4.5 3.53 2.7 MSU215 23 * 4.5 3.53 2.7
MSU193 12 * 4.5 3.53 2.7 MSU216 23.5 * 4.5 3.53 2.7
MSU194 12.5 * 4.5 3.53 2.7 MSU217 24 * 4.5 3.53 2.7
MSU195 13 * 4.5 3.53 2.7 MSU218 24.5 * 4.5 3.53 2.7
MSU196 13.5 * 4.5 3.53 2.7 MSU219 25 * 4.5 3.53 2.7
MSU197 14 * 4.5 3.53 2.7 MSU220 25.5 * 4.5 3.53 2.7
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
4.5mm Diameter UP3 AN700 AN960 3 -  5.5mm MSU175 - MSU180
UP3 AN710 AN970 6 - 12.5mm MSU181 - MSU194
UP3 AN720 AN980 13 - 18.5mm MSU195 - MSU206
UP3 AN730 AN990 19 - 25.5mm MSU207- MSU220

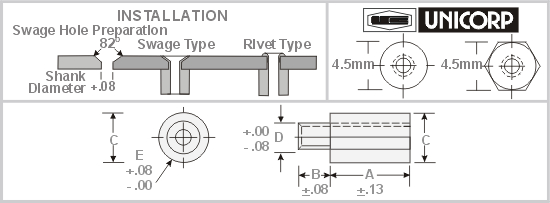

4.5mm -  Major Diameter  x  3.53 Shank  x  3.2 Inside Diameter
SELECT PART NUMBER then Go toBuild Part Number (Skip Step 1)
See Swage Tooling Below   /  SeeShank Length
Part
Number		 A B C D E Part
Number		 A B C D E
MSU225 3 * 4.5 3.53 3.2 MSU248 14.5 * 4.5 3.53 3.2
MSU226 3.5 * 4.5 3.53 3.2 MSU249 15 * 4.5 3.53 3.2
MSU227 4 * 4.5 3.53 3.2 MSU250 15.5 * 4.5 3.53 3.2
MSU228 4.5 * 4.5 3.53 3.2 MSU251 16 * 4.5 3.53 3.2
MSU229 5 * 4.5 3.53 3.2 MSU252 16.5 * 4.5 3.53 3.2
MSU230 5.5 * 4.5 3.53 3.2 MSU253 17 * 4.5 3.53 3.2
MSU231 6 * 4.5 3.53 3.2 MSU254 17.5 * 4.5 3.53 3.2
MSU232 6.5 * 4.5 3.53 3.2 MSU255 18 * 4.5 3.53 3.2
MSU233 7 * 4.5 3.53 3.2 MSU256 18.5 * 4.5 3.53 3.2
MSU234 7.5 * 4.5 3.53 3.2 MSU257 19 * 4.5 3.53 3.2
MSU235 8 * 4.5 3.53 3.2 MSU258 19.5 * 4.5 3.53 3.2
MSU236 8.5 * 4.5 3.53 3.2 MSU259 20 * 4.5 3.53 3.2
MSU237 9 * 4.5 3.53 3.2 MSU260 20.5 * 4.5 3.53 3.2
MSU238 9.5 * 4.5 3.53 3.2 MSU261 21 * 4.5 3.53 3.2
MSU239 10 * 4.5 3.53 3.2 MSU262 21.5 * 4.5 3.53 3.2
MSU240 10.5 * 4.5 3.53 3.2 MSU263 22 * 4.5 3.53 3.2
MSU241 11 * 4.5 3.53 3.2 MSU264 22.5 * 4.5 3.53 3.2
MSU242 11.5 * 4.5 3.53 3.2 MSU265 23 * 4.5 3.53 3.2
MSU243 12 * 4.5 3.53 3.2 MSU266 23.5 * 4.5 3.53 3.2
MSU244 12.5 * 4.5 3.53 3.2 MSU267 24 * 4.5 3.53 3.2
MSU245 13 * 4.5 3.53 3.2 MSU268 24.5 * 4.5 3.53 3.2
MSU246 13.5 * 4.5 3.53 3.2 MSU269 25 * 4.5 3.53 3.2
MSU247 14 * 4.5 3.53 3.2 MSU270 25.5 * 4.5 3.53 3.2
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
4.5mm
Diameter		 UP3 AN700 AN960 3 -  5.5mm MSU225-  MSU230
UP3 AN710 AN970 6 - 12.5mm MSU231 - MSU244
UP3 AN720 AN980 13 - 18.5mm MSU245 - MSU256
UP3 AN730 AN990 19 - 25.5mm MSU257 - MSU270
