Metric 5mm Swage Spacers
(Unthreaded / Clear Hole)
Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		 Hole Clearance
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
America Standard Swages
Metric Swages

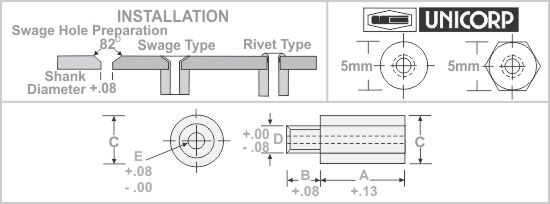

5mm -  Major Diameter  x  3.53 Shank  x  2.7 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
MSU275 3 * 5 3.53 2.7 MSU298 14.5 * 5 3.53 2.7
MSU276 3.5 * 5 3.53 2.7 MSU299 15 * 5 3.53 2.7
MSU277 4 * 5 3.53 2.7 MSU300 15.5 * 5 3.53 2.7
MSU278 4.5 * 5 3.53 2.7 MSU301 16 * 5 3.53 2.7
MSU279 5 * 5 3.53 2.7 MSU302 16.5 * 5 3.53 2.7
MSU280 5.5 * 5 3.53 2.7 MSU303 17 * 5 3.53 2.7
MSU281 6 * 5 3.53 2.7 MSU304 17.5 * 5 3.53 2.7
MSU282 6.5 * 5 3.53 2.7 MSU305 18 * 5 3.53 2.7
MSU283 7 * 5 3.53 2.7 MSU306 18.5 * 5 3.53 2.7
MSU284 7.5 * 5 3.53 2.7 MSU307 19 * 5 3.53 2.7
MSU285 8 * 5 3.53 2.7 MSU308 19.5 * 5 3.53 2.7
MSU286 8.5 * 5 3.53 2.7 MSU309 20 * 5 3.53 2.7
MSU287 9 * 5 3.53 2.7 MSU310 20.5 * 5 3.53 2.7
MSU288 9.5 * 5 3.53 2.7 MSU311 21 * 5 3.53 2.7
MSU289 10 * 5 3.53 2.7 MSU312 21.5 * 5 3.53 2.7
MSU290 10.5 * 5 3.53 2.7 MSU313 22 * 5 3.53 2.7
MSU291 11 * 5 3.53 2.7 MSU314 22.5 * 5 3.53 2.7
MSU292 11.5 * 5 3.53 2.7 MSU315 23 * 5 3.53 2.7
MSU293 12 * 5 3.53 2.7 MSU316 23.5 * 5 3.53 2.7
MSU294 12.5 * 5 3.53 2.7 MSU317 24 * 5 3.53 2.7
MSU295 13 * 5 3.53 2.7 MSU318 24.5 * 5 3.53 2.7
MSU296 13.5 * 5 3.53 2.7 MSU319 25 * 5 3.53 2.7
MSU297 14 * 5 3.53 2.7 MSU320 25.5 * 5 3.53 2.7
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
5mm Diameter UP3 AN700 AN960 3 -  5.5mm MSU275 - MSU280
UP3 AN710 AN970 6 - 12.5mm MSU281 - MSU294
UP3 AN720 AN980 13 - 18.5mm MSU295 - MSU306
UP3 AN730 AN990 19 - 25.5mm MSU307 - MSU320

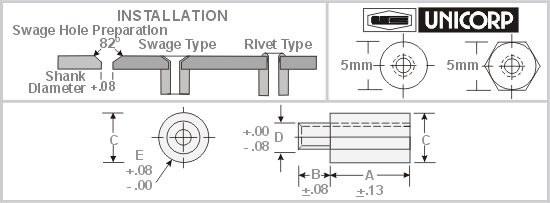

5mm -  Major Diameter  x  3.53 Shank  x  3.2 Inside Diameter
SELECT PART NUMBER then Go to Build Part Number (Skip Step 1)
See Swage Tooling Below   /  SeeShank Length
Part
Number		 A B C D E Part
Number		 A B C D E
MSU325 3 * 5 3.53 3.2 MSU348 14.5 * 5 3.53 3.2
MSU326 3.5 * 5 3.53 3.2 MSU349 15 * 5 3.53 3.2
MSU327 4 * 5 3.53 3.2 MSU350 15.5 * 5 3.53 3.2
MSU328 4.5 * 5 3.53 3.2 MSU351 16 * 5 3.53 3.2
MSU329 5 * 5 3.53 3.2 MSU352 16.5 * 5 3.53 3.2
MSU330 5.5 * 5 3.53 3.2 MSU353 17 * 5 3.53 3.2
MSU331 6 * 5 3.53 3.2 MSU354 17.5 * 5 3.53 3.2
MSU332 6.5 * 5 3.53 3.2 MSU355 18 * 5 3.53 3.2
MSU333 7 * 5 3.53 3.2 MSU356 18.5 * 5 3.53 3.2
MSU334 7.5 * 5 3.53 3.2 MSU357 19 * 5 3.53 3.2
MSU335 8 * 5 3.53 3.2 MSU358 19.5 * 5 3.53 3.2
MSU336 8.5 * 5 3.53 3.2 MSU359 20 * 5 3.53 3.2
MSU337 9 * 5 3.53 3.2 MSU360 20.5 * 5 3.53 3.2
MSU338 9.5 * 5 3.53 3.2 MSU361 21 * 5 3.53 3.2
MSU339 10 * 5 3.53 3.2 MSU362 21.5 * 5 3.53 3.2
MSU340 10.5 * 5 3.53 3.2 MSU363 22 * 5 3.53 3.2
MSU341 11 * 5 3.53 3.2 MSU364 22.5 * 5 3.53 3.2
MSU342 11.5 * 5 3.53 3.2 MSU365 23 * 5 3.53 3.2
MSU343 12 * 5 3.53 3.2 MSU366 23.5 * 5 3.53 3.2
MSU344 12.5 * 5 3.53 3.2 MSU367 24 * 5 3.53 3.2
MSU345 13 * 5 3.53 3.2 MSU368 24.5 * 5 3.53 3.2
MSU346 13.5 * 5 3.53 3.2 MSU369 25 * 5 3.53 3.2
MSU347 14 * 5 3.53 3.2 MSU370 25.5 * 5 3.53 3.2
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
5mm Diameter UP3 AN700 AN960 3 -  5.5mm MSU325 - MSU330
UP3 AN710 AN970 6 - 12.5mm MSU331 - MSU344
UP3 AN720 AN980 13 - 18.5mm MSU345 - MSU356
UP3 AN730 AN990 19 - 25.5mm MSU357 - MSU370
