Metric 6mm Swage Spacers
(Unthreaded / Clear Hole)
Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		 Hole Clearance
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
America Standard Swages
Metric Swages

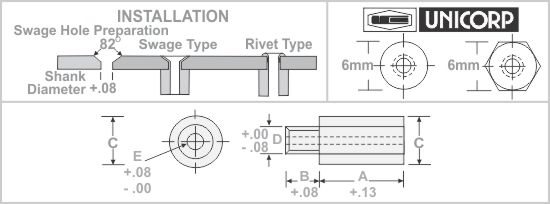

6mm -  Major Diameter  x  4.78 Shank  x  3.2 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
MSU375 3 * 6 4.78 3.2 MSU398 14.5 * 6 4.78 3.2
MSU376 3.5 * 6 4.78 3.2 MSU399 15 * 6 4.78 3.2
MSU377 4 * 6 4.78 3.2 MSU400 15.5 * 6 4.78 3.2
MSU378 4.5 * 6 4.78 3.2 MSU401 16 * 6 4.78 3.2
MSU379 5 * 6 4.78 3.2 MSU402 16.5 * 6 4.78 3.2
MSU380 5.5 * 6 4.78 3.2 MSU403 17 * 6 4.78 3.2
MSU381 6 * 6 4.78 3.2 MSU404 17.5 * 6 4.78 3.2
MSU382 6.5 * 6 4.78 3.2 MSU405 18 * 6 4.78 3.2
MSU383 7 * 6 4.78 3.2 MSU406 18.5 * 6 4.78 3.2
MSU384 7.5 * 6 4.78 3.2 MSU407 19 * 6 4.78 3.2
MSU385 8 * 6 4.78 3.2 MSU408 19.5 * 6 4.78 3.2
MSU386 8.5 * 6 4.78 3.2 MSU409 20 * 6 4.78 3.2
MSU387 9 * 6 4.78 3.2 MSU410 20.5 * 6 4.78 3.2
MSU388 9.5 * 6 4.78 3.2 MSU411 21 * 6 4.78 3.2
MSU389 10 * 6 4.78 3.2 MSU412 21.5 * 6 4.78 3.2
MSU390 10.5 * 6 4.78 3.2 MSU413 22 * 6 4.78 3.2
MSU391 11 * 6 4.78 3.2 MSU414 22.5 * 6 4.78 3.2
MSU392 11.5 * 6 4.78 3.2 MSU415 23 * 6 4.78 3.2
MSU393 12 * 6 4.78 3.2 MSU416 23.5 * 6 4.78 3.2
MSU394 12.5 * 6 4.78 3.2 MSU417 24 * 6 4.78 3.2
MSU395 13 * 6 4.78 3.2 MSU418 24.5 * 6 4.78 3.2
MSU396 13.5 * 6 4.78 3.2 MSU419 25 * 6 4.78 3.2
MSU397 14 * 6 4.78 3.2 MSU420 25.5 * 6 4.78 3.2
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
6mm Diameter UP4 AN740 AN1000 3 -  5.5mm MSU375 - MSU380
UP4 AN750 AN1010 6 - 12.5mm MSU381 - MSU394
UP4 AN760 AN1020 13 - 18.5mm MSU395 - MSU406
UP4 AN770 AN1030 19 - 25.5mm MSU407 - MSU420

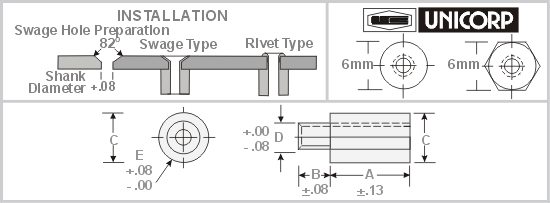

6mm -  Major Diameter  x  4.78 Shank  x  3.7 Inside Diameter
SELECT PART NUMBER then Go to Build Part Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
MSU425 3 * 6 4.78 3.7 MSU448 14.5 * 6 4.78 3.7
MSU426 3.5 * 6 4.78 3.7 MSU449 15 * 6 4.78 3.7
MSU427 4 * 6 4.78 3.7 MSU450 15.5 * 6 4.78 3.7
MSU428 4.5 * 6 4.78 3.7 MSU451 16 * 6 4.78 3.7
MSU429 5 * 6 4.78 3.7 MSU452 16.5 * 6 4.78 3.7
MSU430 5.5 * 6 4.78 3.7 MSU453 17 * 6 4.78 3.7
MSU431 6 * 6 4.78 3.7 MSU454 17.5 * 6 4.78 3.7
MSU432 6.5 * 6 4.78 3.7 MSU455 18 * 6 4.78 3.7
MSU433 7 * 6 4.78 3.7 MSU456 18.5 * 6 4.78 3.7
MSU434 7.5 * 6 4.78 3.7 MSU457 19 * 6 4.78 3.7
MSU435 8 * 6 4.78 3.7 MSU458 19.5 * 6 4.78 3.7
MSU436 8.5 * 6 4.78 3.7 MSU459 20 * 6 4.78 3.7
MSU437 9 * 6 4.78 3.7 MSU460 20.5 * 6 4.78 3.7
MSU438 9.5 * 6 4.78 3.7 MSU461 21 * 6 4.78 3.7
MSU439 10 * 6 4.78 3.7 MSU462 21.5 * 6 4.78 3.7
MSU440 10.5 * 6 4.78 3.7 MSU463 22 * 6 4.78 3.7
MSU441 11 * 6 4.78 3.7 MSU464 22.5 * 6 4.78 3.7
MSU442 11.5 * 6 4.78 3.7 MSU465 23 * 6 4.78 3.7
MSU443 12 * 6 4.78 3.7 MSU466 23.5 * 6 4.78 3.7
MSU444 12.5 * 6 4.78 3.7 MSU467 24 * 6 4.78 3.7
MSU445 13 * 6 4.78 3.7 MSU468 24.5 * 6 4.78 3.7
MSU446 13.5 * 6 4.78 3.7 MSU469 25 * 6 4.78 3.7
MSU447 14 * 6 4.78 3.7 MSU470 25.5 * 6 4.78 3.7
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
6mm Diameter UP4 AN740 AN1000 3 -  5.5mm MSU425 - MSU430
UP4 AN750 AN1010 6 - 12.5mm MSU431 - MSU444
UP4 AN760 AN1020 13 - 18.5mm MSU445 - MSU456
UP4 AN770 AN1030 19 - 25.5mm MSU457 - MSU470
