Metric 6mm Swage Standoffs (Threaded)

Back To Swage Standoffs Page

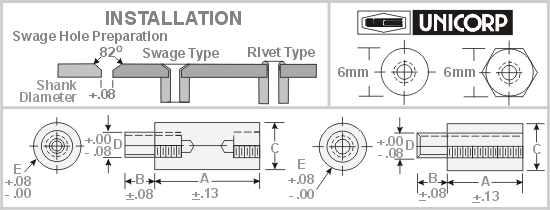

*Slightly Chamfered to Permit Smooth Entry / Fit.

   Build Part Number
   Material & Shape
   Plating & Finish
   Shank Length		 Depth of Thread
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
American Standard Swages
Metric Swages
6mm - Major Diameter x 4.78 Shank x M3.0x0.5 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS375 3 * 6 4.78 3.8 M3.0x0.5 MSS424 27.5 * 6 4.78 3.8 M3.0x0.5
MSS376 3.5 * 6 4.78 3.8 M3.0x0.5 MSS425 28 * 6 4.78 3.8 M3.0x0.5
MSS377 4 * 6 4.78 3.8 M3.0x0.5 MSS426 28.5 * 6 4.78 3.8 M3.0x0.5
MSS378 4.5 * 6 4.78 3.8 M3.0x0.5 MSS427 29 * 6 4.78 3.8 M3.0x0.5
MSS379 5 * 6 4.78 3.8 M3.0x0.5 MSS428 29.5 * 6 4.78 3.8 M3.0x0.5
MSS380 5.5 * 6 4.78 3.8 M3.0x0.5 MSS429 30 * 6 4.78 3.8 M3.0x0.5
MSS381 6 * 6 4.78 3.8 M3.0x0.5 MSS430 30.5 * 6 4.78 3.8 M3.0x0.5
MSS382 6.5 * 6 4.78 3.8 M3.0x0.5 MSS431 31 * 6 4.78 3.8 M3.0x0.5
MSS383 7 * 6 4.78 3.8 M3.0x0.5 MSS432 31.5 * 6 4.78 3.8 M3.0x0.5
MSS384 7.5 * 6 4.78 3.8 M3.0x0.5 MSS433 32 * 6 4.78 3.8 M3.0x0.5
MSS385 8 * 6 4.78 3.8 M3.0x0.5 MSS434 32.5 * 6 4.78 3.8 M3.0x0.5
MSS386 8.5 * 6 4.78 3.8 M3.0x0.5 MSS435 33 * 6 4.78 3.8 M3.0x0.5
MSS387 9 * 6 4.78 3.8 M3.0x0.5 MSS436 33.5 * 6 4.78 3.8 M3.0x0.5
MSS388 9.5 * 6 4.78 3.8 M3.0x0.5 MSS437 34 * 6 4.78 3.8 M3.0x0.5
MSS389 10 * 6 4.78 3.8 M3.0x0.5 MSS438 34.5 * 6 4.78 3.8 M3.0x0.5
MSS390 10.5 * 6 4.78 3.8 M3.0x0.5 MSS439 35 * 6 4.78 3.8 M3.0x0.5
MSS391 11 * 6 4.78 3.8 M3.0x0.5 MSS440 35.5 * 6 4.78 3.8 M3.0x0.5
MSS392 11.5 * 6 4.78 3.8 M3.0x0.5 MSS441 36 * 6 4.78 3.8 M3.0x0.5
MSS393 12 * 6 4.78 3.8 M3.0x0.5 MSS442 36.5 * 6 4.78 3.8 M3.0x0.5
MSS394 12.5 * 6 4.78 3.8 M3.0x0.5 MSS443 37 * 6 4.78 3.8 M3.0x0.5
MSS395 13 * 6 4.78 3.8 M3.0x0.5 MSS444 37.5 * 6 4.78 3.8 M3.0x0.5
MSS396 13.5 * 6 4.78 3.8 M3.0x0.5 MSS445 38 * 6 4.78 3.8 M3.0x0.5
MSS397 14 * 6 4.78 3.8 M3.0x0.5 MSS446 38.5 * 6 4.78 3.8 M3.0x0.5
MSS398 14.5 * 6 4.78 3.8 M3.0x0.5 MSS447 39 * 6 4.78 3.8 M3.0x0.5
MSS399 15 * 6 4.78 3.8 M3.0x0.5 MSS448 39.5 * 6 4.78 3.8 M3.0x0.5
MSS400 15.5 * 6 4.78 3.8 M3.0x0.5 MSS449 40 * 6 4.78 3.8 M3.0x0.5
MSS401 16 * 6 4.78 3.8 M3.0x0.5 MSS450 40.5 * 6 4.78 3.8 M3.0x0.5
MSS402 16.5 * 6 4.78 3.8 M3.0x0.5 MSS451 41 * 6 4.78 3.8 M3.0x0.5
MSS403 17 * 6 4.78 3.8 M3.0x0.5 MSS452 41.5 * 6 4.78 3.8 M3.0x0.5
MSS404 17.5 * 6 4.78 3.8 M3.0x0.5 MSS453 42 * 6 4.78 3.8 M3.0x0.5
MSS405 18 * 6 4.78 3.8 M3.0x0.5 MSS454 42.5 * 6 4.78 3.8 M3.0x0.5
MSS406 18.5 * 6 4.78 3.8 M3.0x0.5 MSS455 43 * 6 4.78 3.8 M3.0x0.5
MSS407 19 * 6 4.78 3.8 M3.0x0.5 MSS456 43.5 * 6 4.78 3.8 M3.0x0.5
MSS408 19.5 * 6 4.78 3.8 M3.0x0.5 MSS457 44 * 6 4.78 3.8 M3.0x0.5
MSS409 20 * 6 4.78 3.8 M3.0x0.5 MSS458 44.5 * 6 4.78 3.8 M3.0x0.5
MSS410 20.5 * 6 4.78 3.8 M3.0x0.5 MSS459 45 * 6 4.78 3.8 M3.0x0.5
MSS411 21 * 6 4.78 3.8 M3.0x0.5 MSS460 45.5 * 6 4.78 3.8 M3.0x0.5
MSS412 21.5 * 6 4.78 3.8 M3.0x0.5 MSS461 46 * 6 4.78 3.8 M3.0x0.5
MSS413 22 * 6 4.78 3.8 M3.0x0.5 MSS462 46.5 * 6 4.78 3.8 M3.0x0.5
MSS414 22.5 * 6 4.78 3.8 M3.0x0.5 MSS463 47 * 6 4.78 3.8 M3.0x0.5
MSS415 23 * 6 4.78 3.8 M3.0x0.5 MSS464 47.5 * 6 4.78 3.8 M3.0x0.5
MSS416 23.5 * 6 4.78 3.8 M3.0x0.5 MSS465 48 * 6 4.78 3.8 M3.0x0.5
MSS417 24 * 6 4.78 3.8 M3.0x0.5 MSS466 48.5 * 6 4.78 3.8 M3.0x0.5
MSS418 24.5 * 6 4.78 3.8 M3.0x0.5 MSS467 49 * 6 4.78 3.8 M3.0x0.5
MSS419 25 * 6 4.78 3.8 M3.0x0.5 MSS468 49.5 * 6 4.78 3.8 M3.0x0.5
MSS420 25.5 * 6 4.78 3.8 M3.0x0.5 MSS469 50 * 6 4.78 3.8 M3.0x0.5
MSS421 26 * 6 4.78 3.8 M3.0x0.5 MSS470 50.5 * 6 4.78 3.8 M3.0x0.5
MSS422 26.5 * 6 4.78 3.8 M3.0x0.5 MSS471 51 * 6 4.78 3.8 M3.0x0.5
MSS423 27 * 6 4.78 3.8 M3.0x0.5
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length Unicorp Part
Number
6mm
Diameter		 UP4 AN740 AN1000 3 -  5.5mm   MSS375 - MSS380
UP4 AN750 AN1010 6 - 12.5mm   MSS381 - MSS394
UP4 AN760 AN1020 13 - 18.5mm   MSS395 - MSS406
UP4 AN770 AN1030 19 - 51mm   MSS407 - MSS471
6mm - Major Diameter x 4.78 Shank x M3.5x0.6 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS475 3 * 6 4.78 3.8 M3.5x0.6 MSS524 27.5 * 6 4.78 3.8 M3.5x0.6
MSS476 3.5 * 6 4.78 3.8 M3.5x0.6 MSS525 28 * 6 4.78 3.8 M3.5x0.6
MSS477 4 * 6 4.78 3.8 M3.5x0.6 MSS526 28.5 * 6 4.78 3.8 M3.5x0.6
MSS478 4.5 * 6 4.78 3.8 M3.5x0.6 MSS527 29 * 6 4.78 3.8 M3.5x0.6
MSS479 5 * 6 4.78 3.8 M3.5x0.6 MSS528 29.5 * 6 4.78 3.8 M3.5x0.6
MSS480 5.5 * 6 4.78 3.8 M3.5x0.6 MSS529 30 * 6 4.78 3.8 M3.5x0.6
MSS481 6 * 6 4.78 3.8 M3.5x0.6 MSS530 30.5 * 6 4.78 3.8 M3.5x0.6
MSS482 6.5 * 6 4.78 3.8 M3.5x0.6 MSS531 31 * 6 4.78 3.8 M3.5x0.6
MSS483 7" * 6 4.78 3.8 M3.5x0.6 MSS532 31.5 * 6 4.78 3.8 M3.5x0.6
MSS484 7.5 * 6 4.78 3.8 M3.5x0.6 MSS533 32 * 6 4.78 3.8 M3.5x0.6
MSS485 8 * 6 4.78 3.8 M3.5x0.6 MSS534 32.5 * 6 4.78 3.8 M3.5x0.6
MSS486 8.5 * 6 4.78 3.8 M3.5x0.6 MSS535 33 * 6 4.78 3.8 M3.5x0.6
MSS487 9 * 6 4.78 3.8 M3.5x0.6 MSS536 33.5 * 6 4.78 3.8 M3.5x0.6
MSS488 9.5 * 6 4.78 3.8 M3.5x0.6 MSS537 34 * 6 4.78 3.8 M3.5x0.6
MSS489 10 * 6 4.78 3.8 M3.5x0.6 MSS538 34.5 * 6 4.78 3.8 M3.5x0.6
MSS490 10.5 * 6 4.78 3.8 M3.5x0.6 MSS539 35 * 6 4.78 3.8 M3.5x0.6
MSS491 11 * 6 4.78 3.8 M3.5x0.6 MSS540 35.5 * 6 4.78 3.8 M3.5x0.6
MSS492 11.5 * 6 4.78 3.8 M3.5x0.6 MSS541 36 * 6 4.78 3.8 M3.5x0.6
MSS493 12 * 6 4.78 3.8 M3.5x0.6 MSS542 36.5 * 6 4.78 3.8 M3.5x0.6
MSS494 12.5 * 6 4.78 3.8 M3.5x0.6 MSS543 37 * 6 4.78 3.8 M3.5x0.6
MSS495 13 * 6 4.78 3.8 M3.5x0.6 MSS544 37.5 * 6 4.78 3.8 M3.5x0.6
MSS496 13.5 * 6 4.78 3.8 M3.5x0.6 MSS545 38 * 6 4.78 3.8 M3.5x0.6
MSS497 14 * 6 4.78 3.8 M3.5x0.6 MSS546 38.5 * 6 4.78 3.8 M3.5x0.6
MSS498 14.5 * 6 4.78 3.8 M3.5x0.6 MSS547 39 * 6 4.78 3.8 M3.5x0.6
MSS499 15 * 6 4.78 3.8 M3.5x0.6 MSS548 39.5 * 6 4.78 3.8 M3.5x0.6
MSS500 15.5 * 6 4.78 3.8 M3.5x0.6 MSS549 40 * 6 4.78 3.8 M3.5x0.6
MSS501 16 * 6 4.78 3.8 M3.5x0.6 MSS550 40.5 * 6 4.78 3.8 M3.5x0.6
MSS502 16.5 * 6 4.78 3.8 M3.5x0.6 MSS551 41 * 6 4.78 3.8 M3.5x0.6
MSS503 17 * 6 4.78 3.8 M3.5x0.6 MSS552 41.5 * 6 4.78 3.8 M3.5x0.6
MSS504 17.5 * 6 4.78 3.8 M3.5x0.6 MSS553 42 * 6 4.78 3.8 M3.5x0.6
MSS505 18 * 6 4.78 3.8 M3.5x0.6 MSS554 42.5 * 6 4.78 3.8 M3.5x0.6
MSS506 18.5 * 6 4.78 3.8 M3.5x0.6 MSS555 43 * 6 4.78 3.8 M3.5x0.6
MSS507 19 * 6 4.78 3.8 M3.5x0.6 MSS556 43.5 * 6 4.78 3.8 M3.5x0.6
MSS508 19.5 * 6 4.78 3.8 M3.5x0.6 MSS557 44 * 6 4.78 3.8 M3.5x0.6
MSS509 20 * 6 4.78 3.8 M3.5x0.6 MSS558 44.5 * 6 4.78 3.8 M3.5x0.6
MSS510 20.5 * 6 4.78 3.8 M3.5x0.6 MSS559 45 * 6 4.78 3.8 M3.5x0.6
MSS511 21 * 6 4.78 3.8 M3.5x0.6 MSS560 45.5 * 6 4.78 3.8 M3.5x0.6
MSS512 21.5 * 6 4.78 3.8 M3.5x0.6 MSS561 46 * 6 4.78 3.8 M3.5x0.6
MSS513 22 * 6 4.78 3.8 M3.5x0.6 MSS562 46.5 * 6 4.78 3.8 M3.5x0.6
MSS514 22.5 * 6 4.78 3.8 M3.5x0.6 MSS563 47 * 6 4.78 3.8 M3.5x0.6
MSS515 23 * 6 4.78 3.8 M3.5x0.6 MSS564 47.5 * 6 4.78 3.8 M3.5x0.6
MSS516 23.5 * 6 4.78 3.8 M3.5x0.6 MSS565 48 * 6 4.78 3.8 M3.5x0.6
MSS517 24 * 6 4.78 3.8 M3.5x0.6 MSS566 48.5 * 6 4.78 3.8 M3.5x0.6
MSS518 24.5 * 6 4.78 3.8 M3.5x0.6 MSS567 49 * 6 4.78 3.8 M3.5x0.6
MSS519 25 * 6 4.78 3.8 M3.5x0.6 MSS568 49.5 * 6 4.78 3.8 M3.5x0.6
MSS520 25.5 * 6 4.78 3.8 M3.5x0.6 MSS569 50 * 6 4.78 3.8 M3.5x0.6
MSS521 26 * 6 4.78 3.8 M3.5x0.6 MSS570 50.5 * 6 4.78 3.8 M3.5x0.6
MSS522 26.5 * 6 4.78 3.8 M3.5x0.6 MSS571 51 * 6 4.78 3.8 M3.5x0.6
MSS523 27 * 6 4.78 3.8 M3.5x0.6
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length Unicorp Part
Number
6mm
Diameter		 UP4 AN740 AN1000 3 -  5.5mm MSS475 - MSS480
UP4 AN750 AN1010 6 - 12.5mm MSS481 - MSS494
UP4 AN760 AN1020 13 - 18.5mm MSS495 - MSS506
UP4 AN770 AN1030 19 - 51mm MSS507 - MSS571
