Metric 5mm Swage Standoffs (Threaded)

 Back To Swage Standoffs Page

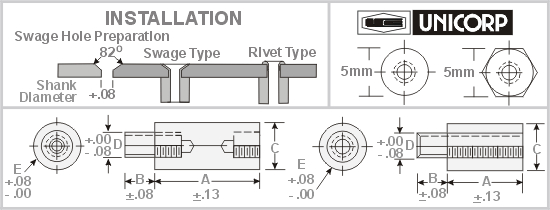

*Slightly Chamfered to Permit Smooth Entry / Fit.

   Build Part Number
   Material & Shape
   Plating & Finish
   Shank Length		 Depth of Thread
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
American Standard Swages
Metric Swages
5mm -  Major Diameter  x  3.53 Shank  x  M2.5x0.45 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS275 3 * 5 3.53 2.8 M2.5x0.45 MSS298 14.5 * 5 3.53 2.8 M2.5x0.45
MSS276 3.5 * 5 3.53 2.8 M2.5x0.45 MSS299 15 * 5 3.53 2.8 M2.5x0.45
MSS277 4 * 5 3.53 2.8 M2.5x0.45 MSS300 15.5 * 5 3.53 2.8 M2.5x0.45
MSS278 4.5 * 5 3.53 2.8 M2.5x0.45 MSS301 16 * 5 3.53 2.8 M2.5x0.45
MSS279 5 * 5 3.53 2.8 M2.5x0.45 MSS302 16.5 * 5 3.53 2.8 M2.5x0.45
MSS280 5.5 * 5 3.53 2.8 M2.5x0.45 MSS303 17 * 5 3.53 2.8 M2.5x0.45
MSS281 6 * 5 3.53 2.8 M2.5x0.45 MSS304 17.5 * 5 3.53 2.8 M2.5x0.45
MSS282 6.5 * 5 3.53 2.8 M2.5x0.45 MSS305 18 * 5 3.53 2.8 M2.5x0.45
MSS283 7 * 5 3.53 2.8 M2.5x0.45 MSS306 18.5 * 5 3.53 2.8 M2.5x0.45
MSS284 7.5 * 5 3.53 2.8 M2.5x0.45 MSS307 19 * 5 3.53 2.8 M2.5x0.45
MSS285 8 * 5 3.53 2.8 M2.5x0.45 MSS308 19.5 * 5 3.53 2.8 M2.5x0.45
MSS286 8.5 * 5 3.53 2.8 M2.5x0.45 MSS309 20 * 5 3.53 2.8 M2.5x0.45
MSS287 9 * 5 3.53 2.8 M2.5x0.45 MSS310 20.5 * 5 3.53 2.8 M2.5x0.45
MSS288 9.5 * 5 3.53 2.8 M2.5x0.45 MSS311 21 * 5 3.53 2.8 M2.5x0.45
MSS289 10 * 5 3.53 2.8 M2.5x0.45 MSS312 21.5 * 5 3.53 2.8 M2.5x0.45
MSS290 10.5 * 5 3.53 2.8 M2.5x0.45 MSS313 22 * 5 3.53 2.8 M2.5x0.45
MSS291 11 * 5 3.53 2.8 M2.5x0.45 MSS314 22.5 * 5 3.53 2.8 M2.5x0.45
MSS292 11.5 * 5 3.53 2.8 M2.5x0.45 MSS315 23 * 5 3.53 2.8 M2.5x0.45
MSS293 12 * 5 3.53 2.8 M2.5x0.45 MSS316 23.5 * 5 3.53 2.8 M2.5x0.45
MSS294 12.5 * 5 3.53 2.8 M2.5x0.45 MSS317 24 * 5 3.53 2.8 M2.5x0.45
MSS295 13 * 5 3.53 2.8 M2.5x0.45 MSS318 24.5 * 5 3.53 2.8 M2.5x0.45
MSS296 13.5 * 5 3.53 2.8 M2.5x0.45 MSS319 25 * 5 3.53 2.8 M2.5x0.45
MSS297 14 * 5 3.53 2.8 M2.5x0.45 MSS320 25.5 * 5 3.53 2.8 M2.5x0.45
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part
Number
5mm Diameter UP3 AN700 AN960 3 -  5.5mm MSS275 - MSS280
UP3 AN710 AN970 6 - 12.5mm MSS281 - MSS294
UP3 AN720 AN980 13 - 18.5mm MSS295 - MSS306
UP3 AN730 AN990 19 - 25.5mm MSS307 - MSS320
5mm -  Major Diameter  x  3.53 Shank  x  M3.0x0.5 Thread
SELECT Part
Number then Go to Build Part
Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS325 3 * 5 3.53 3.1 M3.0x0.5 MSS348 14.5 * 5 3.53 3.1 M3.0x0.5
MSS326 3.5 * 5 3.53 3.1 M3.0x0.5 MSS349 15 * 5 3.53 3.1 M3.0x0.5
MSS327 4 * 5 3.53 3.1 M3.0x0.5 MSS350 15.5 * 5 3.53 3.1 M3.0x0.5
MSS328 4.5 * 5 3.53 3.1 M3.0x0.5 MSS351 16 * 5 3.53 3.1 M3.0x0.5
MSS329 5 * 5 3.53 3.1 M3.0x0.5 MSS352 16.5 * 5 3.53 3.1 M3.0x0.5
MSS330 5.5 * 5 3.53 3.1 M3.0x0.5 MSS353 17 * 5 3.53 3.1 M3.0x0.5
MSS331 6 * 5 3.53 3.1 M3.0x0.5 MSS354 17.5 * 5 3.53 3.1 M3.0x0.5
MSS332 6.5 * 5 3.53 3.1 M3.0x0.5 MSS355 18 * 5 3.53 3.1 M3.0x0.5
MSS333 7 * 5 3.53 3.1 M3.0x0.5 MSS356 18.5 * 5 3.53 3.1 M3.0x0.5
MSS334 7.5 * 5 3.53 3.1 M3.0x0.5 MSS357 19 * 5 3.53 3.1 M3.0x0.5
MSS335 8 * 5 3.53 3.1 M3.0x0.5 MSS358 19.5 * 5 3.53 3.1 M3.0x0.5
MSS336 8.5 * 5 3.53 3.1 M3.0x0.5 MSS359 20 * 5 3.53 3.1 M3.0x0.5
MSS337 9 * 5 3.53 3.1 M3.0x0.5 MSS360 20.5 * 5 3.53 3.1 M3.0x0.5
MSS338 9.5 * 5 3.53 3.1 M3.0x0.5 MSS361 21 * 5 3.53 3.1 M3.0x0.5
MSS339 10 * 5 3.53 3.1 M3.0x0.5 MSS362 21.5 * 5 3.53 3.1 M3.0x0.5
MSS340 10.5 * 5 3.53 3.1 M3.0x0.5 MSS363 22 * 5 3.53 3.1 M3.0x0.5
MSS341 11 * 5 3.53 3.1 M3.0x0.5 MSS364 22.5 * 5 3.53 3.1 M3.0x0.5
MSS342 11.5 * 5 3.53 3.1 M3.0x0.5 MSS365 23 * 5 3.53 3.1 M3.0x0.5
MSS343 12 * 5 3.53 3.1 M3.0x0.5 MSS366 23.5 * 5 3.53 3.1 M3.0x0.5
MSS344 12.5 * 5 3.53 3.1 M3.0x0.5 MSS367 24 * 5 3.53 3.1 M3.0x0.5
MSS345 13 * 5 3.53 3.1 M3.0x0.5 MSS368 24.5 * 5 3.53 3.1 M3.0x0.5
MSS346 13.5 * 5 3.53 3.1 M3.0x0.5 MSS369 25 * 5 3.53 3.1 M3.0x0.5
MSS347 14 * 5 3.53 3.1 M3.0x0.5 MSS370 25.5 * 5 3.53 3.1 M3.0x0.5
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part
Number
5mm Diameter UP3 AN700 AN960 3 -  5.5mm MSS325 - MSS330
UP3 AN710 AN970 6 - 12.5mm MSS331 - MSS344
UP3 AN720 AN980 13 - 18.5mm MSS345 - MSS356
UP3 AN730 AN990 19 - 25.5mm MSS357 - MSS370
