Metric 8mm Swage Standoffs (Threaded)

 Back To Swage Standoffs Page

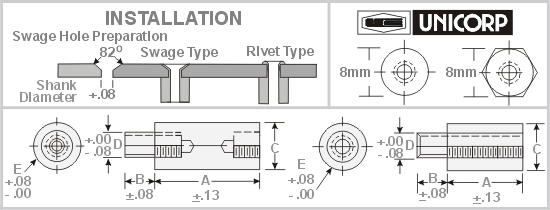

*Slightly Chamfered to Permit Smooth Entry / Fit.

   Build Part Number
   Material & Shape
   Plating & Finish
   Shank Length		 Depth of Thread
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
American Standard Swages
Metric Swages
8mm -  Major Diameter  x  5.94 Shank  x  M3.5x0.6 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS575 3 * 8 5.94 5.1 M3.5x0.6 MSS624 27.5 * 8 5.94 5.1 M3.5x0.6
MSS576 3.5 * 8 5.94 5.1 M3.5x0.6 MSS625 28 * 8 5.94 5.1 M3.5x0.6
MSS577 4 * 8 5.94 5.1 M3.5x0.6 MSS626 28.5 * 8 5.94 5.1 M3.5x0.6
MSS578 4.5 * 8 5.94 5.1 M3.5x0.6 MSS627 29 * 8 5.94 5.1 M3.5x0.6
MSS579 5 * 8 5.94 5.1 M3.5x0.6 MSS628 29.5 * 8 5.94 5.1 M3.5x0.6
MSS580 5.5 * 8 5.94 5.1 M3.5x0.6 MSS629 30 * 8 5.94 5.1 M3.5x0.6
MSS581 6 * 8 5.94 5.1 M3.5x0.6 MSS630 30.5 * 8 5.94 5.1 M3.5x0.6
MSS582 6.5 * 8 5.94 5.1 M3.5x0.6 MSS631 31 * 8 5.94 5.1 M3.5x0.6
MSS583 7 * 8 5.94 5.1 M3.5x0.6 MSS632 31.5 * 8 5.94 5.1 M3.5x0.6
MSS584 7.5 * 8 5.94 5.1 M3.5x0.6 MSS633 32 * 8 5.94 5.1 M3.5x0.6
MSS585 8 * 8 5.94 5.1 M3.5x0.6 MSS634 32.5 * 8 5.94 5.1 M3.5x0.6
MSS586 8.5 * 8 5.94 5.1 M3.5x0.6 MSS635 33 * 8 5.94 5.1 M3.5x0.6
MSS587 9 * 8 5.94 5.1 M3.5x0.6 MSS636 33.5 * 8 5.94 5.1 M3.5x0.6
MSS588 9.5 * 8 5.94 5.1 M3.5x0.6 MSS637 34 * 8 5.94 5.1 M3.5x0.6
MSS589 10 * 8 5.94 5.1 M3.5x0.6 MSS638 34.5 * 8 5.94 5.1 M3.5x0.6
MSS590 10.5 * 8 5.94 5.1 M3.5x0.6 MSS639 35 * 8 5.94 5.1 M3.5x0.6
MSS591 11 * 8 5.94 5.1 M3.5x0.6 MSS640 35.5 * 8 5.94 5.1 M3.5x0.6
MSS592 11.5 * 8 5.94 5.1 M3.5x0.6 MSS641 36 * 8 5.94 5.1 M3.5x0.6
MSS593 12 * 8 5.94 5.1 M3.5x0.6 MSS642 36.5 * 8 5.94 5.1 M3.5x0.6
MSS594 12.5 * 8 5.94 5.1 M3.5x0.6 MSS643 37 * 8 5.94 5.1 M3.5x0.6
MSS595 13 * 8 5.94 5.1 M3.5x0.6 MSS644 37.5 * 8 5.94 5.1 M3.5x0.6
MSS596 13.5 * 8 5.94 5.1 M3.5x0.6 MSS645 38 * 8 5.94 5.1 M3.5x0.6
MSS597 14 * 8 5.94 5.1 M3.5x0.6 MSS646 38.5 * 8 5.94 5.1 M3.5x0.6
MSS598 14.5 * 8 5.94 5.1 M3.5x0.6 MSS647 39 * 8 5.94 5.1 M3.5x0.6
MSS599 15 * 8 5.94 5.1 M3.5x0.6 MSS648 39.5 * 8 5.94 5.1 M3.5x0.6
MSS600 15.5 * 8 5.94 5.1 M3.5x0.6 MSS649 40 * 8 5.94 5.1 M3.5x0.6
MSS601 16 * 8 5.94 5.1 M3.5x0.6 MSS650 40.5 * 8 5.94 5.1 M3.5x0.6
MSS602 16.5 * 8 5.94 5.1 M3.5x0.6 MSS651 41 * 8 5.94 5.1 M3.5x0.6
MSS603 17 * 8 5.94 5.1 M3.5x0.6 MSS652 41.5 * 8 5.94 5.1 M3.5x0.6
MSS604 17.5 * 8 5.94 5.1 M3.5x0.6 MSS653 42 * 8 5.94 5.1 M3.5x0.6
MSS605 18 * 8 5.94 5.1 M3.5x0.6 MSS654 42.5 * 8 5.94 5.1 M3.5x0.6
MSS606 18.5 * 8 5.94 5.1 M3.5x0.6 MSS655 43 * 8 5.94 5.1 M3.5x0.6
MSS607 19 * 8 5.94 5.1 M3.5x0.6 MSS656 43.5 * 8 5.94 5.1 M3.5x0.6
MSS608 19.5 * 8 5.94 5.1 M3.5x0.6 MSS657 44 * 8 5.94 5.1 M3.5x0.6
MSS609 20 * 8 5.94 5.1 M3.5x0.6 MSS658 44.5 * 8 5.94 5.1 M3.5x0.6
MSS610 20.5 * 8 5.94 5.1 M3.5x0.6 MSS659 45 * 8 5.94 5.1 M3.5x0.6
MSS611 21 * 8 5.94 5.1 M3.5x0.6 MSS660 45.5 * 8 5.94 5.1 M3.5x0.6
MSS612 21.5 * 8 5.94 5.1 M3.5x0.6 MSS661 46 * 8 5.94 5.1 M3.5x0.6
MSS613 22 * 8 5.94 5.1 M3.5x0.6 MSS662 46.5 * 8 5.94 5.1 M3.5x0.6
MSS614 22.5 * 8 5.94 5.1 M3.5x0.6 MSS663 47 * 8 5.94 5.1 M3.5x0.6
MSS615 23 * 8 5.94 5.1 M3.5x0.6 MSS664 47.5 * 8 5.94 5.1 M3.5x0.6
MSS616 23.5 * 8 5.94 5.1 M3.5x0.6 MSS665 48 * 8 5.94 5.1 M3.5x0.6
MSS617 24 * 8 5.94 5.1 M3.5x0.6 MSS666 48.5 * 8 5.94 5.1 M3.5x0.6
MSS618 24.5 * 8 5.94 5.1 M3.5x0.6 MSS667 49 * 8 5.94 5.1 M3.5x0.6
MSS619 25 * 8 5.94 5.1 M3.5x0.6 MSS668 49.5 * 8 5.94 5.1 M3.5x0.6
MSS620 25.5 * 8 5.94 5.1 M3.5x0.6 MSS669 50 * 8 5.94 5.1 M3.5x0.6
MSS621 26 * 8 5.94 5.1 M3.5x0.6 MSS670 50.5 * 8 5.94 5.1 M3.5x0.6
MSS622 26.5 * 8 5.94 5.1 M3.5x0.6 MSS671 51 * 8 5.94 5.1 M3.5x0.6
MSS623 27 * 8 5.94 5.1 M3.5x0.6
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part
Number
8mm Diameter UP5 AN780 AN1040 3 -  5.5mm   MSS575 - MSS580
UP5 AN790 AN1050 6 - 12.5mm   MSS581 - MSS594
UP5 AN800 AN1060 13-  18.5mm   MSS595 - MSS606
UP5 AN810 AN1070 19 - 51mm   MSS607 - MSS671
8mm -  Major Diameter x 5.94 Shank x M4.0x0.7 Thread
SELECT Part
Number then Go to Build Part
Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS675 3 * 8 5.94 5.1 M4.0x0.7 MSS724 27.5 * 8 5.94 5.1 M4.0x0.7
MSS676 3.5 * 8 5.94 5.1 M4.0x0.7 MSS725 28 * 8 5.94 5.1 M4.0x0.7
MSS677 4 * 8 5.94 5.1 M4.0x0.7 MSS726 28.5 * 8 5.94 5.1 M4.0x0.7
MSS678 4.5 * 8 5.94 5.1 M4.0x0.7 MSS727 29 * 8 5.94 5.1 M4.0x0.7
MSS679 5 * 8 5.94 5.1 M4.0x0.7 MSS728 29.5 * 8 5.94 5.1 M4.0x0.7
MSS680 5.5 * 8 5.94 5.1 M4.0x0.7 MSS729 30 * 8 5.94 5.1 M4.0x0.7
MSS681 6 * 8 5.94 5.1 M4.0x0.7 MSS730 30.5 * 8 5.94 5.1 M4.0x0.7
MSS682 6.5 * 8 5.94 5.1 M4.0x0.7 MSS731 31 * 8 5.94 5.1 M4.0x0.7
MSS683 7 * 8 5.94 5.1 M4.0x0.7 MSS732 31.5 * 8 5.94 5.1 M4.0x0.7
MSS684 7.5 * 8 5.94 5.1 M4.0x0.7 MSS733 32 * 8 5.94 5.1 M4.0x0.7
MSS685 8 * 8 5.94 5.1 M4.0x0.7 MSS734 32.5 * 8 5.94 5.1 M4.0x0.7
MSS686 8.5 * 8 5.94 5.1 M4.0x0.7 MSS735 33 * 8 5.94 5.1 M4.0x0.7
MSS687 9 * 8 5.94 5.1 M4.0x0.7 MSS736 33.5 * 8 5.94 5.1 M4.0x0.7
MSS688 9.5 * 8 5.94 5.1 M4.0x0.7 MSS737 34 * 8 5.94 5.1 M4.0x0.7
MSS689 10 * 8 5.94 5.1 M4.0x0.7 MSS738 34.5 * 8 5.94 5.1 M4.0x0.7
MSS690 10.5 * 8 5.94 5.1 M4.0x0.7 MSS739 35 * 8 5.94 5.1 M4.0x0.7
MSS691 11 * 8 5.94 5.1 M4.0x0.7 MSS740 35.5 * 8 5.94 5.1 M4.0x0.7
MSS692 11.5 * 8 5.94 5.1 M4.0x0.7 MSS741 36 * 8 5.94 5.1 M4.0x0.7
MSS693 12 * 8 5.94 5.1 M4.0x0.7 MSS742 36.5 * 8 5.94 5.1 M4.0x0.7
MSS694 12.5 * 8 5.94 5.1 M4.0x0.7 MSS743 37 * 8 5.94 5.1 M4.0x0.7
MSS695 13 * 8 5.94 5.1 M4.0x0.7 MSS744 37.5 * 8 5.94 5.1 M4.0x0.7
MSS696 13.5 * 8 5.94 5.1 M4.0x0.7 MSS745 38 * 8 5.94 5.1 M4.0x0.7
MSS697 14 * 8 5.94 5.1 M4.0x0.7 MSS746 38.5 * 8 5.94 5.1 M4.0x0.7
MSS698 14.5 * 8 5.94 5.1 M4.0x0.7 MSS747 39 * 8 5.94 5.1 M4.0x0.7
MSS699 15 * 8 5.94 5.1 M4.0x0.7 MSS748 39.5 * 8 5.94 5.1 M4.0x0.7
MSS700 15.5 * 8 5.94 5.1 M4.0x0.7 MSS749 40 * 8 5.94 5.1 M4.0x0.7
MSS701 16 * 8 5.94 5.1 M4.0x0.7 MSS750 40.5 * 8 5.94 5.1 M4.0x0.7
MSS702 16.5 * 8 5.94 5.1 M4.0x0.7 MSS751 41 * 8 5.94 5.1 M4.0x0.7
MSS703 17 * 8 5.94 5.1 M4.0x0.7 MSS752 41.5 * 8 5.94 5.1 M4.0x0.7
MSS704 17.5 * 8 5.94 5.1 M4.0x0.7 MSS753 42 * 8 5.94 5.1 M4.0x0.7
MSS705 18 * 8 5.94 5.1 M4.0x0.7 MSS754 42.5 * 8 5.94 5.1 M4.0x0.7
MSS706 18.5 * 8 5.94 5.1 M4.0x0.7 MSS755 43 * 8 5.94 5.1 M4.0x0.7
MSS707 19 * 8 5.94 5.1 M4.0x0.7 MSS756 43.5 * 8 5.94 5.1 M4.0x0.7
MSS708 19.5 * 8 5.94 5.1 M4.0x0.7 MSS757 44 * 8 5.94 5.1 M4.0x0.7
MSS709 20 * 8 5.94 5.1 M4.0x0.7 MSS758 44.5 * 8 5.94 5.1 M4.0x0.7
MSS710 20.5 * 8 5.94 5.1 M4.0x0.7 MSS759 45 * 8 5.94 5.1 M4.0x0.7
MSS711 21 * 8 5.94 5.1 M4.0x0.7 MSS760 45.5 * 8 5.94 5.1 M4.0x0.7
MSS712 21.5 * 8 5.94 5.1 M4.0x0.7 MSS761 46 * 8 5.94 5.1 M4.0x0.7
MSS713 22 * 8 5.94 5.1 M4.0x0.7 MSS762 46.5 * 8 5.94 5.1 M4.0x0.7
MSS714 22.5 * 8 5.94 5.1 M4.0x0.7 MSS763 47 * 8 5.94 5.1 M4.0x0.7
MSS715 23 * 8 5.94 5.1 M4.0x0.7 MSS764 47.5 * 8 5.94 5.1 M4.0x0.7
MSS716 23.5 * 8 5.94 5.1 M4.0x0.7 MSS765 48 * 8 5.94 5.1 M4.0x0.7
MSS717 24 * 8 5.94 5.1 M4.0x0.7 MSS766 48.5 * 8 5.94 5.1 M4.0x0.7
MSS718 24.5 * 8 5.94 5.1 M4.0x0.7 MSS767 49 * 8 5.94 5.1 M4.0x0.7
MSS719 25 * 8 5.94 5.1 M4.0x0.7 MSS768 49.5 * 8 5.94 5.1 M4.0x0.7
MSS720 25.5 * 8 5.94 5.1 M4.0x0.7 MSS769 50 * 8 5.94 5.1 M4.0x0.7
MSS721 26 * 8 5.94 5.1 M4.0x0.7 MSS770 50.5 * 8 5.94 5.1 M4.0x0.7
MSS722 26.5 * 8 5.94 5.1 M4.0x0.7 MSS771 51 * 8 5.94 5.1 M4.0x0.7
MSS723 27 * 8 5.94 5.1 M4.0x0.7
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part
Number
8mm Diameter UP5 AN780 AN1040 3 - 5.5mm MSS675 - MSS680
UP5 AN790 AN1050 6 - 12.5mm MSS681 - MSS694
UP5 AN800 AN1060 13 - 18.5mm MSS695 - MSS706
UP5 AN810 AN1070 19 - 51mm MSS707 - MSS771
