Metric 3mm Swage Standoffs (Threaded)

Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

   Build Part Number
   Material & Shape
   Plating & Finish
   Shank Length		 Depth of Thread
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
American Standard Swages
Metric Swages

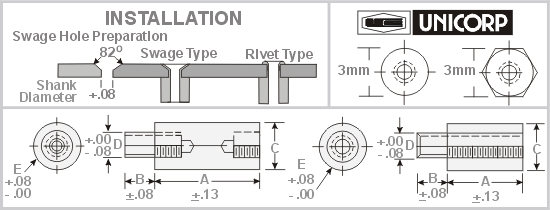

3mm - Major Diameter  x  2.3 Shank  x  M1.6x0.4 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS100 3 * 3 2.3 1.7 M1.6x0.4 MSS111 8.5 * 3 2.3 1.7 M1.6x0.4
MSS101 3.5 * 3 2.3 1.7 M1.6x0.4 MSS112 9 * 3 2.3 1.7 M1.6x0.4
MSS102 4 * 3 2.3 1.7 M1.6x0.4 MSS113 9.5 * 3 2.3 1.7 M1.6x0.4
MSS103 4.5 * 3 2.3 1.7 M1.6x0.4 MSS114 10 * 3 2.3 1.7 M1.6x0.4
MSS104 5 * 3 2.3 1.7 M1.6x0.4 MSS115 10.5 * 3 2.3 1.7 M1.6x0.4
MSS105 5.5 * 3 2.3 1.7 M1.6x0.4 MSS116 11 * 3 2.3 1.7 M1.6x0.4
MSS106 6 * 3 2.3 1.7 M1.6x0.4 MSS117 11.5 * 3 2.3 1.7 M1.6x0.4
MSS107 6.5 * 3 2.3 1.7 M1.6x0.4 MSS118 12 * 3 2.3 1.7 M1.6x0.4
MSS108 7 * 3 2.3 1.7 M1.6x0.4 MSS119 12.5 * 3 2.3 1.7 M1.6x0.4
MSS109 7.5 * 3 2.3 1.7 M1.6x0.4 MSS120 13 * 3 2.3 1.7 M1.6x0.4
MSS110 8 * 3 2.3 1.7 M1.6x0.4

Swage Tooling For:

 Punch Round Anvil Hex Anvil Length Unicorp Part Number

3mm Diameter

 UP1 AN640 AN900 3 -  5.5mm MSS100 - MSS105
UP1 AN650 AN910 6 - 13mm MSS106 - MSS120
