Metric 4mm Swage Standoffs (Threaded)

 Back To Swage Standoffs Page

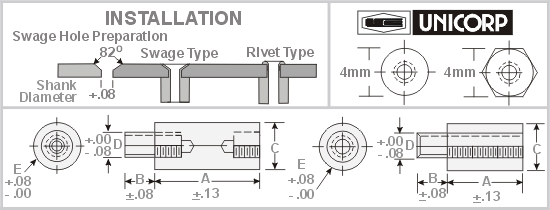

*Slightly Chamfered to Permit Smooth Entry / Fit.

   Build Part Number
   Material & Shape
   Plating & Finish
   Shank Length		 Depth of Thread
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
American Standard Swages
Metric Swages
4mm - Major Diameter  x  3.53  Shank  x  M2.5x0.45 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS125 3 * 4 3.53 2.8 M2.5x0.45 MSS148 14.5 * 4 3.53 2.8 M2.5x0.45
MSS126 3.5 * 4 3.53 2.8 M2.5x0.45 MSS149 15 * 4 3.53 2.8 M2.5x0.45
MSS127 4 * 4 3.53 2.8 M2.5x0.45 MSS150 15.5 * 4 3.53 2.8 M2.5x0.45
MSS128 4.5 * 4 3.53 2.8 M2.5x0.45 MSS151 16 * 4 3.53 2.8 M2.5x0.45
MSS129 5 * 4 3.53 2.8 M2.5x0.45 MSS152 16.5 * 4 3.53 2.8 M2.5x0.45
MSS130 5.5 * 4 3.53 2.8 M2.5x0.45 MSS153 17 * 4 3.53 2.8 M2.5x0.45
MSS131 6 * 4 3.53 2.8 M2.5x0.45 MSS154 17.5 * 4 3.53 2.8 M2.5x0.45
MSS132 6.5 * 4 3.53 2.8 M2.5x0.45 MSS155 18 * 4 3.53 2.8 M2.5x0.45
MSS133 7 * 4 3.53 2.8 M2.5x0.45 MSS156 18.5 * 4 3.53 2.8 M2.5x0.45
MSS134 7.5 * 4 3.53 2.8 M2.5x0.45 MSS157 19 * 4 3.53 2.8 M2.5x0.45
MSS135 8 * 4 3.53 2.8 M2.5x0.45 MSS158 19.5 * 4 3.53 2.8 M2.5x0.45
MSS136 8.5 * 4 3.53 2.8 M2.5x0.45 MSS159 20 * 4 3.53 2.8 M2.5x0.45
MSS137 9 * 4 3.53 2.8 M2.5x0.45 MSS160 20.5 * 4 3.53 2.8 M2.5x0.45
MSS138 9.5 * 4 3.53 2.8 M2.5x0.45 MSS161 21 * 4 3.53 2.8 M2.5x0.45
MSS139 10 * 4 3.53 2.8 M2.5x0.45 MSS162 21.5 * 4 3.53 2.8 M2.5x0.45
MSS140 10.5 * 4 3.53 2.8 M2.5x0.45 MSS163 22 * 4 3.53 2.8 M2.5x0.45
MSS141 11 * 4 3.53 2.8 M2.5x0.45 MSS164 22.5 * 4 3.53 2.8 M2.5x0.45
MSS142 11.5 * 4 3.53 2.8 M2.5x0.45 MSS165 23 * 4 3.53 2.8 M2.5x0.45
MSS143 12 * 4 3.53 2.8 M2.5x0.45 MSS166 23.5 * 4 3.53 2.8 M2.5x0.45
MSS144 12.5 * 4 3.53 2.8 M2.5x0.45 MSS167 24 * 4 3.53 2.8 M2.5x0.45
MSS145 13 * 4 3.53 2.8 M2.5x0.45 MSS168 24.5 * 4 3.53 2.8 M2.5x0.45
MSS146 13.5 * 4 3.53 2.8 M2.5x0.45 MSS169 25 * 4 3.53 2.8 M2.5x0.45
MSS147 14 * 4 3.53 2.8 M2.5x0.45 MSS170 25.5 * 4 3.53 2.8 M2.5x0.45
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
4mm Diameter UP2 AN660 AN920 3 - 5.5mm MSS125 -  MSS130
UP2 AN670 AN930 6 - 12.5mm MSS131 -  MSS144
UP2 AN680 AN940 13 - 18.5mm MSS145 -  MSS156
UP2 AN690 AN950 19 - 25.5mm MSS157 -  MSS170
