Metric 4.5mm Swage Standoffs (Threaded)

 Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

   Build Part Number
   Material & Shape
   Plating & Finish
   Shank Length		 Depth of Thread
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
American Standard Swages
Metric Swages

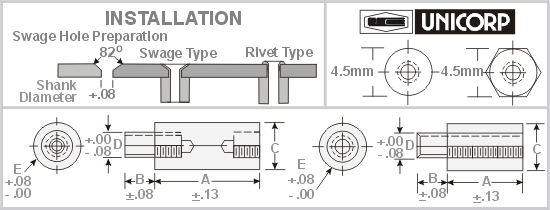

4.5mm -  Major Diameter  x  3.53 Shank  x  M2.5x0.45 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS175 3 * 4.5 3.53 2.92 M2.5x0.45 MSS198 14.5 * 4.5 3.53 2.92 M2.5x0.45
MSS176 3.5 * 4.5 3.53 2.92 M2.5x0.45 MSS199 15 * 4.5 3.53 2.92 M2.5x0.45
MSS177 4 * 4.5 3.53 2.92 M2.5x0.45 MSS200 15.5 * 4.5 3.53 2.92 M2.5x0.45
MSS178 4.5 * 4.5 3.53 2.92 M2.5x0.45 MSS201 16 * 4.5 3.53 2.92 M2.5x0.45
MSS179 5 * 4.5 3.53 2.92 M2.5x0.45 MSS202 16.5 * 4.5 3.53 2.92 M2.5x0.45
MSS180 5.5 * 4.5 3.53 2.92 M2.5x0.45 MSS203 17 * 4.5 3.53 2.92 M2.5x0.45
MSS181 6 * 4.5 3.53 2.92 M2.5x0.45 MSS204 17.5 * 4.5 3.53 2.92 M2.5x0.45
MSS182 6.5 * 4.5 3.53 2.92 M2.5x0.45 MSS205 18 * 4.5 3.53 2.92 M2.5x0.45
MSS183 7 * 4.5 3.53 2.92 M2.5x0.45 MSS206 18.5 * 4.5 3.53 2.92 M2.5x0.45
MSS184 7.5 * 4.5 3.53 2.92 M2.5x0.45 MSS207 19 * 4.5 3.53 2.92 M2.5x0.45
MSS185 8 * 4.5 3.53 2.92 M2.5x0.45 MSS208 19.5 * 4.5 3.53 2.92 M2.5x0.45
MSS186 8.5 * 4.5 3.53 2.92 M2.5x0.45 MSS209 20 * 4.5 3.53 2.92 M2.5x0.45
MSS187 9 * 4.5 3.53 2.92 M2.5x0.45 MSS210 20.5 * 4.5 3.53 2.92 M2.5x0.45
MSS188 9.5 * 4.5 3.53 2.92 M2.5x0.45 MSS211 21 * 4.5 3.53 2.92 M2.5x0.45
MSS189 10 * 4.5 3.53 2.92 M2.5x0.45 MSS212 21.5 * 4.5 3.53 2.92 M2.5x0.45
MSS190 10.5 * 4.5 3.53 2.92 M2.5x0.45 MSS213 22 * 4.5 3.53 2.92 M2.5x0.45
MSS191 11 * 4.5 3.53 2.92 M2.5x0.45 MSS214 22.5 * 4.5 3.53 2.92 M2.5x0.45
MSS192 11.5 * 4.5 3.53 2.92 M2.5x0.45 MSS215 23 * 4.5 3.53 2.92 M2.5x0.45
MSS193 12 * 4.5 3.53 2.92 M2.5x0.45 MSS216 23.5 * 4.5 3.53 2.92 M2.5x0.45
MSS194 12.5 * 4.5 3.53 2.92 M2.5x0.45 MSS217 24 * 4.5 3.53 2.92 M2.5x0.45
MSS195 13 * 4.5 3.53 2.92 M2.5x0.45 MSS218 24.5 * 4.5 3.53 2.92 M2.5x0.45
MSS196 13.5 * 4.5 3.53 2.92 M2.5x0.45 MSS219 25 * 4.5 3.53 2.92 M2.5x0.45
MSS197 14 * 4.5 3.53 2.92 M2.5x0.45 MSS220 25.5 * 4.5 3.53 2.92 M2.5x0.45
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp
Part Number
4.5mm Diameter UP3 AN700 AN960 3 - 5.5mm MSS175 - MSS180
UP3 AN710 AN970 6 - 12.5mm MSS181 - MSS194
UP3 AN720 AN980 13 - 18.5mm MSS195 - MSS206
UP3 AN730 AN990 19 - 25.5mm MSS207 - MSS220
4.5mm -  Major Diameter  x  3.53 Shank  x  M3.0x0.5 Thread
SELECT PART NUMBER then Go to Build Part Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS225 3 * 4.5 3.53 3.1 M3.0x0.5 MSS248 14.5 * 4.5 3.53 3.1 M3.0x0.5
MSS226 3.5 * 4.5 3.53 3.1 M3.0x0.5 MSS249 15 * 4.5 3.53 3.1 M3.0x0.5
MSS227 4 * 4.5 3.53 3.1 M3.0x0.5 MSS250 15.5 * 4.5 3.53 3.1 M3.0x0.5
MSS228 4.5 * 4.5 3.53 3.1 M3.0x0.5 MSS251 16 * 4.5 3.53 3.1 M3.0x0.5
MSS229 5 * 4.5 3.53 3.1 M3.0x0.5 MSS252 16.5 * 4.5 3.53 3.1 M3.0x0.5
MSS230 5.5 * 4.5 3.53 3.1 M3.0x0.5 MSS253 17 * 4.5 3.53 3.1 M3.0x0.5
MSS231 6 * 4.5 3.53 3.1 M3.0x0.5 MSS254 17.5 * 4.5 3.53 3.1 M3.0x0.5
MSS232 6.5 * 4.5 3.53 3.1 M3.0x0.5 MSS255 18 * 4.5 3.53 3.1 M3.0x0.5
MSS233 7 * 4.5 3.53 3.1 M3.0x0.5 MSS256 18.5 * 4.5 3.53 3.1 M3.0x0.5
MSS234 7.5 * 4.5 3.53 3.1 M3.0x0.5 MSS257 19 * 4.5 3.53 3.1 M3.0x0.5
MSS235 8 * 4.5 3.53 3.1 M3.0x0.5 MSS258 19.5 * 4.5 3.53 3.1 M3.0x0.5
MSS236 8.5 * 4.5 3.53 3.1 M3.0x0.5 MSS259 20 * 4.5 3.53 3.1 M3.0x0.5
MSS237 9 * 4.5 3.53 3.1 M3.0x0.5 MSS260 20.5 * 4.5 3.53 3.1 M3.0x0.5
MSS238 9.5 * 4.5 3.53 3.1 M3.0x0.5 MSS261 21 * 4.5 3.53 3.1 M3.0x0.5
MSS239 10 * 4.5 3.53 3.1 M3.0x0.5 MSS262 21.5 * 4.5 3.53 3.1 M3.0x0.5
MSS240 10.5 * 4.5 3.53 3.1 M3.0x0.5 MSS263 22 * 4.5 3.53 3.1 M3.0x0.5
MSS241 11 * 4.5 3.53 3.1 M3.0x0.5 MSS264 22.5 * 4.5 3.53 3.1 M3.0x0.5
MSS242 11.5 * 4.5 3.53 3.1 M3.0x0.5 MSS265 23 * 4.5 3.53 3.1 M3.0x0.5
MSS243 12 * 4.5 3.53 3.1 M3.0x0.5 MSS266 23.5 * 4.5 3.53 3.1 M3.0x0.5
MSS244 12.5 * 4.5 3.53 3.1 M3.0x0.5 MSS267 24 * 4.5 3.53 3.1 M3.0x0.5
MSS245 13 * 4.5 3.53 3.1 M3.0x0.5 MSS268 24.5 * 4.5 3.53 3.1 M3.0x0.5
MSS246 13.5 * 4.5 3.53 3.1 M3.0x0.5 MSS269 25 * 4.5 3.53 3.1 M3.0x0.5
MSS247 14 * 4.5 3.53 3.1 M3.0x0.5 MSS270 25.5 * 4.5 3.53 3.1 M3.0x0.5
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
4.5mm Diameter UP3 AN700 AN960 3 -  5.5mm MSS225 - MSS230
UP3 AN710 AN970 6 - 12.5mm MSS231 - MSS244
UP3 AN720 AN980 13 - 18.5mm MSS245 - MSS256
UP3 AN730 AN990 19- 25.5mm MSS257 - MSS270
