Metric Captive Panel Hardware
Screws, Retainers, Retainer Washers, Springs
Part Numbers: (M4001 thru M4528)
(M40R01 thru M46R24)  (MRN-1 thru MRN-7)  (MRS-1 thru MRS-7)
(MSP-1 and MSP-2)  (MPW431 thru MPW436)










Select From These American Standard Dimensions (inches)
       Build Your Part #

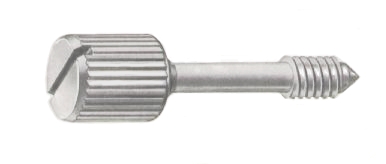

M4000 Captive Screws
*Available in both Hex Head & Round Head
Externally Relieved Body  FSC- 5305-120  (Part #  M4001- M4099-B)

       Material & Shape
       Plating & Finishes
       Retainer Installation
       All Technical Data
       Worksheet Helper

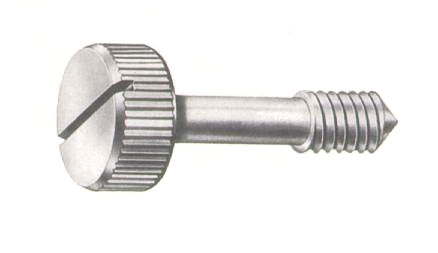

M4100 Captive Screws
*Available in both Hex Head & Round Head
Externally Relieved Body  FSC- 5305-120  (Part #  M4101- M4197)

       Thread Locking Info
       Thread Locking Codes
       Conversion Chart
       Standard Captive

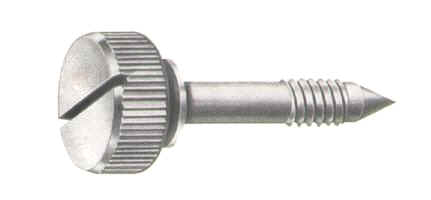

M4200 Captive Screws
Externally Relieved Body  FSC- 5305-120  (Part #  M4201- M4268)



Metric
Captive Hardware







M4300 Captive Screws
Externally Relieved Body  FSC- 5305-120  (Part #  M4301- M4356)






M4400 Captive Screws
Externally Relieved Body  FSC- 5305-120  (Part #  M4401- M4478)

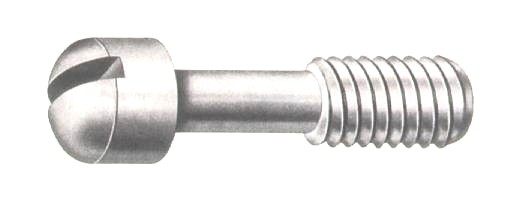

M4500 Captive Screws
Externally Relieved Body  FSC- 5305-120  (Part #  M4501- M4528)






M40R Retainer
Installation
FSC- 5304- 411 Threaded & Knurled  (Part #  M40R01- M40R30)






M41R Retainer
Installation
FSC-5304- 411 Threaded (Not Knurled)  (Part #  M41R01-M41R34)






M42R Retainer
Installation
FSC- 5304- 411 Threaded w/ Counterbore  (Part #  M42R01- M42R35)






M43R Retainer
Installation
FSC-5304- 411 Unthreaded  (Part #  M43R01- M43R34)






M44R Retainer
Installation
FSC- 5304- 411 Unthreaded w/ Counterbore  (Part #  M44R01- M44R35)






M45R Retainer
Installation
FSC-5304- 411 Threaded  (Part #   M45R01- M45R28)






M46R Retainer
Installation
FSC-5304- 411 Threaded  (Part #  M46R01- M46R24)






Retainer Washers MRN-NYLON
Used with retainer M43R and M44R  (Part #  MRN1 thru MRN7)






Retainer Washers MRS-STAINLESS STEEL
Used with retainer M43R and M44R  (Part #  MRS1 thru MRS7)






Springs MSP-1
Used with retainers M42R and M44R
Used with screws M3, M3.5, M4, M5, M6 threads  (Part #  MSP1)






Springs MSP-2
Used with retainers M42R and M44R
Used with screws M3 or larger threads  (Part #  MSP2)






Decorative Panel Washers
Threaded
Used to prevent damage to panel being secured  (Part #  MPW431- MPW436)







  DIAMETER:  5mm through 19mm
SHAPE:  Round and Hex. Hex head cannot be knurled. Only M4000 and M4100 series are available in both Hex & Round head
KNURL:  Straight
HEAD:  Knurled and Slotted
CONFIGURATION:  A) Round Head Screws: Knurled / Slotted- Knurled / Unslotted. B) Hex Head Screws: Slotted & Unslotted
MATERIAL:  Stainless Steel, Carbon Steel, Aluminum, Brass (Also available in Nylon For Retainer Washers Only)
LENGTH:  Wide variety of lengths in .5mm increments- up to 51mm
LENGTH (for Retainers):  Wide variety of lengths in 6.5mm through 16mm
RETAINER:  Standard and Spring Loaded, 1.3mm through 16mm shank length
FINISH:  Available in 24 finishes - See Chart
THREAD:  M2.5 through M8 / Internal Thread- Class 6H / External Thread- Class 6G / Thread Locking Products available
TOLERANCE:  See chart on each part number page
Diameter: Standard commercial bar stock tolerances
















  MODIFIED PARTS- ENGINEERING ASSISTANCE:
       We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department.  Contact Us
       Captive Panel Screws- Retainers 5mm thru 19mm, .132 thru .750- Lengths: .5mm thru 51mm, 1/16" thru 2"- Lengths for retainers: 6.5mm thru 16mm, 1/4" thru 5/8". Unicorp Captive round- hex in stainless steel, carbon steel, aluminum, brass, also nylon for retainers washers only, with knurl- straight, head- knurled and slotted.
       Stock 5mm thru 19mm, .132 thru .750 in lengths of 1/64 of an inch increments to eliminate the need for special orders different head configurations other than illustrated are also stocked, but not in the depth or quantities as standard items.












More Information on Thread Locking Products



  ND® THREAD LOCKING PRODUCTS:
       Thread locking products can be applied by Unicorp to Male- Female Standoffs, Jack Screws, Male-Male Standoffs, Captive Panel Screws, Thumb Screws and Shoulder Screws, this would also apply in some cases to Standoffs which are internally threaded.
