Metric M4400 Captive Panel Screws
Externally Relieved Body-FSC-5305-120
Back To Captive Screws & Retainers Page

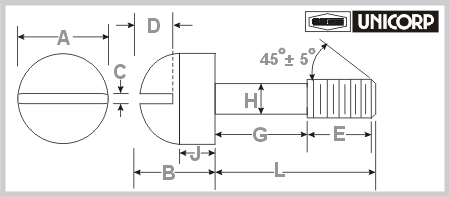

*External Thread has a 45 °Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 A
± 0.2		 B
± 0.2		 C
± .15		 D
± .16		 E
REF		 G
± 0.3		 H
± 0.15		 L
REF		 J
REF		 Thread
M4401 3.2 2 0.8 1 4 2.5 1.5 6.5 1.5 M2.0 x 0.4
M4402 3.2 2 0.8 1 4 4 1.5 8 1.5 M2.0 x 0.4
M4403 3.2 2 0.8 1 4 5.5 1.5 9.5 1.5 M2.0 x 0.4
M4404 3.2 2 0.8 1 4 7 1.5 11 1.5 M2.0 x 0.4
M4405 3.2 2 0.8 1 4 9 1.5 13 1.5 M2.0 x 0.4
M4406 3.2 2 0.8 1 4 10.5 1.5 14.5 1.5 M2.0 x 0.4
M4407 3.2 2 0.8 1 4 12 1.5 16 1.5 M2.0 x 0.4
M4408 3.2 2 0.8 1 4 13.5 1.5 17.5 1.5 M2.0 x 0.4
M4409 3.2 2 0.8 1 4 15 1.5 19 1.5 M2.0 x 0.4
M4410 4 2.5 0.9 1.1 4 2.5 1.8 6.5 1.8 M2.5 x 0.45
M4411 4 2.5 0.9 1.1 4 4 1.8 8 1.8 M2.5 x 0.45
M4412 4 2.5 0.9 1.1 4 5.5 1.8 9.5 1.8 M2.5 x 0.45
M4413 4 2.5 0.9 1.1 4 7 1.8 11 1.8 M2.5 x 0.45
M4414 4 2.5 0.9 1.1 4 9 1.8 13 1.8 M2.5 x 0.45
M4415 4 2.5 0.9 1.1 4 10.5 1.8 14.5 1.8 M2.5 x 0.45
M4416 4 2.5 0.9 1.1 4 12 1.8 16 1.8 M2.5 x 0.45
M4417 4 2.5 0.9 1.1 4 13.5 1.8 17.5 1.8 M2.5 x 0.45
M4418 4 2.5 0.9 1.1 4 15 1.8 19 1.8 M2.5 x 0.45
M4419 4.4 2.7 1 1.2 4.8 1.7 2 6.5 2 M3.0 x 0.5
Part
Number		 A
± 0.2		 B
± 0.2		 C
± .15		 D
± .16		 E
REF		 G
± 0.3		 H
± 0.15		 L
REF		 J
REF		 Thread
M4420 4.4 2.7 1 1.2 4.8 3.2 2 8 2 M3.0 x 0.5
M4421 4.4 2.7 1 1.2 4.8 4.7 2 9.5 2 M3.0 x 0.5
M4422 4.4 2.7 1 1.2 4.8 6.2 2 11 2 M3.0 x 0.5
M4423 4.4 2.7 1 1.2 4.8 8.2 2 13 2 M3.0 x 0.5
M4424 4.4 2.7 1 1.2 4.8 9.7 2 14.5 2 M3.0 x 0.5
M4425 4.4 2.7 1 1.2 4.8 11.2 2 16 2 M3.0 x 0.5
M4426 4.4 2.7 1 1.2 4.8 12.7 2 17.5 2 M3.0 x 0.5
M4427 4.4 2.7 1 1.2 4.8 14.2 2 19 2 M3.0 x 0.5
M4428 4.4 2.7 1 1.2 4.8 15.7 2 20.5 2 M3.0 x 0.5
M4429 4.4 2.7 1 1.2 4.8 17.2 2 22 2 M3.0 x 0.5
M4430 4.4 2.7 1 1.2 4.8 19.2 2 24 2 M3.0 x 0.5
M4431 4.4 2.7 1 1.2 4.8 20.7 2 25.5 2 M3.0 x 0.5
M4432 5.5 3.3 1.2 1.5 5.5 2.5 2.4 8 2.4 M3.5 x 0.6
M4433 5.5 3.3 1.2 1.5 5.5 4 2.4 9.5 2.4 M3.5 x 0.6
M4434 5.5 3.3 1.2 1.5 5.5 5.5 2.4 11 2.4 M3.5 x 0.6
M4435 5.5 3.3 1.2 1.5 5.5 7.5 2.4 13 2.4 M3.5 x 0.6
M4436 5.5 3.3 1.2 1.5 5.5 9 2.4 14.5 2.4 M3.5 x 0.6
M4437 5.5 3.3 1.2 1.5 5.5 10.5 2.4 16 2.4 M3.5 x 0.6
M4438 5.5 3.3 1.2 1.5 5.5 12 2.4 17.5 2.4 M3.5 x 0.6
M4439 5.5 3.3 1.2 1.5 5.5 13.5 2.4 19 2.4 M3.5 x 0.6
M4440 5.5 3.3 1.2 1.5 5.5 15 2.4 20.5 2.4 M3.5 x 0.6
Part
Number		 A
± 0.2		 B
± 0.2		 C
± .15		 D
± .16		 E
REF		 G
± 0.3		 H
± 0.15		 L
REF		 J
REF		 Thread
M4441 5.5 3.3 1.2 1.5 5.5 16.5 2.4 22 2.4 M3.5 x 0.6
M4442 5.5 3.3 1.2 1.5 5.5 18.5 2.4 24 2.4 M3.5 x 0.6
M4443 5.5 3.3 1.2 1.5 5.5 20 2.4 25.5 2.4 M3.5 x 0.6
M4444 6.6 4 1.4 1.8 5.5 2.5 3 8 2.9 M4.0 x 0.7
M4445 6.6 4 1.4 1.8 5.5 4 3 9.5 2.9 M4.0 x 0.7
M4446 6.6 4 1.4 1.8 5.5 5.5 3 11 2.9 M4.0 x 0.7
M4447 6.6 4 1.4 1.8 5.5 7.5 3 13 2.9 M4.0 x 0.7
M4448 6.6 4 1.4 1.8 5.5 9 3 14.5 2.9 M4.0 x 0.7
M4449 6.6 4 1.4 1.8 5.5 10.5 3 16 2.9 M4.0 x 0.7
M4450 6.6 4 1.4 1.8 5.5 12 3 17.5 2.9 M4.0 x 0.7
M4451 6.6 4 1.4 1.8 5.5 13.5 3 19 2.9 M4.0 x 0.7
M4452 6.6 4 1.4 1.8 5.5 15 3 20.5 2.9 M4.0 x 0.7
M4453 6.6 4 1.4 1.8 5.5 16.5 3 22 2.9 M4.0 x 0.7
M4454 6.6 4 1.4 1.8 5.5 18.5 3 24 2.9 M4.0 x 0.7
M4455 6.6 4 1.4 1.8 5.5 20 3 25.5 2.9 M4.0 x 0.7
M4456 6.6 4 1.4 1.8 5.5 21.5 3 27 2.9 M4.0 x 0.7
M4457 6.6 4 1.4 1.8 5.5 23 3 28.5 2.9 M4.0 x 0.7
M4458 6.6 4 1.4 1.8 5.5 25 3 30.5 2.9 M4.0 x 0.7
M4459 6.6 4 1.4 1.8 5.5 26.5 3 32 2.9 M4.0 x 0.7
M4460 8 4.6 1.5 2.1 7.1 2.4 3.3 9.5 3.3 M5.0 x 0.8
Part
Number		 A
± 0.2		 B
± 0.2		 C
± .15		 D
± .16		 E
REF		 G
± 0.3		 H
± 0.15		 L
REF		 J
REF		 Thread
M4461 8 4.6 1.5 2.1 7.1 4 3.3 11 3.3 M5.0 x 0.8
M4462 8 4.6 1.5 2.1 7.1 5.9 3.3 13 3.3 M5.0 x 0.8
M4463 8 4.6 1.5 2.1 7.1 7.4 3.3 14.5 3.3 M5.0 x 0.8
M4464 8 4.6 1.5 2.1 7.1 8.9 3.3 16 3.3 M5.0 x 0.8
M4465 8 4.6 1.5 2.1 7.1 10.4 3.3 17.5 3.3 M5.0 x 0.8
M4466 8 4.6 1.5 2.1 7.1 11.9 3.3 19 3.3 M5.0 x 0.8
M4467 8 4.6 1.5 2.1 7.1 13.4 3.3 20.5 3.3 M5.0 x 0.8
M4468 8 4.6 1.5 2.1 7.1 14.9 3.3 22 3.3 M5.0 x 0.8
M4469 8 4.6 1.5 2.1 7.1 16.9 3.3 24 3.3 M5.0 x 0.8
M4470 8 4.6 1.5 2.1 7.1 18.4 3.3 25.5 3.3 M5.0 x 0.8
M4471 8 4.6 1.5 2.1 7.1 19.9 3.3 27 3.3 M5.0 x 0.8
M4472 8 4.6 1.5 2.1 7.1 21.4 3.3 28.5 3.3 M5.0 x 0.8
M4473 8 4.6 1.5 2.1 7.1 23.4 3.3 30.5 3.3 M5.0 x 0.8
M4474 8 4.6 1.5 2.1 7.1 24.9 3.3 32 3.3 M5.0 x 0.8
M4475 8 4.6 1.5 2.1 7.1 26.4 3.3 33.5 3.3 M5.0 x 0.8
M4476 8 4.6 1.5 2.1 7.1 27.9 3.3 35 3.3 M5.0 x 0.8
M4477 8 4.6 1.5 2.1 7.1 29.4 3.3 36.5 3.3 M5.0 x 0.8
M4478 8 4.6 1.5 2.1 7.1 30.9 3.3 38 3.3 M5.0 x 0.8
