Metric Retainer Washers (Nylon & Stainless Steel)

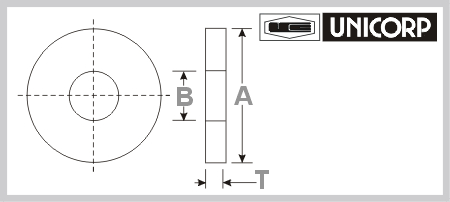

MRN- NYLON Series
Washers to be used with retainers M43R and M44R

Back To Captive Screws & Retainers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
Part number is complete, No need to build a part number
Part
Number		   Thread A  ±  0.15 B  ±  0.15 T  ±  0.15
MRN1 M3.0  x  0.5 4.3 2.6 0.38
MRN2 M3.5  x  0.6 4.3 3.2 0.5
MRN3 M4.0  x  0.7 8 3.9 0.5
MRN4 M5.0  x  0.8 8 4.3 0.5
MRN7 M6.0  x  1.0 8 5.8 0.5


Metric Retainer Washers

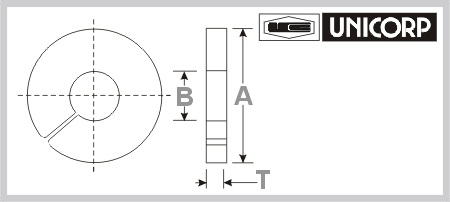

MRS- STAINLESS STEEL Series
Washers to be used with retainers M43R and M44R

Back To Captive Screws & Retainers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
Part number is complete, No need to build a part number
Part Number Thread    A  ± 0.15 B  ±  0.15 T  ±  0.15
MRS1 M3.0  x  0.5 4.5 2.35 0.26
MRS2 M3.5  x  0.6 4.5 2.75 0.26
MRS3 M4.0  x  0.7 8.4 3.7 0.32
MRS4 M5.0  x  0.8 8.4 4.2 0.32
MRS7 M6.0  x  1.0 8.4 5.2 0.32
