Metric Hex Jack Screws
 Metric Male-Female D-Type Standoffs
Metric Jack Screw Part Numbers : JAX101 thru JAX110







    JACK SCREWS

Select From These Metric Dimensions


   Build Your Part #


   Material & Shape
   Plating & Finishes     Select Size Part Numbers
   Thread Specs     4.5mm Hex Jack Screws MJAX101  thru  MJAX110
   All Technical Data     5mm Hex Jack Screws MJAX201  thru  MJAX210
   Worksheet Helper
   Thread Locking Info   DIAMETER:  4.5mm /  5mm
   Thread Locking Codes   SHAPE:  Hex
   Conversion Chart   MATERIAL:  Brass, Aluminum, Stainless Steel, Carbon Steel
   Standard Jack Screws   BODY LENGTH:  5mm
    EXTERNAL THREAD LENGTH:  Ranging from 5mm through 19mm
Thread Locking Products available.





  FINISH:  Available in 26 finishes- See Chart
  THREAD:  M3 x 0.5 / Internal Thread- Class 6H /  M3 x 0.5 External Thread- Class 6G. Thread Locking Products available.
  TOLERANCE: Body Length:  ± .15mm /  External Thread
Length  ±  .25mm
Diameter: Standard Commercial Bar Stock Tolerances

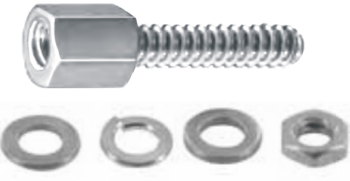

All Jackscrews are shipped unassembled with  2- M3 flat washers,  1- M3 lock washer and 1- M.3 x 0.5 nut.
     UNICORP PRODUCTS USED IN:  • Security  • Camera Systems •  Medical •  Telecommunication •  Computer •  PCB mounting •  PC/104 Modules •  Circuit Board Assembly •  Industrial Equipment •  Robotic •  Animatronic •  Electronic
•  Military •  Government •  Aerospace •  Airline •  Aircraft •  Marine •  Entertainment •  Exhibits •  Signs •  Food Supply •  Vending Machine •  Instrumentation •  Commercial •  Fabrication •  Construction •  Wire and Cable & Many Other Industries.





    Modified Parts or Engineering Assistance:
        We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department. Contact Us
        Jack Screws 4.5mm, 5mm, 3/16"- Length: 5mm, 3/16- X Thread Length:  5mm thru 19mm., 187 thru .750.  Unicorp Jackscrews D, Hex- 26 finishes, brass, aluminum, stainless steel, carbon steel.  Stock in 4.5mm, 5mm, 3/16" in various external thread lengths.








More Information on Thread Locking Products


    ND® Thread Locking Products:
        Thread locking products can be applied by Unicorp to Male-Female Standoffs, Jack Screws, Male-Male Standoffs, Captive Panel Screws, Thumb Screws and Shoulder Screws- this would also apply in some cases to Standoffs which are internally threaded.
