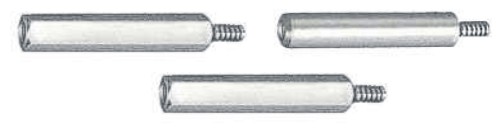

Metric Male- Female Standoffs
Technical / Engineering Data
Metric Male-Female Standoffs        Metric e-Catalog
Material / Shape Selection

  MATERIALS

 Choose & write down your material / shape code.
Go to next step

SPECIFICATIONS
ROUND SQUARE HEX

  Brass

 M01 M02 M03 QQ-B- 626 Comp. 22,
1/2 Hard

  Aluminum

 M04 M05 M06 QQ-A- 225a Comp. 2,
T-3

  Stainless Steel

 M07 M08 M09 ASTM-A-581, ASTM-A-582,
QQ-S- 763, Class 303,
Cond. A

  Carbon Steel

 M10 M11 M12 QQ-S- 633, Class 2

  Nylon

 M17 M19 MIL-P- 17091B,
Grade 101

  Delrin®

M23 M25 LP392- A


    RoHS Compliance Statement  I  R.E.A.C.H. Statement  I  DFARS  I  WEEE
Conflict-Free Minerals Statement  I  Harmonized Tariff Codes
 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Properties for Non- Metallic Materials

Properties

 Linen Based
Phenolic		 Teflon® Nylon 10% Glass
Filled Lexan®

Delrin®

Ultem®
 Flammability Rating V-1 UL HB UL 94V-2 V-O UL94HB V-O
 Water Absorption (%) 24 hrs. 0.6 - 0.7 .02 1.5 0.15 0.25 0.25
 Dielectric Constant (60 cycles) 5.2 - 5.3 2.1 10 2.9 3.7 3.15
 Dielectric Strength 1/8 thickness
 (v/mil)		 350 400 300- 400 380 500 N/A
 Arc Resistance (sec) 100 200 140 10 129 120
 Tensile Strength (psi) 6,500- 7,000 2,700- 3,100 11,200- 16,500 9,000 10,400 16,500
 Heat Resistance
 (continuous degrees F)		 250-275 550 250 270 250 340
 Compression Strength (psi) 201-235 700- 1,200 4,000 - 11,000 12,500 18,000 22,000


Plating Selection
Plating Available On These Materials:
Brass,  Aluminum, Stainless Steel & Carbon Steel
AVAILABLE PLATING

Choose & write down your
plating code.
Go to next step

PLATING AVAILABLE
ON THIS MATERIAL

APPLICABLE
SPECIFICATIONS
 Anodize (Sulphuric) Dichromate Seal,
 Yellow/Green		 F01 Aluminum Mil-A- 8625F-Type 2
 Anodize (Sulphuric) Hot Water Seal,
 Clear		 F02 Aluminum Mil-A- 8625F-Type 2,
Class 1
 Anodize (Chromic) Hot Water Seal,
 Dark Gray		 F03 Aluminum Mil-A- 8625F-Type 1
 Anodize- Black F04 Aluminum Mil-A- 8625F- Black
Type 2, Class 2
 Anodize- Black High Lustre F04A Aluminum Mil-A- 8625F- Black High Lustre- Type 2, Class 2
 Cadmium Plate, Clear Chromate F05 Brass, Carbon Steel QQ-P- 416, Class 2,
Type 2
 Cadmium Plate, Commercial F05a Brass, Carbon Steel
 Cadmium Plate, Gold Chromate F06 Brass, Carbon Steel QQ-P- 416, Class 2,
Type 2
 Cadmium Plate, Olive Drab F06a Brass, Carbon Steel QQ-P- 416, Type 2,
Class 3
 Nickel Plate F07 Brass, Carbon Steel QQ-N- 290A, Class 1,
Grade F
 Chromium Plate (Bright) F08 Brass, Carbon Steel QQ-C- 320B, Class 1,
Type 1
 Chromium Plate, Engineering F08a Brass, Carbon Steel QQ-C- 320B, Class 1,
Type 2
 Chromium Plate Over Nickel Plate F08c Brass, Carbon Steel Mil-QQ-C- 320,
Over-Mil-QQ-N- 290
 Passivate F09 Stainless Steel Mil-F- 14072E (EL) E 300
 Bright Dip F11 Aluminum, Brass
 Iridite, Clear F12 Aluminum Mil-C- 5541E
Mil-DTL- 5541F
 Iridite, Gold #14 F13 Aluminum Mil-C- 5541E
Mil-DTL- 5541F
 Alodine 1200 F13a Aluminum
 Black Oxide, Brass F14 Brass Mil-F- 495C
 Black Oxide, Stainless Steel F15 Stainless Steel Mil-C- 13924A, Class 3
 No Finish
 *even if there is no finish-
  this code must be included in part #		 F16 Brass, Aluminum,
Stainless Steel, Carbon Steel,
All Plastics
 Hot Tin Dip F17a Brass, Carbon Steel Mil- 10727, Type 2
 Silver Plate F18 Brass, Carbon Steel QQ-S- 365 0.0002-
 0.0003
 Electro Tin F19 Brass, Carbon Steel Mil- T- 10727, Type 1
 Electro Tin 60/40 Solder F19a Brass, Carbon Steel M222-Mil-F- 14072
 Zinc Plate .0002 Thick, Clear Chromate F21 Brass, Carbon Steel ASTM-B- 633, Type 1
 Zinc Plate .0002 Thick, Yellow/Green
 Chromate		 F21a Brass, Carbon Steel ASTM-B- 633, Type 2,
(Color Chromate)
 Zinc Plate .0002 Thick, Black
 Chromate		 F21b Brass, Carbon Steel ASTM-B- 633, Type 2,
(Color Chromate)
 Zinc Plate .0002 Thick, Olive Drab F21c Brass, Carbon Steel ASTM-B- 633, Type 2,
(Color Chromate)
 Alkali Caustic Etch F26 Aluminum


Thread Specifications
THREAD SIZE Choose & write down your
thread number.
Go to next step
 		A
EXTERNAL
THREAD LENGTH		 C INTERNAL
FULL THREAD DEPTH		 D
METRIC
DIAMETERS
M1.6 x 0.35 M1.6 3.97 4.7 3
M1.8 x 0.35 M1.8 3.97 4.7 3
M2 x 0.4 M2 3.97 4.8 4,  4.5,  5
M2.5 x 0.45 M2.5 3.97 4.8 4,  4.5,  5
M3 x 0.5 M3 4.76 6.4 6, 8
M3.5 x 0.6 M3.5 6.35 6.4 6, 8
M4 x 0.7 M4 9.53 11.1 6,  8, 10
M5 x 0.8 M5 9.53 12.7 6,  8, 10
M6 x 1 M6 12.7 15.0 8, 10
M8 x 1.25 M8 12.7 15.0 13
M10 x 1.5 M10 16 15.0 13


Internal Thread Depth- Blind Holes
Contact our sales department for internal thread depth when the body length
is smaller than the
standard internal thread depth
THREAD SIZE STANDARD
THREAD DEPTH		 BODY LENGTH *TAP DEPTH RANGE
M1.6 x 0.35 4.7 5- 6 3.5- 4.5
M1.8 x 0.35 4.7 5- 6 3.5- 4.5
M2 x 0.4 4.8 5- 6.5 3.5- 5
M2.5 x 0.45 4.8 5- 6.5 3.5- 5
M3 x 0.5 6.4 5- 8 3.5- 6.5
M3.5 x 0.6 6.4 5- 8 3.5- 6.5
M4 x 0.7 11.1 5- 13 3.5- 11.5
M5 x 0.8 12.7 5- 14.5 3.5- 13
M6 x 1 15 5- 16.5 3.5- 15
M8 x 1.25 15 5- 16.5 3.5- 15
M10 x 1.5 15 5- 16.5 3.5- 15


Thread Locking Products Codes
Choose & write down your
OPTIONAL thread locking code.
Go back to
   THREAD LOCKING PRODUCTS
PH   NDŽ PATCH
RP   NDŽ  360° RING-PATCH
PL   NDŽ PELL-IT
MS   NDŽ MICROSPHERES
VT   NDŽ VIBRA-TITE
ST   NDŽ STRIP-THREAD

More Info on NDŽ Thread Locking Products
If external and internal threads are different,
please specify as follows: MMF- 1507- MO6- FO2- M3 I- M4 E
I = internal thread,  E = external thread.
TOLERANCES:
B-  Length up to 100mm ±  .15mm / 101mm to 150mm ±  .20mm / 150mm and over  ±  .25mm
C-  Length will be adjusted where B dimensions will not permit full thread depth
D-  Diameter Dimension, Mill Standard
* No undercut Nylon & Delrin®

For Modified Parts or Engineering Assistance:
Unicorp offers your firm engineering and design services for
customized or modified parts at no additional charge.
Please call our Engineering Department.
