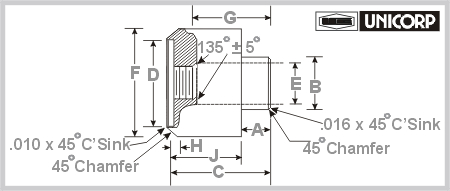

42R Retainer  for  Captive Screws
FSC- 5304- 411  Retainers listed here
mate with Series 4100 Captive Screws

 Back To Captive Screws & Retainers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 Thread Panel
Thickness		 A
± .005		 B
+ .000
- .003		 C
±
 .010		 D
+.005
- .001		 E
 + .002
- .001		 F
±
 .003		 G
 + .005
- .010		 H
±
 .005		 J
±
 .005
42R01 4- 40 .052- .067 .062 .250 .437 .192 .188 .281 .281 .062 .375
42R02 4- 40 .084- .099 .093 .250 .437 .192 .188 .281 .281 .062 .344
42R03 4- 40 .109- .140 .125 .250 .437 .192 .188 .281 .281 .062 .312
42R04 6- 32 .052- .067 .062 .250 .437 .192 .188 .281 .281 .062 .375
42R05 6- 32 .084- .099 .093 .250 .437 .192 .188 .281 .281 .062 .344
42R06 6- 32 .109- .140 .125 .250 .437 .192 .188 .281 .281 .062 .312
42R07 8- 32 .052- .067 .062 .433 .625 .312 .375 .531 .437 .093 .563
42R08 8- 32 .084- .099 .093 .433 .625 .312 .375 .531 .437 .093 .532
42R09 8- 32 .109- .140 .125 .433 .625 .312 .375 .531 .437 .093 .500
42R10 8- 32 .171- .203 .187 .433 .625 .312 .375 .531 .437 .093 .438
42R11 8- 32 .234- .265 .250 .433 .625 .312 .375 .531 .437 .093 .375
42R12 10- 24 .052- .067 .062 .433 .625 .312 .375 .531 .437 .093 .563
42R13 10- 24 .084- .099 .093 .433 .625 .312 .375 .531 .437 .093 .532
42R14 10- 24 .109- .140 .125 .433 .625 .312 .375 .531 .437 .093 .500
42R15 10- 24 .171- .203 .187 .433 .625 .312 .375 .531 .437 .093 .438
42R16 10- 24 .234- .265 .250 .433 .625 .312 .375 .531 .437 .093 .375
42R17 10- 32 .052- .067 .062 .433 .625 .312 .375 .531 .437 .093 .563
Part
Number		 Thread Panel
Thickness		 A
± .005		 B
+ .000
- .003		 C
±
 .010		 D
+.005
- .001		 E
 + .002
- .001		 F
±
 .003		 G
 + .005
- .010		 H
±
 .005		 J
±
 .005
42R18 10- 32 .084- .099 .093 .433 .625 .312 .375 .531 .437 .093 .532
42R19 10- 32 .109- .140 .125 .433 .625 .312 .375 .531 .437 .093 .500
42R20 10- 32 .171- .203 .187 .433 .625 .312 .375 .531 .437 .093 .438
42R21 10- 32 .234- .265 .250 .433 .625 .312 .375 .531 .437 .093 .375
42R22 12- 24 .052- .067 .062 .433 .625 .312 .375 .531 .437 .093 .563
42R23 12- 24 .084- .099 .093 .433 .625 .312 .375 .531 .437 .093 .532
42R24 12- 24 .109- .140 .125 .433 .625 .312 .375 .531 .437 .093 .500
42R25 12- 24 .171- .203 .187 .433 .625 .312 .375 .531 .437 .093 .438
42R26 12- 24 .234- .265 .250 .433 .625 .312 .375 .531 .437 .093 .375
42R27 1/4- 20 .052- .067 .062 .433 .625 .312 .375 .531 .437 .093 .563
42R28 1/4- 20 .084- .099 .093 .433 .625 .312 .375 .531 .437 .093 .532
42R29 1/4- 20 .109- .140 .125 .433 .625 .312 .375 .531 .437 .093 .500
42R30 1/4- 20 .171- .203 .187 .433 .625 .312 .375 .531 .437 .093 .438
42R31 1/4- 20 .234- .265 .250 .433 .625 .312 .375 .531 .437 .093 .375
42R32 1/4- 28 .052- .067 .062 .433 .625 .312 .375 .531 .437 .093 .563
42R33 1/4- 28 .084- .099 .093 .433 .625 .312 .375 .531 .437 .093 .532
42R34 1/4- 28 .109- .140 .125 .433 .625 .312 .375 .531 .437 .093 .500
42R35 1/4- 28 .171- .203 .187 .433 .625 .312 .375 .531 .437 .093 .438
42R36 1/4- 28 .234- .265 .250 .433 .625 .312 .375 .531 .437 .093 .375
