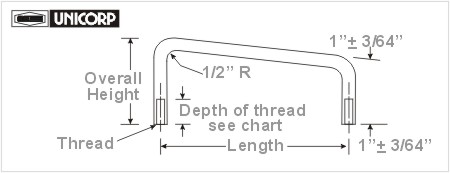

Slanted Pull Handle 3/8" - Round - Internal Thread (J - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
3/8 " Diameter 1- 1/2" Overall Height 8- 32 Threads |
3/8 " Diameter 1- 1/2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | J1642 | J1645 | J1648 | 3" | J1722 | J1725 | J1728 |
| 3- 1/2" | J1652 | J1655 | J1658 | 3- 1/2" | J1732 | J1735 | J1738 |
| 4" | J1662 | J1665 | J1668 | 4" | J1742 | J1745 | J1748 |
| 4- 9/16" | J1672 | J1675 | J1678 | 4- 9/16" | J1752 | J1755 | J1758 |
| 5" | J1682 | J1685 | J1688 | 5" | J1762 | J1765 | J1768 |
| 6" | J1692 | J1695 | J1698 | 6" | J1772 | J1775 | J1778 |
| 6- 7/16" | J1702 | J1705 | J1708 | 6- 7/16" | J1782 | J1785 | J1788 |
| 7" | J1712 | J1715 | J1718 | 7" | J1792 | J1795 | J1798 |
|
3/8 " Diameter 1- 5/8" Overall Height 8- 32 Threads |
3/8 " Diameter 1- 5/8" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | J1802 | J1805 | J1808 | 3" | J1882 | J1885 | J1888 |
| 3- 1/2" | J1812 | J1815 | J1818 | 3- 1/2" | J1892 | J1895 | J1898 |
| 4" | J1822 | J1825 | J1828 | 4" | J1902 | J1905 | J1908 |
| 4- 9/16" | J1832 | J1835 | J1838 | 4- 9/16" | J1912 | J1915 | J1918 |
| 5" | J1842 | J1845 | J1848 | 5" | J1922 | J1925 | J1928 |
| 6" | J1852 | J1855 | J1858 | 6" | J1932 | J1935 | J1938 |
| 6- 7/16" | J1862 | J1865 | J1868 | 6- 7/16" | J1942 | J1945 | J1948 |
| 7" | J1872 | J1875 | J1878 | 7" | J1952 | J1955 | J1958 |
|
3/8 " Diameter 1- 3/4" Overall Height 8- 32 Threads |
3/8 " Diameter 1- 3/4" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | J1962 | J1965 | J1968 | 3" | J2022 | J2025 | J2028 |
| 3- 1/2" | J1972 | J1975 | J1978 | 3- 1/2" | J2032 | J2035 | J2038 |
| 4- 9/16" | J1982 | J1985 | J1988 | 4- 9/16" | J2042 | J2045 | J2048 |
| 5" | J1992 | J1995 | J1998 | 5" | J2052 | J2055 | J2058 |
| 6- 7/16" | J2002 | J2005 | J2008 | 6- 7/16" | J2062 | J2065 | J2068 |
| 7" | J2012 | J2015 | J2018 | 7" | J2072 | J2075 | J2078 |
|
3/8 " Diameter 2" Overall Height 8- 32 Threads |
3/8 " Diameter 2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | J2082 | J2085 | J2088 | 3" | J2162 | J2165 | J2168 |
| 3- 1/2" | J2092 | J2095 | J2098 | 3- 1/2" | J2172 | J2175 | J2178 |
| 4" | J2102 | J2105 | J2108 | 4" | J2182 | J2185 | J2188 |
| 4- 9/16" | J2112 | J2115 | J2118 | 4- 9/16" | J2192 | J2195 | J2198 |
| 5" | J2122 | J2125 | J2128 | 5" | J2202 | J2205 | J2208 |
| 6" | J2132 | J2135 | J2138 | 6" | J2212 | J2215 | J2218 |
| 6- 7/16" | J2142 | J2145 | J2148 | 6- 7/16" | J2222 | J2225 | J2228 |
| 7" | J2152 | J2155 | J2158 | 7" | J2232 | J2235 | J2238 |
 |
 |
||||||
|
