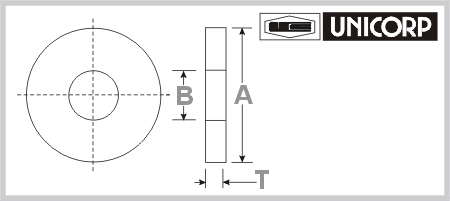

Retainer Washers  (Nylon & Stainless Steel)
RN-NYLON Series
Washers to be used with retainers 43R and 44R

 Back To Captive Screws & Retainers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
Part number is complete, No need to build a part number
Part
Number		 Thread A  ± .003 B  ± .003 T  ± .002
RN1 4- 40 .171 .100 .015
RN2 6- 32 .171 .125 .020
RN3 8- 32 .312 .152 .020
RN4 10- 24 .312 .167 .020
RN5 10- 32 .312 .173 .020
RN6 12- 24 .312 .193 .020
RN7 1/4- 20 .312 .228 .030
RN8 1/4- 28 .312 .228 .030

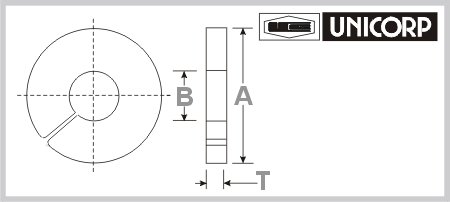

Retainer Washers
 RS- STAINLESS STEEL Series
Washers to be used with retainers 43R and 44R

*Slightly Chamfered to Permit Smooth Entry / Fit.
Part number is complete, No need to build a part number
Part
Number		 Thread A  ± .003 B  ± .003 T  ± .003
RS1 4- 40 .171 .093 .010
RS2 6- 32 .171 .112 .010
RS3 8- 32 .312 .146 .012
RS4 10- 24 .312 .166 .012
RS5 10- 32 .312 .166 .012
RS6 12- 24 .312 .190 .012
RS7 1/4- 20 .312 .204 .012
RS8 1/4- 28 .312 .214 .012
