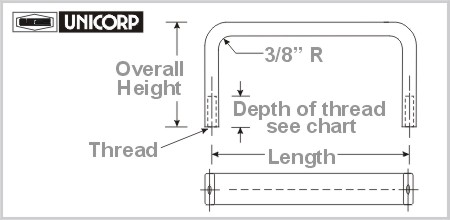

Pull Handle 1/4" x 5/8" - Rectangular - Internal Thread (E - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
||||||||
 |
||||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
||||||||
|
1/4" x 5/8" Rectangular 1" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 1" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part No. |
Length |
Brass Part No. |
Aluminum Part # |
Stainless Steel Part No. |
|
| 2" | E3102 | E3105 | E3108 | 2" | E3242 | E3245 | E3248 | |
| 2- 1/2" | E3112 | E3115 | E3118 | 2- 1/2" | E3252 | E3255 | E3258 | |
| 3" | E3122 | E3125 | E3128 | 3" | E3262 | E3265 | E3268 | |
| 3- 1/2" | E3132 | E3135 | E3138 | 3- 1/2" | E3272 | E3275 | E3278 | |
| 4" | E3142 | E3145 | E3148 | 4" | E3282 | E3285 | E3288 | |
| 4- 1/4" | E3152 | E3155 | E3158 | 4- 1/4" | E3292 | E3295 | E3298 | |
| 4- 9/16" | E3162 | E3165 | E3168 | 4- 9/16" | E3302 | E3305 | E3308 | |
| 5" | E3172 | E3175 | E3178 | 5" | E3312 | E3315 | E3318 | |
| 6" | E3182 | E3185 | E3188 | 6" | E3322 | E3325 | E3328 | |
| 7" | E3192 | E3195 | E3198 | 7" | E3332 | E3335 | E3338 | |
| 8" | E3202 | E3205 | E3208 | 8" | E3342 | E3345 | E3348 | |
| 9" | E3212 | E3215 | E3218 | 9" | E3352 | E3355 | E3358 | |
| 10" | E3222 | E3225 | E3228 | 10" | E3362 | E3365 | E3368 | |
|
1/4" x 5/8" Rectangular 1- 1/4" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 1- 1/4" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
|
| 2" | E3382 | E3385 | E3388 | 2" | E4082 | E4085 | E4088 | |
| 3" | E3392 | E3395 | E3398 | 3" | E4092 | E4095 | E4098 | |
| 4" | E4002 | E4005 | E4008 | 4" | E4102 | E4105 | E4108 | |
| 4- 1/2" | E4012 | E4015 | E4018 | 4- 1/2" | E4112 | E4115 | E4118 | |
| 5" | E4022 | E4025 | E4028 | 5" | E4122 | E4125 | E4128 | |
| 6" | E4032 | E4035 | E4038 | 6" | E4132 | E4135 | E4138 | |
| 7" | E4042 | E4045 | E4048 | 7" | E4142 | E4145 | E4148 | |
| 8" | E4052 | E4055 | E4058 | 8" | E4152 | E4155 | E4158 | |
| 9" | E4062 | E4065 | E4068 | 9" | E4162 | E4165 | E4168 | |
| 10" | E4072 | E4075 | E4078 | 10" | E4172 | E4175 | E4178 | |
|
1/4" x 5/8" Rectangular 1- 5/16" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 1- 5/16" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
|
| 2" | E4182 | E4185 | E4188 | 2" | E4312 | E4315 | E4318 | |
| 2- 1/2" | E4192 | E4195 | E4198 | 2- 1/2" | E4322 | E4325 | E4328 | |
| 3" | E4202 | E4205 | E4208 | 3" | E4332 | E4335 | E4338 | |
| 4" | E4212 | E4215 | E4218 | 4" | E4342 | E4345 | E4348 | |
| 4- 1/4" | E4222 | E4225 | E4228 | 4- 1/4" | E4352 | E4355 | E4358 | |
| 4- 1/2" | E4232 | E4235 | E4238 | 4- 1/2" | E4362 | E4365 | E4368 | |
| 4- 9/16" | E4242 | E4245 | E4248 | 4- 9/16" | E4372 | E4375 | E4378 | |
| 5" | E4252 | E4255 | E4258 | 5" | E4382 | E4385 | E4388 | |
| 6" | E4262 | E4265 | E4268 | 6" | E4392 | E4395 | E4398 | |
| 7" | E4272 | E4275 | E4278 | 7" | E4402 | E4405 | E4408 | |
| 8" | E4282 | E4285 | E4288 | 8" | E4412 | E4415 | E4418 | |
| 9" | E4292 | E4295 | E4298 | 9" | E4422 | E4425 | E4428 | |
| 10" | E4302 | E4305 | E4308 | 10" | E4432 | E4435 | E4438 | |
|
1/4" x 5/8" Rectangular 1- 1/2" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 1- 1/2" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
|
| 3" | E4442 | E4445 | E4448 | 3" | E4552 | E4555 | E4558 | |
| 4" | E4452 | E4455 | E4458 | 4" | E4562 | E4565 | E4568 | |
| 4- 1/4" | E4462 | E4465 | E4468 | 4- 1/4" | E4572 | E4575 | E4578 | |
| 4- 1/2" | E4472 | E4475 | E4478 | 4- 1/2" | E4582 | E4585 | E4588 | |
| 4- 9/16" | E4482 | E4485 | E4488 | 4- 9/16" | E4592 | E4595 | E4598 | |
| 6" | E4492 | E4495 | E4498 | 6" | E4602 | E4605 | E4608 | |
| 6- 7/16" | E4502 | E4505 | E4508 | 6- 7/16" | E4612 | E4615 | E4618 | |
| 7" | E4512 | E4515 | E4518 | 7" | E4622 | E4625 | E4628 | |
| 8" | E4522 | E4525 | E4528 | 8" | E4632 | E4635 | E4638 | |
| 9" | E4532 | E4535 | E4538 | 9" | E4642 | E4645 | E4648 | |
| 10" | E4542 | E4545 | E4548 | 10" | E4652 | E4655 | E4658 | |
|
1/4" x 5/8" Rectangular 1- 3/4" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 1- 3/4" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
|
| 4" | E4662 | E4665 | E4668 | 4" | E4772 | E4775 | E4778 | |
| 4- 1/4" | E4672 | E4675 | E4678 | 4- 1/4" | E4782 | E4785 | E4788 | |
| 4- 1/2" | E4682 | E4685 | E4688 | 4- 1/2" | E4792 | E4795 | E4798 | |
| 4- 9/16" | E4692 | E4695 | E4698 | 4- 9/16" | E4802 | E4805 | E4808 | |
| 6" | E4702 | E4705 | E4708 | 6" | E4812 | E4815 | E4818 | |
| 6- 7/16" | E4712 | E4715 | E4718 | 6- 7/16" | E4822 | E4825 | E4828 | |
| 6-1/2" | E4722 | E4725 | E4728 | 6-1/2" | E4832 | E4835 | E4838 | |
| 7" | E4732 | E4735 | E4738 | 7" | E4842 | E4845 | E4848 | |
| 8" | E4742 | E4745 | E4748 | 8" | E4852 | E4855 | E4858 | |
| 9" | E4752 | E4755 | E4758 | 9" | E4862 | E4865 | E4868 | |
| 10" | E4762 | E4765 | E4768 | 10" | E4872 | E4875 | E4878 | |
|
1/4" x 5/8" Rectangular 2" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 2" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
|
| 4" | E4882 | E4885 | E4888 | 4" | E4952 | E4955 | E4958 | |
| 4- 1/2" | E4892 | E4895 | E4898 | 4- 1/2" | E4962 | E4965 | E4968 | |
| 6" | E4902 | E4905 | E4908 | 6" | E4972 | E4975 | E4978 | |
| 7" | E4912 | E4915 | E4918 | 7" | E4982 | E4985 | E4988 | |
| 8" | E4922 | E4925 | E4928 | 8" | E4992 | E4995 | E4998 | |
| 9" | E4932 | E4935 | E4938 | 9" | E5002 | E5005 | E5008 | |
| 10" | E4942 | E4945 | E4948 | 10" | E5012 | E5015 | E5018 | |
|
1/4" x 5/8" Rectangular 2- 1/2" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 2- 1/2" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
|
| 3" | E5022 | E5025 | E5028 | 3" | E5092 | E5095 | E5098 | |
| 4- 1/2" | E5032 | E5035 | E5038 | 4- 1/2" | E5102 | E5105 | E5108 | |
| 6" | E5042 | E5045 | E5048 | 6" | E5112 | E5115 | E5118 | |
| 7" | E5052 | E5055 | E5058 | 7" | E5122 | E5125 | E5128 | |
| 8" | E5062 | E5065 | E5068 | 8" | E5132 | E5135 | E5138 | |
| 9" | E5072 | E5075 | E5078 | 9" | E5142 | E5145 | E5148 | |
| 10" | E5082 | E5085 | E5088 | 10" | E5152 | E5155 | E5158 | |
|
1/4" x 5/8" Rectangular 3" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 3" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
|
| 4" | E5162 | E5165 | E5168 | 4" | E5232 | E5235 | E5238 | |
| 4- 1/2" | E5172 | E5175 | E5178 | 4- 1/2" | E5242 | E5245 | E5248 | |
| 6" | E5182 | E5185 | E5188 | 6" | E5252 | E5255 | E5258 | |
| 7" | E5192 | E5195 | E5198 | 7" | E5262 | E5265 | E5268 | |
| 8" | E5202 | E5205 | E5208 | 8" | E5272 | E5275 | E5278 | |
| 9" | E5212 | E5215 | E5218 | 9" | E5282 | E5285 | E5288 | |
| 10" | E5222 | E5225 | E5228 | 10" | E5292 | E5295 | E5298 | |
|
1/4" x 5/8" Rectangular 4" Overall Height 6- 32 Threads |
1/4" x 5/8" Rectangular 4" Overall Height 8- 32 Threads |
|||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
|
| 4" | E5302 | E5305 | E5308 | 4" | E5372 | E5375 | E5378 | |
| 4- 1/2" | E5312 | E5315 | E5318 | 4- 1/2" | E5382 | E5385 | E5388 | |
| 6" | E5322 | E5325 | E5328 | 6" | E5392 | E5395 | E5398 | |
| 7" | E5332 | E5335 | E5338 | 7" | E5402 | E5405 | E5408 | |
| 8" | E5342 | E5345 | E5348 | 8" | E5412 | E5415 | E5418 | |
| 9" | E5352 | E5355 | E5358 | 9" | E5422 | E5425 | E5428 | |
| 10" | E5362 | E5365 | E5368 | 10" | E5432 | E5435 | E5438 | |
 |
 |
|||||||
|
