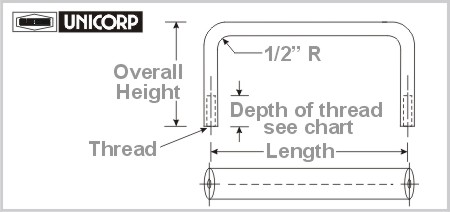

Pull Handle 3/8" x 5/8" - Oval - Internal Thread (D - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
3/8" x 5/8" Oval 1- 9/32" Overall Height 10- 24 Threads |
3/8" x 5/8" Oval 1- 9/32" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 2- 1/2" | D3862 | D3865 | D3868 | 2- 1/2" | D3972 | D3975 | D3978 |
| 3" | D3872 | D3875 | D3878 | 3" | D3982 | D3985 | D3988 |
| 4" | D3882 | D3885 | D3888 | 4" | D3992 | D3995 | D3998 |
| 4- 1/4" | D3892 | D3895 | D3898 | 4- 1/4" | D4002 | D4005 | D4008 |
| 4- 1/2" | D3902 | D3905 | D3908 | 4- 1/2" | D4012 | D4015 | D4018 |
| 4- 9/16" | D3912 | D3915 | D3918 | 4- 9/16" | D4022 | D4025 | D4028 |
| 5" | D3922 | D3925 | D3928 | 5" | D4032 | D4035 | D4038 |
| 6" | D3932 | D3935 | D3938 | 6" | D4042 | D4045 | D4048 |
| 7" | D3942 | D3945 | D3948 | 7" | D4052 | D4055 | D4058 |
| 8" | D3952 | D3955 | D3958 | 8" | D4062 | D4065 | D4068 |
| 9" | D3962 | D3965 | D3968 | 9" | D4072 | D4075 | D4078 |
|
3/8" x 5/8" Oval 1- 1/2" Overall Height 10- 24 Threads |
3/8" x 5/8" Oval 1- 1/2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 2- 1/2" | D4082 | D4085 | D4088 | 2- 1/2" | D4192 | D4195 | D4198 |
| 3" | D4092 | D4095 | D4098 | 3" | D4202 | D4205 | D4208 |
| 4" | D4102 | D4105 | D4108 | 4" | D4212 | D4215 | D4218 |
| 4- 1/4" | D4112 | D4115 | D4118 | 4- 1/4" | D4222 | D4225 | D4228 |
| 4- 1/2" | D4122 | D4125 | D4128 | 4- 1/2" | D4232 | D4235 | D4238 |
| 4- 9/16" | D4132 | D4135 | D4138 | 4- 9/16" | D4242 | D4245 | D4248 |
| 5" | D4142 | D4145 | D4148 | 5" | D4252 | D4255 | D4258 |
| 6" | D4152 | D4155 | D4158 | 6" | D4262 | D4265 | D4268 |
| 7" | D4162 | D4165 | D4168 | 7" | D4272 | D4275 | D4278 |
| 8" | D4172 | D4175 | D4178 | 8" | D4282 | D4285 | D4288 |
| 9" | D4182 | D4185 | D4188 | 9" | D4292 | D4295 | D4298 |
|
3/8" x 5/8" Oval 1- 3/4" Overall Height 10- 24 Threads |
3/8" x 5/8" Oval 1- 3/4" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | D4302 | D4305 | D4308 | 3" | D4442 | D4445 | D4448 |
| 4" | D4312 | D4315 | D4318 | 4" | D4452 | D4455 | D4458 |
| 4- 1/4" | D4322 | D4325 | D4328 | 4- 1/4" | D4462 | D4465 | D4468 |
| 4- 1/2" | D4332 | D4335 | D4338 | 4- 1/2" | D4472 | D4475 | D4478 |
| 4- 9/16" | D4342 | D4345 | D4348 | 4- 9/16" | D4482 | D4485 | D4488 |
| 5" | D4352 | D4355 | D4358 | 5" | D4492 | D4495 | D4498 |
| 5- 1/2" | D4362 | D4365 | D4368 | 5- 1/2" | D4502 | D4505 | D4508 |
| 6" | D4372 | D4375 | D4378 | 6" | D4512 | D4515 | D4518 |
| 6- 7/16" | D4382 | D4385 | D4388 | 6- 7/16" | D4522 | D4525 | D4528 |
| 7" | D4392 | D4395 | D4398 | 7" | D4532 | D4535 | D4538 |
| 8" | D4402 | D4405 | D4408 | 8" | D4542 | D4545 | D4548 |
| 9" | D4412 | D4415 | D4418 | 9" | D4552 | D4555 | D4558 |
| 10" | D4422 | D4425 | D4428 | 10" | D4562 | D4565 | D4568 |
| 12" | D4432 | D4435 | D4438 | 12" | D4572 | D4575 | D4578 |
|
3/8" x 5/8" Oval 2" Overall Height 10- 24 Threads |
3/8" x 5/8" Oval 2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 4" | D4582 | D4585 | D4588 | 4" | D4682 | D4685 | D4688 |
| 4- 1/2" | D4592 | D4595 | D4598 | 4- 1/2" | D4692 | D4695 | D4698 |
| 4- 9/16" | D4602 | D4605 | D4608 | 4- 9/16" | D4702 | D4705 | D4708 |
| 5" | D4612 | D4615 | D4618 | 5" | D4712 | D4715 | D4718 |
| 6" | D4622 | D4625 | D4628 | 6" | D4722 | D4725 | D4728 |
| 7" | D4632 | D4635 | D4638 | 7" | D4732 | D4735 | D4738 |
| 8" | D4642 | D4645 | D4648 | 8" | D4742 | D4745 | D4748 |
| 9" | D4652 | D4655 | D4658 | 9" | D4752 | D4755 | D4758 |
| 10" | D4662 | D4665 | D4668 | 10" | D4762 | D4765 | D4768 |
| 12" | D4672 | D4675 | D4678 | 12" | D4772 | D4775 | D4778 |
|
3/8" x 5/8" Oval 2- 1/8" Overall Height 10- 24 Threads |
3/8" x 5/8" Oval 2- 1/8" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 2- 1/2" | D4782 | D4785 | D4788 | 2- 1/2" | D4932 | D4935 | D4938 |
| 3" | D4792 | D4795 | D4798 | 3" | D4942 | D4945 | D4948 |
| 4" | D4802 | D4805 | D4808 | 4" | D4952 | D4955 | D4958 |
| 4- 1/2" | D4812 | D4815 | D4818 | 4- 1/2" | D4962 | D4965 | D4968 |
| 5" | D4822 | D4825 | D4828 | 5" | D4972 | D4975 | D4978 |
| 5- 1/2" | D4832 | D4835 | D4838 | 5- 1/2" | D4982 | D4985 | D4988 |
| 6" | D4842 | D4845 | D4848 | 6" | D4992 | D4995 | D4998 |
| 6-1/2" | D4852 | D4855 | D4858 | 6-1/2" | D5002 | D5005 | D5008 |
| 7" | D4862 | D4865 | D4868 | 7" | D5012 | D5015 | D5018 |
| 7-1/2" | D4872 | D4875 | D4878 | 7-1/2" | D5022 | D5025 | D5028 |
| 8" | D4882 | D4885 | D4888 | 8" | D5032 | D5035 | D5038 |
| 8-1/2" | D4892 | D4895 | D4898 | 8-1/2" | D5042 | D5045 | D5048 |
| 9" | D4902 | D4905 | D4908 | 9" | D5052 | D5055 | D5058 |
| 9-1/2" | D4912 | D4915 | D4918 | 9-1/2" | D5062 | D5065 | D5068 |
| 10" | D4922 | D4925 | D4928 | 10" | D5072 | D5075 | D5078 |
|
3/8" x 5/8" Oval 2- 1/2" Overall Height 10- 24 Threads |
3/8" x 5/8" Oval 2- 1/2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 4" | D5082 | D5085 | D5088 | 4" | D5182 | D5185 | D5188 |
| 4- 1/2" | D5092 | D5095 | D5098 | 4- 1/2" | D5472 | D5475 | D5478 |
| 4- 9/16" | D5102 | D5105 | D5108 | 4- 9/16" | D5192 | D5195 | D5198 |
| 5" | D5112 | D5115 | D5118 | 5" | D5202 | D5205 | D5208 |
| 6" | D5122 | D5125 | D5128 | 6" | D5212 | D5215 | D5218 |
| 7" | D5132 | D5135 | D5138 | 7" | D5222 | D5225 | D5228 |
| 8" | D5142 | D5145 | D5148 | 8" | D5232 | D5235 | D5238 |
| 9" | D5152 | D5155 | D5158 | 9" | D5242 | D5245 | D5248 |
| 10" | D5162 | D5165 | D5168 | 10" | D5252 | D5255 | D5258 |
| 12" | D5172 | D5175 | D5178 | 12" | D5262 | D5265 | D5268 |
|
3/8" x 5/8" Oval 3" Overall Height 10- 24 Threads |
3/8" x 5/8" Oval 3" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 4" | D5272 | D5275 | D5278 | 4" | D5372 | D5375 | D5378 |
| 4- 1/2" | D5282 | D5285 | D5288 | 4- 1/2" | D5382 | D5385 | D5388 |
| 4- 9/16" | D5292 | D5295 | D5298 | 4- 9/16" | D5392 | D5395 | D5398 |
| 5" | D5302 | D5305 | D5308 | 5" | D5402 | D5405 | D5408 |
| 6" | D5312 | D5315 | D5318 | 6" | D5412 | D5415 | D5418 |
| 7" | D5322 | D5325 | D5328 | 7" | D5422 | D5425 | D5428 |
| 8" | D5332 | D5335 | D5338 | 8" | D5432 | D5435 | D5438 |
| 9" | D5342 | D5345 | D5348 | 9" | D5442 | D5445 | D5448 |
| 10" | D5352 | D5355 | D5358 | 10" | D5452 | D5455 | D5458 |
| 12" | D5362 | D5365 | D5368 | 12" | D5462 | D5465 | D5468 |
 |
 |
||||||
|
