Metric 4.5mm Male-Female Standoffs (Threaded)

 Back To Male-Female Standoffs Page

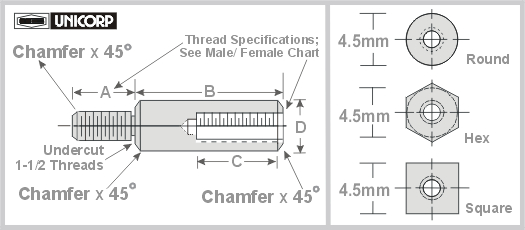

*External Thread has a 45 °Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 Length
B		 Part
Number		 Length
B		 Part
Number		 Length
B		 Part
Number		 Length
B		 Part
Number		 Length
B
 MMF1301 5 MMF1340 24.5 MMF1379 44 MMF1418 63.5 MMF1457 83
 MMF1302 5.5 MMF1341 25 MMF1380 44.5 MMF1419 64 MMF1458 83.5
 MMF1303 6 MMF1342 25.5 MMF1381 45 MMF1420 64.5 MMF1459 84
 MMF1304 6.5 MMF1343 26 MMF1382 45.5 MMF1421 65 MMF1460 84.5
 MMF1305 7 MMF1344 26.5 MMF1383 46 MMF1422 65.5 MMF1461 85
 MMF1306 7.5 MMF1345 27 MMF1384 46.5 MMF1423 66 MMF1462 85.5
 MMF1307 8 MMF1346 27.5 MMF1385 47 MMF1424 66.5 MMF1463 86
 MMF1308 8.5 MMF1347 28 MMF1386 47.5 MMF1425 67 MMF1464 86.5
 MMF1309 9 MMF1348 28.5 MMF1387 48 MMF1426 67.5 MMF1465 87
 MMF1310 9.5 MMF1349 29 MMF1388 48.5 MMF1427 68 MMF1466 87.5
 MMF1311 10 MMF1350 29.5 MMF1389 49 MMF1428 68.5 MMF1467 88
 MMF1312 10.5 MMF1351 30 MMF1390 49.5 MMF1429 69 MMF1468 88.5
 MMF1313 11 MMF1352 30.5 MMF1391 50 MMF1430 69.5 MMF1469 89
 MMF1314 11.5 MMF1353 31 MMF1392 50.5 MMF1431 70 MMF1470 89.5
 MMF1315 12 MMF1354 31.5 MMF1393 51 MMF1432 70.5 MMF1471 90
 MMF1316 12.5 MMF1355 32 MMF1394 51.5 MMF1433 71 MMF1472 90.5
 MMF1317 13 MMF1356 32.5 MMF1395 52 MMF1434 71.5 MMF1473 91
 MMF1318 13.5 MMF1357 33 MMF1396 52.5 MMF1435 72 MMF1474 91.5
 MMF1319 14 MMF1358 33.5 MMF1397 53 MMF1436 72.5 MMF1475 92
 MMF1320 14.5 MMF1359 34 MMF1398 53.5 MMF1437 73 MMF1476 92.5
 MMF1321 15 MMF1360 34.5 MMF1399 54 MMF1438 73.5 MMF1477 93
 MMF1322 15.5 MMF1361 35 MMF1400 54.5 MMF1439 74 MMF1478 93.5
 MMF1323 16 MMF1362 35.5 MMF1401 55 MMF1440 74.5 MMF1479 94
 MMF1324 16.5 MMF1363 36 MMF1402 55.5 MMF1441 75 MMF1480 94.5
 MMF1325 17 MMF1364 36.5 MMF1403 56 MMF1442 75.5 MMF1481 95
 MMF1326 17.5 MMF1365 37 MMF1404 56.5 MMF1443 76 MMF1482 95.5
 MMF1327 18 MMF1366 37.5 MMF1405 57 MMF1444 76.5 MMF1483 96
 MMF1328 18.5 MMF1367 38 MMF1406 57.5 MMF1445 77 MMF1484 96.5
 MMF1329 19 MMF1368 38.5 MMF1407 58 MMF1446 77.5 MMF1485 97
 MMF1330 19.5 MMF1369 39 MMF1408 58.5 MMF1447 78 MMF1486 97.5
 MMF1331 20 MMF1370 39.5 MMF1409 59 MMF1448 78.5 MMF1487 98
 MMF1332 20.5 MMF1371 40 MMF1410 59.5 MMF1449 79 MMF1488 98.5
 MMF1333 21 MMF1372 40.5 MMF1411 60 MMF1450 79.5 MMF1489 99
 MMF1334 21.5 MMF1373 41 MMF1412 60.5 MMF1451 80 MMF1490 99.5
 MMF1335 22 MMF1374 41.5 MMF1413 61 MMF1452 80.5 MMF1491 100
 MMF1336 22.5 MMF1375 42 MMF1414 61.5 MMF1453 81 MMF1492 101
 MMF1337 23 MMF1376 42.5 MMF1415 62 MMF1454 81.5 MMF1493 102
 MMF1338 23.5 MMF1377 43 MMF1416 62.5 MMF1455 82 X X
 MMF1339 24 MMF1378 43.5 MMF1417 63 MMF1456 82.5 X X

TOLERANCES:
B-  Length up to 100mm  ±  .15mm
100mm  to 150mm  ±  .20mm
150mm  and over  ±  .25mm
C-  Length will be adjusted where B dimensions
will not permit full thread depth
D-  Diameter Dimension, Mill Standard
*No undercut Nylon & Delrin®
