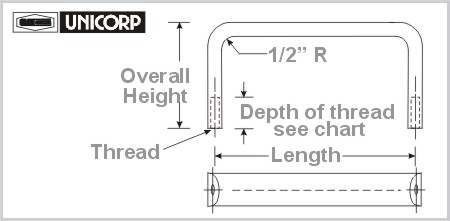

Pull Handle 5/16" x 5/8" - Half Round - Internal Thread (F - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
5/16" x 5/8" Half Round 1- 9/32" Overall Height 10- 24 Threads |
5/16" x 5/8" Half Round 1- 9/32" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part No. |
Length |
Brass Part No. |
Aluminum Part # |
Stainless Steel Part No. |
| 3" | F1012 | F1015 | F1018 | 3" | F1102 | F1105 | F1108 |
| 4" | F1022 | F1025 | F1028 | 4" | F1112 | F1115 | F1118 |
| 4- 9/16" | F1032 | F1035 | F1038 | 4- 9/16" | F1122 | F1125 | F1128 |
| 5" | F1042 | F1045 | F1048 | 5" | F1132 | F1135 | F1138 |
| 6" | F1052 | F1055 | F1058 | 6" | F1142 | F1145 | F1148 |
| 6- 7/16" | F1062 | F1065 | F1068 | 6- 7/16" | F1152 | F1155 | F1158 |
| 7" | F1072 | F1075 | F1078 | 7" | F1162 | F1165 | F1168 |
| 8" | F1082 | F1085 | F1088 | 8" | F1172 | F1175 | F1178 |
| 9" | F1092 | F1095 | F1098 | 9" | F1182 | F1185 | F1188 |
|
5/16" x 5/8" Half Round 1- 1/2" Overall Height 10- 24 Threads |
5/16" x 5/8" Half Round 1- 1/2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part No. |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part No. |
| 3" | F1192 | F1195 | F1198 | 3" | F1282 | F1285 | F1288 |
| 4" | F1202 | F1205 | F1208 | 4" | F1292 | F1295 | F1298 |
| 4- 9/16" | F1212 | F1215 | F1218 | 4- 9/16" | F1302 | F1305 | F1308 |
| 5" | F1222 | F1225 | F1228 | 5" | F1312 | F1315 | F1318 |
| 6" | F1232 | F1235 | F1238 | 6" | F1322 | F1325 | F1328 |
| 6- 7/16" | F1242 | F1245 | F1248 | 6- 7/16" | F1332 | F1335 | F1338 |
| 7" | F1252 | F1255 | F1258 | 7" | F1342 | F1345 | F1348 |
| 8" | F1262 | F1265 | F1268 | 8" | F1352 | F1355 | F1358 |
| 9" | F1272 | F1275 | F1278 | 9" | F1362 | F1365 | F1368 |
|
5/16" x 5/8" Half Round 1- 3/4" Overall Height 10- 24 Threads |
5/16" x 5/8" Half Round 1- 3/4" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part No. |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part No. |
| 3" | F1372 | F1375 | F1378 | 3" | F1462 | F1465 | F1468 |
| 4" | F1382 | F1385 | F1388 | 4" | F1472 | F1475 | F1478 |
| 4- 9/16" | F1392 | F1395 | F1398 | 4- 9/16" | F1482 | F1485 | F1488 |
| 5" | F1402 | F1405 | F1408 | 5" | F1492 | F1495 | F1498 |
| 6" | F1412 | F1415 | F1418 | 6" | F1502 | F1505 | F1508 |
| 6- 7/16" | F1422 | F1425 | F1428 | 6- 7/16" | F1512 | F1515 | F1518 |
| 7" | F1432 | F1435 | F1438 | 7" | F1522 | F1525 | F1528 |
| 8" | F1442 | F1445 | F1448 | 8" | F1532 | F1535 | F1538 |
| 9" | F1452 | F1455 | F1458 | 9" | F1542 | F1545 | F1548 |
|
5/16" x 5/8" Half Round 2" Overall Height 10- 24 Threads |
5/16" x 5/8" Half Round 2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part No. |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part No. |
| 3" | F1552 | F1555 | F1558 | 3" | F1642 | F1645 | F1648 |
| 4" | F1562 | F1565 | F1568 | 4" | F1652 | F1655 | F1658 |
| 4- 9/16" | F1572 | F1575 | F1578 | 4- 9/16" | F1662 | F1665 | F1668 |
| 5" | F1582 | F1585 | F1588 | 5" | F1672 | F1675 | F1678 |
| 6" | F1592 | F1595 | F1598 | 6" | F1682 | F1685 | F1688 |
| 6- 7/16" | F1602 | F1605 | F1608 | 6- 7/16" | F1692 | F1695 | F1698 |
| 7" | F1612 | F1615 | F1618 | 7" | F1702 | F1705 | F1708 |
| 8" | F1622 | F1625 | F1628 | 8" | F1712 | F1715 | F1718 |
| 9" | F1632 | F1635 | F1638 | 9" | F1722 | F1725 | F1728 |
 |
 |
||||||
|
