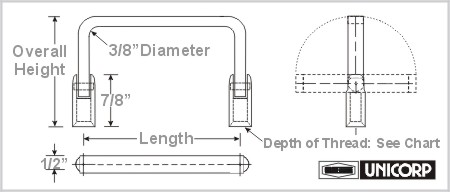

Folding Handle 1/2" x 3/16" - Rectangular - 180° All Position - Internal Thread (W - Series)  Back To Handles Page *External Thread has a 45 °Angle on External Thread. Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
1/2" x 3/16" Rectangular 1- 1/2" Overall Height 8- 32 Threads |
1/2" x 3/16" Rectangular 1- 1/2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | W1012 | W1015 | W1018 | 3" | W1132 | W1135 | W1138 |
| 3- 3/4" | W1022 | W1025 | W1028 | 3- 3/4" | W1142 | W1145 | W1148 |
| 4" | W1032 | W1035 | W1038 | 4" | W1152 | W1155 | W1158 |
| 4- 1/4" | W1042 | W1045 | W1048 | 4- 1/4" | W1162 | W1165 | W1168 |
| 4- 1/2" | W1052 | W1055 | W1058 | 4- 1/2" | W1172 | W1175 | W1178 |
| 5" | W1062 | W1065 | W1068 | 5" | W1182 | W1185 | W1188 |
| 5- 1/2" | W1072 | W1075 | W1078 | 5- 1/2" | W1192 | W1195 | W1198 |
| 6" | W1082 | W1085 | W1088 | 6" | W1202 | W1205 | W1208 |
| 7" | W1092 | W1095 | W1098 | 7" | W1212 | W1215 | W1218 |
| 8" | W1102 | W1105 | W1108 | 8" | W1222 | W1225 | W1228 |
| 9" | W1112 | W1115 | W1118 | 9" | W1232 | W1235 | W1238 |
| 10" | W1122 | W1125 | W1128 | 10" | W1242 | W1245 | W1248 |
|
1/2" x 3/16" Rectangular 2" Overall Height 8- 32 Threads |
1/2" x 3/16" Rectangular 2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | W1252 | W1255 | W1258 | 3" | W1372 | W1375 | W1378 |
| 3- 3/4" | W1262 | W1265 | W1268 | 3- 3/4" | W1382 | W1385 | W1388 |
| 4" | W1272 | W1275 | W1278 | 4" | W1392 | W1395 | W1398 |
| 4- 1/4" | W1282 | W1285 | W1288 | 4- 1/4" | W1402 | W1405 | W1408 |
| 4- 1/2" | W1292 | W1295 | W1298 | 4- 1/2" | W1412 | W1415 | W1418 |
| 5" | W1302 | W1305 | W1308 | 5" | W1422 | W1425 | W1428 |
| 5- 1/2" | W1312 | W1315 | W1318 | 5- 1/2" | W1432 | W1435 | W1438 |
| 6" | W1322 | W1325 | W1328 | 6" | W1442 | W1445 | W1448 |
| 7" | W1332 | W1335 | W1338 | 7" | W1452 | W1455 | W1458 |
| 8" | W1342 | W1345 | W1348 | 8" | W1462 | W1465 | W1468 |
| 9" | W1352 | W1355 | W1358 | 9" | W1472 | W1475 | W1478 |
| 10" | W1362 | W1365 | W1368 | 10" | W1482 | W1485 | W1488 |
|
1/2" x 3/16" Rectangular 2- 1/16" Overall Height 8- 32 Threads |
1/2" x 3/16" Rectangular 2- 1/16" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | W1492 | W1495 | W1498 | 3" | W1612 | W1615 | W1618 |
| 3- 3/4" | W1502 | W1505 | W1508 | 3- 3/4" | W1622 | W1625 | W1628 |
| 4" | W1512 | W1515 | W1518 | 4" | W1632 | W1635 | W1638 |
| 4- 1/4" | W1522 | W1525 | W1528 | 4- 1/4" | W1642 | W1645 | W1648 |
| 4- 1/2" | W1532 | W1535 | W1538 | 4- 1/2" | W1652 | W1655 | W1658 |
| 5" | W1542 | W1545 | W1548 | 5" | W1662 | W1665 | W1668 |
| 5- 1/2" | W1552 | W1555 | W1558 | 5- 1/2" | W1672 | W1675 | W1678 |
| 6" | W1562 | W1565 | W1568 | 6" | W1682 | W1685 | W1688 |
| 7" | W1572 | W1575 | W1578 | 7" | W1692 | W1695 | W1698 |
| 8" | W1582 | W1585 | W1588 | 8" | W1702 | W1705 | W1708 |
| 9" | W1592 | W1595 | W1598 | 9" | W1712 | W1715 | W1718 |
| 10" | W1602 | W1605 | W1608 | 10" | W1722 | W1725 | W1728 |
|
1/2" x 3/16" Rectangular 2- 1/2" Overall Height 8- 32 Threads |
1/2" x 3/16" Rectangular 2- 1/2" Overall Height 10- 32 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 3" | W1732 | W1735 | W1738 | 3" | W1852 | W1855 | W1858 |
| 3- 3/4" | W1742 | W1745 | W1748 | 3- 3/4" | W1862 | W1865 | W1868 |
| 4" | W1752 | W1755 | W1758 | 4" | W1872 | W1875 | W1878 |
| 4- 1/4" | W1762 | W1765 | W1768 | 4- 1/4" | W1882 | W1885 | W1888 |
| 4- 1/2" | W1772 | W1775 | W1778 | 4- 1/2" | W1892 | W1895 | W1898 |
| 5" | W1782 | W1785 | W1788 | 5" | W1902 | W1905 | W1908 |
| 5- 1/2" | W1792 | W1795 | W1798 | 5- 1/2" | W1912 | W1915 | W1918 |
| 6" | W1802 | W1805 | W1808 | 6" | W1922 | W1925 | W1928 |
| 7" | W1812 | W1815 | W1818 | 7" | W1932 | W1935 | W1938 |
| 8" | W1822 | W1825 | W1828 | 8" | W1942 | W1945 | W1948 |
| 9" | W1832 | W1835 | W1838 | 9" | W1952 | W1955 | W1958 |
| 10" | W1842 | W1845 | W1848 | 10" | W1962 | W1965 | W1968 |
 |
 |
||||||
|
