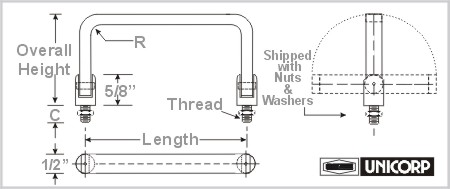

Folding Handle 1/2" x 3/16" - Rectangular - 180° All Position - External Thread (V - Series) (Shipped with Nuts and Washers)  Back To Handles Page *External Thread has a 45 °Angle on External Thread. Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||
 |
|||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||
|
1/2" x 3/16" Rectangular 1- 1/2" Overall Height 3/8- 24 Threads |
1/2" x 3/16" Rectangular 1- 13/16" Overall Height 3/8- 24 Threads |
||||
| Length |
Brass Part # |
Aluminum Part # |
Length |
Brass Part # |
Aluminum Part # |
| 3" | V1012 | V1015 | 3" | V1492 | V1495 |
| 3-1/4" | V1022 | V1025 | 3-1/4" | V1502 | V1505 |
| 4" | V1032 | V1035 | 4" | V1512 | V1515 |
| 4- 1/4" | V1042 | V1045 | 4- 1/4" | V1522 | V1525 |
| 4- 1/2" | V1052 | V1055 | 4- 1/2" | V1532 | V1535 |
| 5" | V1062 | V1065 | 5" | V1542 | V1545 |
| 5- 1/2" | V1072 | V1075 | 5- 1/2" | V1552 | V1555 |
| 6" | V1082 | V1085 | 6" | V1562 | V1565 |
| 7" | V1092 | V1095 | 7" | V1572 | V1575 |
| 8" | V1102 | V1105 | 8" | V1582 | V1585 |
| 9" | V1112 | V1115 | 9" | V1592 | V1595 |
| 10" | V1122 | V1125 | 10" | V1602 | V1605 |
|
1/2" x 3/16" Rectangular 2" Overall Height 3/8- 24 Threads |
1/2" x 3/16" Rectangular 2- 1/2" Overall Height 3/8- 24 Threads |
||||
| Length |
Brass Part # |
Aluminum Part # |
Length |
Brass Part # |
Aluminum Part # |
| 3" | V1972 | V1975 | 3" | V2442 | V2445 |
| 3-1/4" | V1982 | V1985 | 3-1/4" | V2452 | V2455 |
| 4" | V1992 | V1995 | 4" | V2462 | V2465 |
| 4- 1/4" | V2002 | V2005 | 4- 1/4" | V2472 | V2475 |
| 4- 1/2" | V2012 | V2015 | 4- 1/2" | V2482 | V2485 |
| 5" | V2022 | V2025 | 5" | V2492 | V2495 |
| 5- 1/2" | V2032 | V2035 | 5- 1/2" | V2502 | V2505 |
| 6" | V2042 | V2045 | 6" | V2512 | V2515 |
| 7" | V2052 | V2055 | 7" | V2522 | V2525 |
| 8" | V2062 | V2065 | 8" | V2532 | V2535 |
| 9" | V2072 | V2075 | 9" | V2542 | V2545 |
| 10" | V2082 | V2085 | 10" | V2552 | V2555 |
| LENGTH OF THREAD | |||||
| Panel Thickness | C | Code | |||
|
1/16" 3/32" 1/8" - 3/16" 1/4" |
9/32" 5/16" 7/16" 1/2" |
A B C D |
|||
|
To order the correct length of thread to match your panel, use the letter designating thread length after the part number. Example: V1105-B |
|||||
 |
 |
||||
|
