4500 Captive Panel Screws

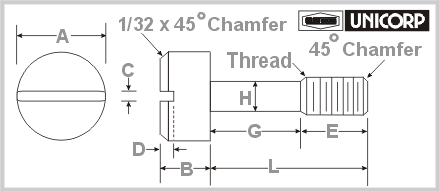

Externally Relieved Body  FSC-5305-120
Back To Captive Screws & Retainers Page
*External Thread has a 45 °Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 A
Ref.		 B
±
 .010		 C
Ref.		 D
Ref.		 E
Ref.		 G
±
 .010		 H
±
 .005		 L
Ref.		 Thread
4501 .250 .125 .046 .046 .187 .281 .078 .468 4- 40
4502 .250 .125 .046 .046 .187 .343 .078 .531 4- 40
4503 .281 .125 .046 .046 .218 .313 .095 .531 6- 32
4504 .281 .125 .046 .046 .218 .375 .095 .593 6- 32
4505 .281 .125 .046 .046 .218 .437 .095 .656 6- 32
4506 .313 .156 .062 .062 .250 .406 .120 .656 8- 32
4507 .313 .156 .062 .062 .250 .468 .120 .718 8- 32
4508 .313 .156 .062 .062 .250 .531 .120 .781 8- 32
4509 .375 .187 .062 .062 .313 .531 .130 .843 10- 32
4510 .375 .187 .062 .062 .313 .593 .130 .906 10- 32
