43R Retainer  for  Captive Screws
FSC- 5304- 411  Retainers listed here
mate with Series 4100 Captive Screws

Back To Captive Screws & Retainers Page

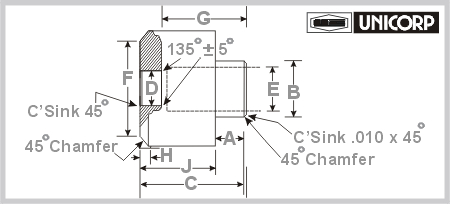

*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 Thread Panel
Thickness		 A
±.005		 B
+ .000
 - .003		 C
±
 .010		 D
+.004
 -.000		 E
+.002
 -.001		 F
±
 .003		 G
+ .005
 - .010		 H
REF		 J
±
  .005
43R01 4- 40 .052- .067 .062 .250 .375 .125 .188 .281 .313 .026 .313
43R02 4- 40 .084- .099 .093 .250 .375 .125 .188 .281 .313 .026 .282
43R03 4- 40 .109- .140 .125 .250 .375 .125 .188 .281 .313 .026 .250
43R04 6- 32 .052- .067 .062 .250 .375 .152 .188 .281 .313 .026 .313
43R05 6- 32 .084- .099 .093 .250 .375 .152 .188 .281 .313 .026 .282
43R06 6- 32 .109- .140 .125 .250 .375 .152 .188 .281 .313 .026 .250
43R07 8- 32 .052- .067 .062 .433 .562 .177 .375 .531 .500 .026 .500
43R08 8- 32 .084- .099 .093 .433 .562 .177 .375 .531 .500 .026 .469
43R09 8- 32 .109- .140 .125 .433 .562 .177 .375 .531 .500 .026 .437
43R10 8- 32 .171- .203 .187 .433 .562 .177 .375 .531 .500 .026 .375
43R11 8- 32 .234- .265 .250 .433 .562 .177 .375 .531 .500 .026 .312
43R12 10- 24 .052- .067 .062 .433 .562 .203 .375 .531 .500 .032 .500
43R13 10- 24 .084- .099 .093 .433 .562 .203 .375 .531 .500 .032 .469
43R14 10- 24 .109- .140 .125 .433 .562 .203 .375 .531 .500 .032 .437
43R15 10- 24 .171- .203 .187 .433 .562 .203 .375 .531 .500 .032 .375
43R16 10- 24 .234- .265 .250 .433 .562 .203 .375 .531 .500 .032 .312
43R17 10- 32 .052- .067 .062 .433 .562 .203 .375 .531 .500 .032 .500
Part
Number		 Thread Panel
Thickness		 A
±.005		 B
+ .000
 - .003		 C
±
 .010		 D
+.004
 -.000		 E
+.002
 -.001		 F
±
 .003		 G
+ .005
 - .010		 H
REF		 J
±
  .005
43R18 10- 32 .084- .099 .093 .433 .562 .203 .375 .531 .500 .032 .469
43R19 10- 32 .109- .140 .125 .433 .562 .203 .375 .531 .500 .032 .437
43R20 10- 32 .171- .203 .187 .433 .562 .203 .375 .531 .500 .032 .375
43R21 10- 32 .234- .265 .250 .433 .562 .203 .375 .531 .500 .032 .312
43R22 12- 24 .052- .067 .062 .433 .562 .228 .375 .531 .500 .032 .500
43R23 12- 24 .084- .099 .093 .433 .562 .228 .375 .531 .500 .032 .469
43R24 12- 24 .109- .140 .125 .433 .562 .228 .375 .531 .500 .032 .437
43R25 12- 24 .171- .203 .187 .433 .562 .228 .375 .531 .500 .032 .375
43R26 12- 24 .234- .265 .250 .433 .562 .228 .375 .531 .500 .032 .312
43R27 1/4- 20 .052- .067 .062 .433 .562 .257 .375 .531 .500 .040 .500
43R28 1/4- 20 .084- .099 .093 .433 .562 .257 .375 .531 .500 .040 .469
43R29 1/4- 20 .109- .140 .125 .433 .562 .257 .375 .531 .500 .040 .437
43R30 1/4- 20 .171- .203 .187 .433 .562 .257 .375 .531 .500 .040 .375
43R31 1/4- 20 .234- .265 .250 .433 .562 .257 .375 .531 .500 .040 .312
43R32 1/4- 28 .052- .067 .062 .433 .562 .257 .375 .531 .500 .040 .500
43R33 1/4- 28 .084- .099 .093 .433 .562 .257 .375 .531 .500 .040 .469
43R34 1/4- 28 .109- .140 .125 .433 .562 .257 .375 .531 .500 .040 .437
43R35 1/4- 28 .171- .203 .187 .433 .562 .257 .375 .531 .500 .040 .375
43R36 1/4- 28 .234- .265 .250 .433 .562 .257 .375 .531 .500 .040 .312
