Hex Jack Screws
Male-Female Standoffs
For Mounting D-Type Subminiature Connectors
Part Numbers: (JAX101 thru JAX110)
Select From These American Standard Dimensions (inches)
      Build Your Part #
      Material & Shape Select Size
      Plating & Finishes
      Thread Specs 3/16" Hex Jack Screws
      All Technical Data Part Numbers:  JAX101 - JAX110
      Worksheet Helper
      Thread Locking Info
      Thread Locking Codes
DIAMETER:  3/16"
SHAPE:  Hex
MATERIAL:  Brass, Aluminum, Stainless Steel, Carbon Steel
BODY LENGTH:  3/16" (.187)
EXTERNAL THREAD LENGTH:  Ranging from .187 through .750 Thread Locking Products available
FINISH:  Available in 26 finishes- See Chart
THREAD:  4-40 Internal Thread- Class UNC 2B / 4-40 External Thread- Class UNC 2A - Thread Locking Products available

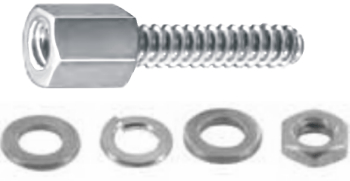

TOLERANCE:  Body Length:  ± .005 / External Thread Length ± .015 Diameter:  Standard commercial bar stock tolerances. All Jackscrews are shipped unassembled with 2- #4 flat washers, 1- #4 lock washer and 1- 4-40 nut
      Conversion Chart
      Metric Jack Screws


Jack Screws



MODIFIED PARTS- ENGINEERING ASSISTANCE:

We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department. Contact Us

Jack Screws 3/16", 4.5mm, 5mm- Length: 3/16, 5mm- X Thread Length: .187 thru .750, 5mm thru 19mm. Unicorp Jackscrews D-Type Standoffs, Hex- 26 finishes, brass, aluminum, stainless steel, carbon steel. Stock in 3/16", 4.5mm, 5mm in various external thread lengths.

More Information on Thread Locking Products

ND® THREAD LOCKING PRODUCTS:

Thread locking products can be applied by Unicorp to Male-Female Standoffs, Jack Screws, Male-Male Standoffs, Captive Panel Screws, Thumb Screws and Shoulder Screws- this would also apply in some cases to Standoffs which are internally threaded.
